    DLM-107A Digital Length Meter

    The Model DLM-107 Digital Length Meter is designed to accurately measure fabric length (or other moving belt material), in feet or meters.

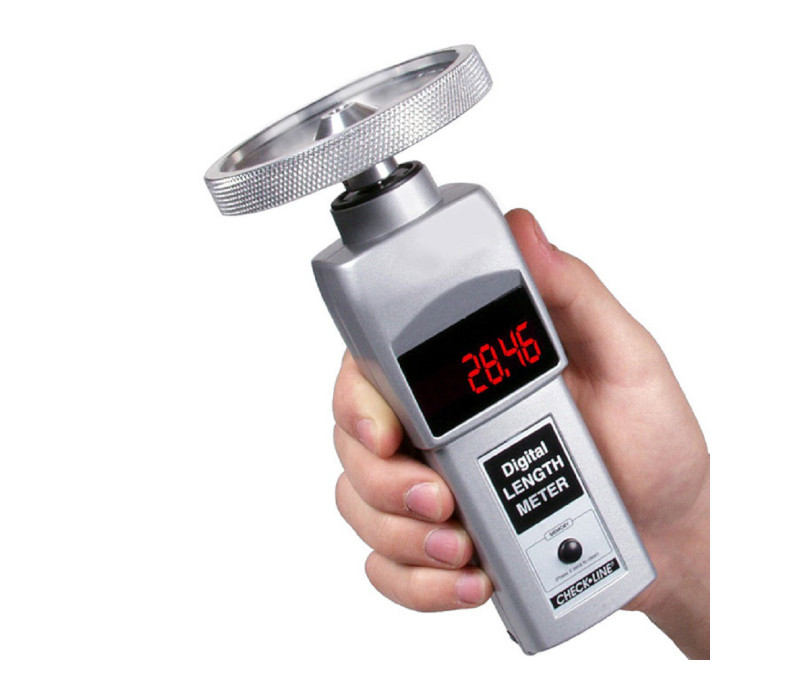

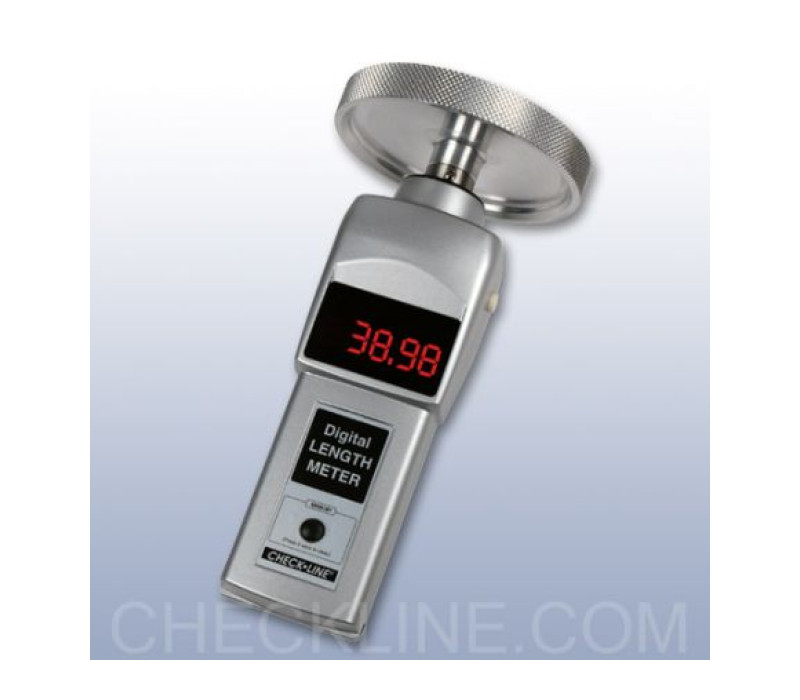

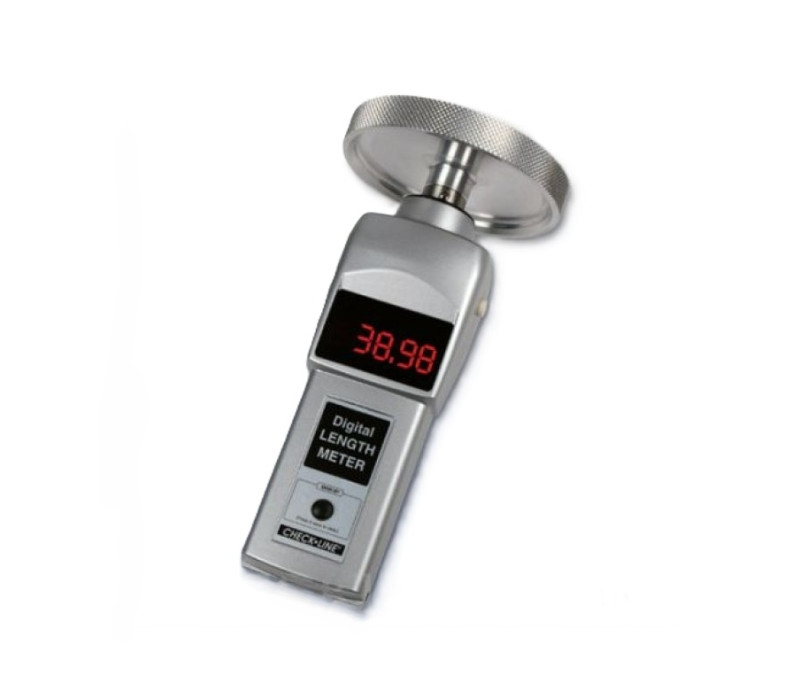

    NOTE: Shown with Optional Knurled Aluminum Wheel - LMA-2

    • Built-in memory for last, maximum, minimum and 10 separate readings
    • Rugged cast aluminum housing
    • Free NIST calibration certification

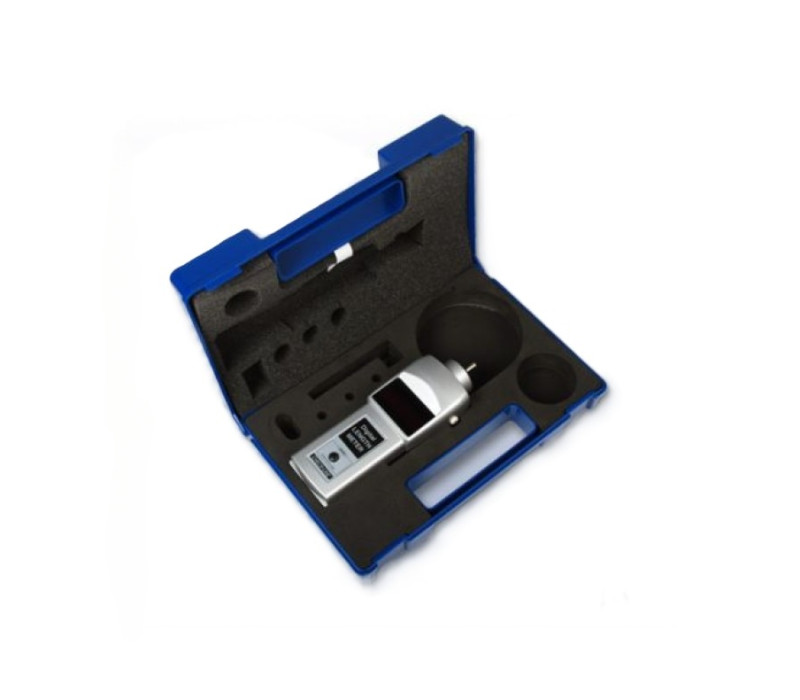

    Complete Kit

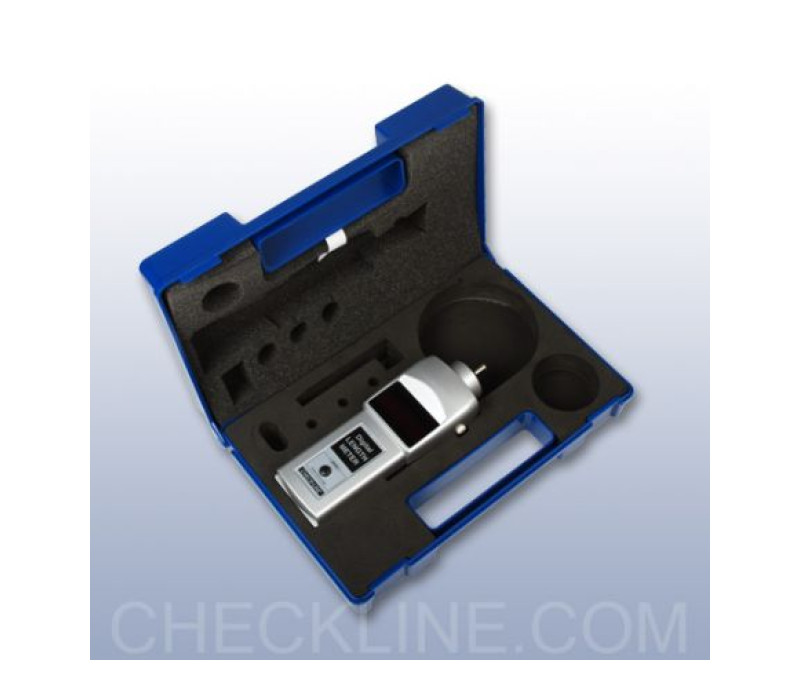

    All models are supplied as a complete kit including two AA batteries and an operating instruction manual - all supplied in a foam-fitted carrying case.

    MEASURING WHEEL NOT INCLUDED
    Measuring Range
    Range (METERS)Resolution
    00.005 – 99.995 0.005
    1,000.0 – 9,999.9 0.1
    10,000 – 99,999 1
    Display Range00.005 – 99.995 m (resolution: 0.005 m)
    100.00 – 999.99 m (resolution: 0.01 m)
    1000.0 - 9999.9 m (resolution: 0.1 m)
    10000 - 99999 m (resolution: 1 m)
    Accuracy±1% of indicated
    Measurement UnitsTotal Feet or Total Meters (optional)
    Memory System13 readings are stored in memory and retained for 5 minutes
    (last, max., min., and 10 measurements)
    Over-Range IndicatorFlashing numerals
    DetectionOptical coupler, 60 pulses/rev
    Update Time1 second (typical)
    BatteriesSize: 2 1.5 V AA
    Life: Approx. 65 hrs. (DLM-105A)
    Life: Approx. 40 hrs. (DLM-107A)
    Low Voltage IndicatorFlashing "LO BAT" display (DLM-105A)
    "B" display (DLM-107A)
    Operating Temp32° to 113° F (0 to 45° C)
    Weight0.9 pounds (400 grams)
    Dimensions7.3" L x 2.4" W x 1.8" H
    Warranty1 year

    Related Products

    Browse Related Products

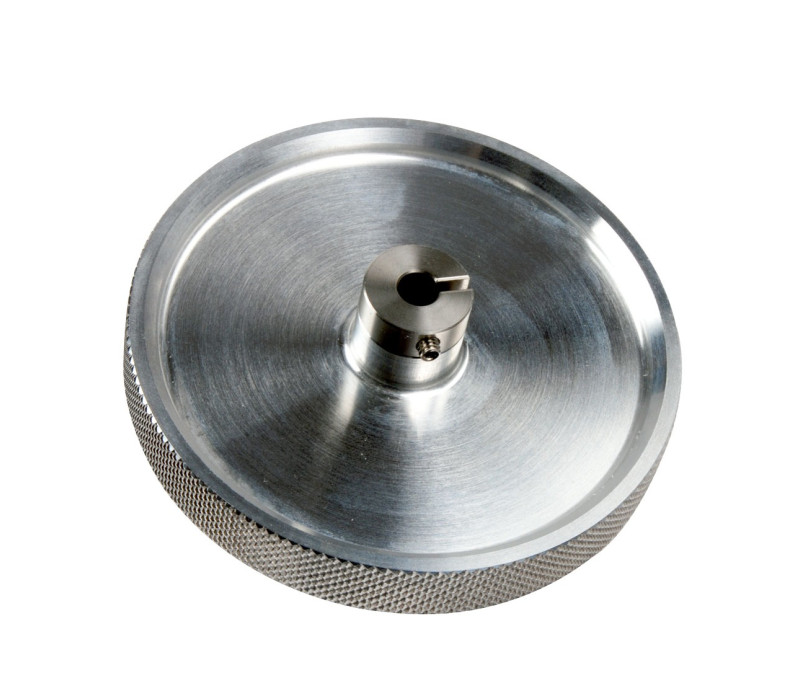

    LMA-3 12 in Circumference Knurled Aluminum Measuring Wheel

    LMA-3 12 in Circumference Knurled Aluminum Measuring Wheel

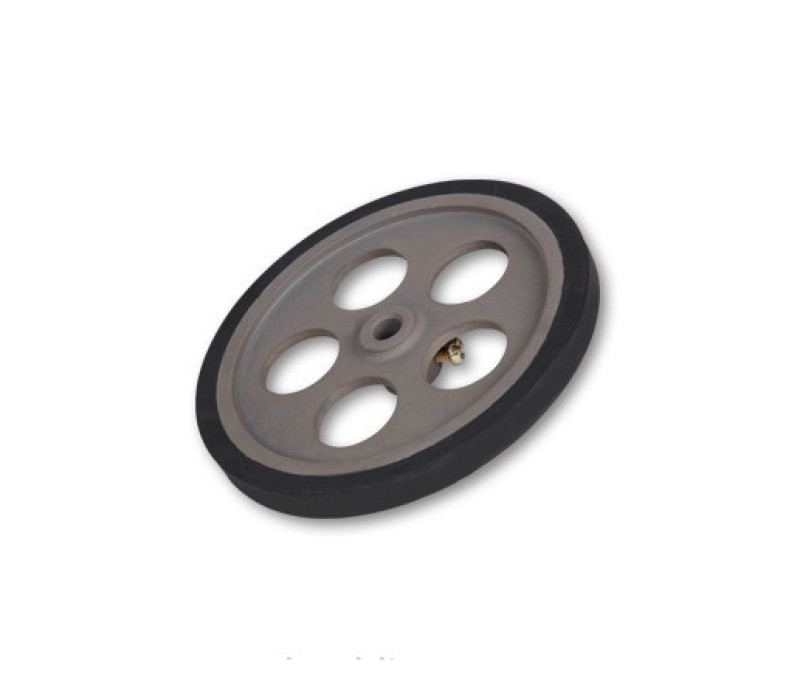

    DT12 12 inch Circumference Wheel

    DT12 12 inch Circumference Wheel

    Accessories

    Browse Accessories

    Li-Ion Rechargeable AA Batteries LI-ION Rechargeable AA Batteries
    Li-Ion Rechargeable AA Batteries LI-ION Rechargeable AA Batteries

    Buy Now

    Products
    Item Product Price  Quantity Action
    132513DLM-107A Digital Length Meter
    Accessories
    Item Product Price  Quantity Action
    139051NISTCAL - NIST Calibration Certificate For Contact Tachometer € 135,00
    126897DT12 Rubber Measuring Wheel with a circumference of 12 inches / 30,48 cm € 62,00
    130420LMA-3 Knurled Aluminum Measuring Wheel with a circumference of 12 inches / 30,48 cm
    139547Li-Ion Rechargeable AA Batteries - 4 pcs (with USB to USB-C cable) € 25,00

    All mentioned prices are excluding VAT & excluding shipment costs.
