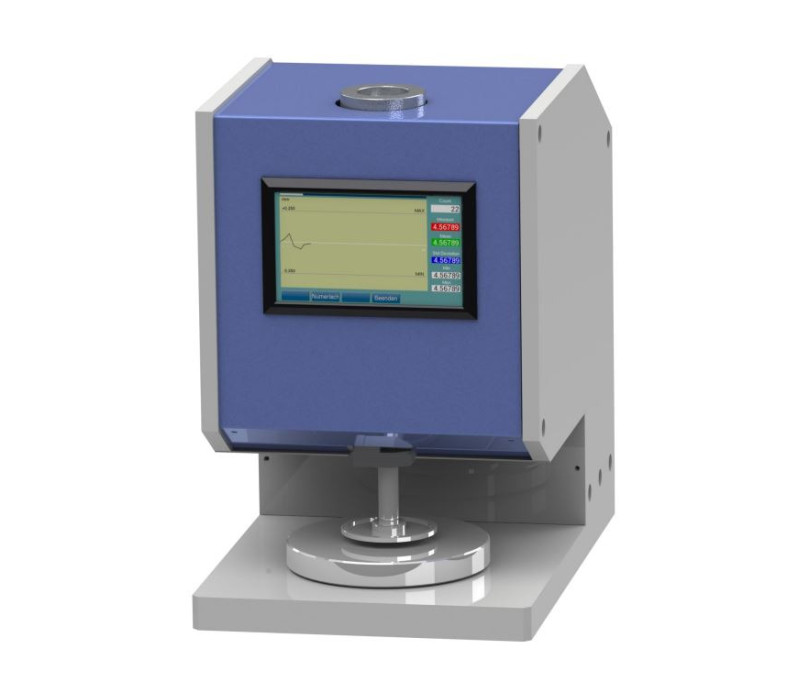

D-2010 Motorized Precision Material Thickness Gauge

D-2010 Motorized Precision Material Thickness Gauge

Name: D-2010 Motorized Precision Material Thickness Gauge
SKU: 127123

The D-2010 Precision Material Thickness Gauge has a stable and rigid base frame with an encapsulated, separate measuring block. And is a top choice if you appreciate high precision (up to 0.001 mm), easy operation, automatic processing and objective, reproducible measurement results.

The device can be adapted to the materials to be measured according to your requirements. Thus, the caliper surfaces, the caliper materials and the measurement pressures fit in exactly with the guidelines of ISO, EN, DIN or also with your own test regulations.

Common Standards
For textiles and non-woven textiles according to DIN EN ISO 5084 (measuring face 20 cm²/pressure 0.1 kPa and 1 kPa)

For fleece according to DIN EN ISO 9073-2 (measuring face 25 cm²/pressure 0.1 kPa and 0.5 kPa)

For geomaterials according to DIN EN ISO 964-1 (measuring face 25 cm²/pressure 2 kPa and 20 kPa, not 200 kPa)

The D-2010 device is also available with different measurement ranges:
Ranges 0 – 10 mm, 0 – 25 mm (or with the equivalents in inch, switchable).

With this instrument the most popular checking methods can be applied for textiles, felt, geomaterials, paper, floor coverings, leather, foils, rubber, plastic films etc.

The D-2010 has data outputs for the digital processing of the measurement results or for the transmission to a printer.

Price from € 7.597,00

Order now

Resolution 0.01 mm - standard, 0.001 mm - optional
(0.001 mm is standard for D-2010-P, D-2010-F)
Gauging depth (centre of the stamp) 110 mm
Illuminated graphic touch-screen with menu controlled operation (optionally in German or English)
Individual measurements as well as measurement series with every specified number of measurement cycles are possible

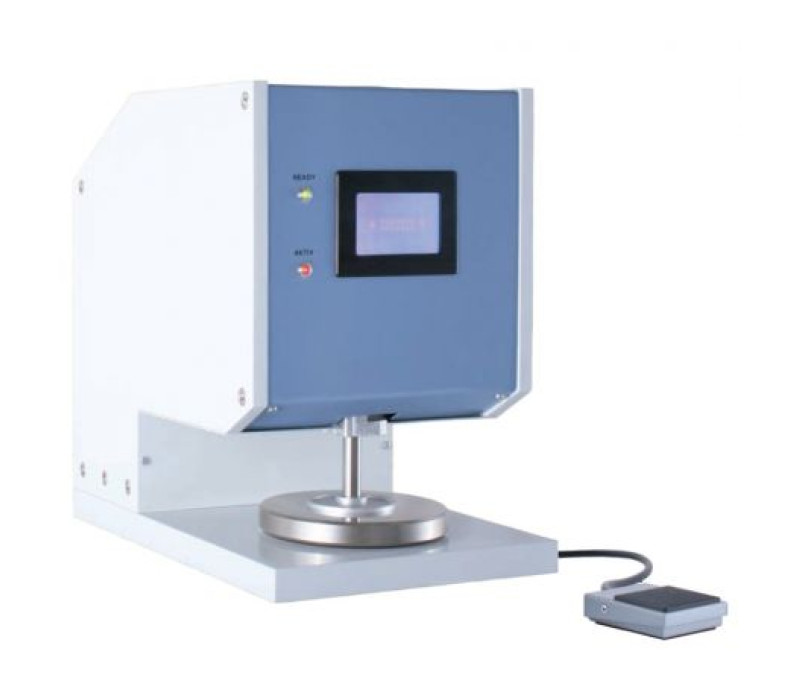

Footpedal is included
The automatic zero point control can be selected by pressing the key
Dwell times of 1 – 60 seconds are adjustable
Motor-driven calliper movement with steady lowering speed (standard 2.5 mm/s)
The measurement path can be preselected in order to save time
Digital interface
Always up-to-date and simultaneous display of the measurement value, the measurement cycle, the average value and the standard deviation
Includes Calibration Certificate
Selectable measuring units mm / inch
Separate measuring block, incased against outside external impacts, for highest accuracy and repeatability

Available models

Model	Standard	Application	Feeler dia. (mm)	Feeler area (cm²)	Pressure
D-2010-T	DIN EN ISO 5084	Textiles	50.42	20	0.1 kPa and 1 kPa
D-2010-V	DIN EN ISO 9073-2	Standard fleece	56.42	25	0.5 kPa
D-2010-G	DIN EN ISO 964-1	Geomaterials	56.42	25	2 kPa
D-2010-G1-3	DIN EN ISO 964-1	Geomaterials	56.42	25	2 kPa, 20 kPa and 200 kPa
D-2010-NW	DIN EN ISO 53855	Non-woven textiles	56.42 35.68	25 10	0.5 kPa, 1 kPa and 5 kPa
D-2010-P*	DIN EN ISO 53105	Paper	16	2	100 kPa
D-2010-HY*	DIN EN ISO 54540	Hygenic Paper	56.42	25	2 kPa
D-2010-L1	DIN EN ISO 53326 (out of date)	Leather	10	0.785	50 kPa
D-2010-L2	DIN EN ISO 2589	Leather	10	0.785	49.1 kPa
D-2010-Gi*		Rubber	36.68	10	5 kPa
D-2010-CF	ISO 2286-3	Rubber- or plastics-coated fabrics	12	1.13	2 kPa, 10 kPa and 24 kPa
D-2010-CF1	ISO 2286-3	Rubber- or plastics-coated fabrics	12	1.13	2 kPa, 5 kPa, 10 kPa and 24 kPa
			Feeler Calotte
D-2010-F*	DIN 53370	Foils	R 30 mm		0.5 N
D-2010-AB	DIN-EN 1849-2	Waterproofing sheets	10 mm	0.785	20 kPa
*Model D-2010-P, D-2010-HY, D-2010-Gi and D-2010-F have an resolution of 0.001mm Individual configurations to an required standard are available upon request.

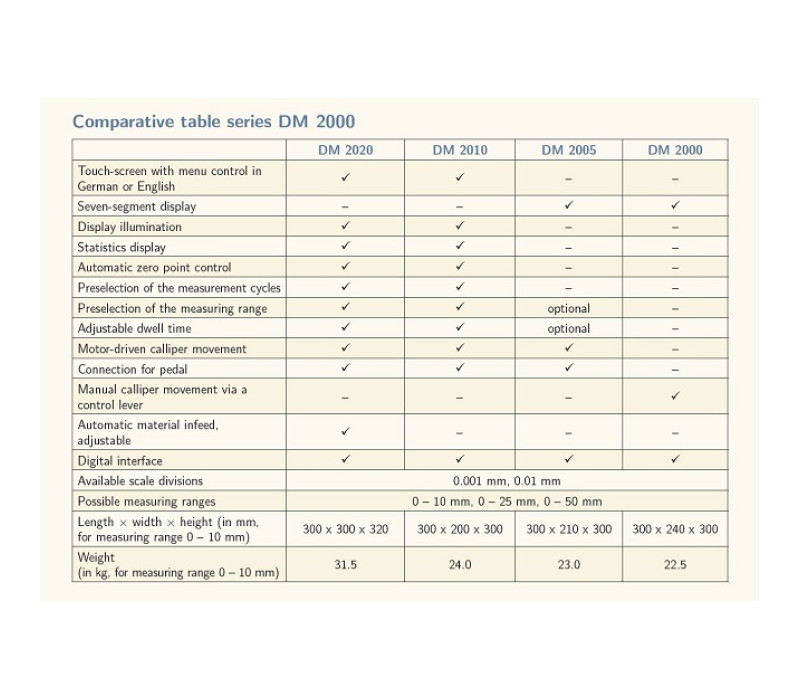

Comparative table series (#prodname:#)

	D-2020	D-2010	D-2005	D-2000
Touch-screen with menu control in German or English			-	-
Seven-segment display	-	-
Display illumination			-	-
Statics display			-	-
Automatic zero point control			-	-
Preselection of the measurement cycles			-	-
Preselection of the measuring range			optional	-
Adjustable dwell time			-	-
Motor-driven calliper movement				-
Connection for pedal				-
Manual calliper movement via a control lever	-	-	-
Automatic material infeed, adjustable		-	-	-
Digital interface
Available scale divisions	0,001 mm, 0,01 mm
Possible measuring ranges	0 – 10 mm, 0 – 25 mm, 0 – 50 mm
Length × width × height (in mm, for measuring range 0 – 10 mm)	300 * 300 * 320	300 * 200 * 300	300 * 210 * 300	300 * 240 * 300
Weight (in kg, for measuring range 0 – 10 mm)	31,5	24,0	23,0	22,5

Options

Code R	Higher resolution 0.001 instead of 0.01 mm (0.001 mm is standard for D-2010-P, D-2010-F)
Code E	Extended measuring range 0 - 25 mm
Code E2	Extended measuring range 0 - 50 mm

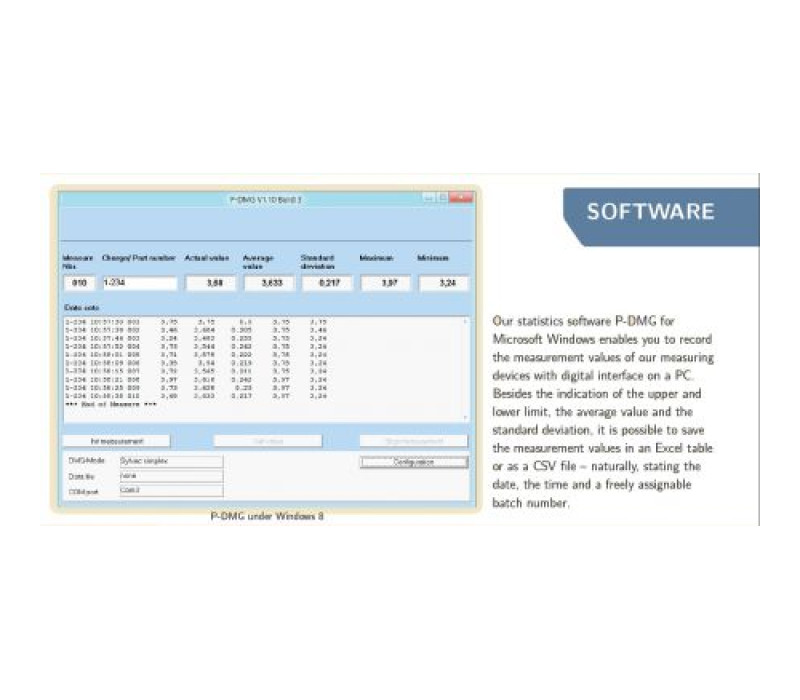

Code S	Software & Cable
DKD-Cal	Calibration report from a DKD authorized laboratory

Special models can be requested!

Comparison Chart D-2000 Series

Measuring Range	0 - 10 mm, (25 mm optional, Code E)
Resolution	0.01 or 0.001mm depending on configuration
Accuracy	± 0,0008 mm at 0,0001 resolution ± 0,005 mm at 0,001 resolution ± 0,01 mm at 0,01 resolution
Depth of jaw	160 mm
Measuring system	Capacitive -> Sylvac
Display	Graphic display Touchscreen
Measuring unit	mm or inch (switchable)
Stroke in mm	Level 1 = 2.0, level 2 = 3.5, level 3 = 5.0, level 4 = 6.5 and level 5 = 10.5 mm (full measuring range)
Dwell time	1 - 60 seconds
Number of measuring	Up to 50 per test series
Feeler shape and surface pressure	According international standards DIN, EN and ISO
Output signal	RS 232 for printer and USB for PC
Temperature range	10 - 45 °C
Air humidity	Max. 85 % r.H
Dimensions	300 x 200 x 300 mm (LxWxH)
Weight, net (gross)	24 kg

Products

Item	Product	Price
134448	D-2010-T Motorized Material Thickness Gauge for Textiles	€ 7.597,00
134449	D-2010-V Motorized Material Thickness Gauge for Fleece	€ 7.597,00
134450	D-2010-G1-2 Motorized Material Thickness Gauge for Geomaterials
134451	D-2010-NW Motorized Material Thickness Gauge for Non-woven	€ 7.828,00
134452	D-2010-P Motorized Material Thickness Gauge for Paper	€ 8.006,00
134453	D-2010-Hy Motorized Material Thickness Gauge for Hygenic Paper	€ 8.006,00
134454	D-2010-L Motorized Material Thickness Gauge for Leather	€ 7.901,00
134455	D-2010-Gi Motorized Material Thickness Gauge for Rubber	€ 7.597,00
134456	D-2010-F Motorized Material Thickness Gauge for Foils	€ 8.027,00

Accessories

Item	Product	Price	Quantity	Action
133155	D-CAL- Dakks accredited certificate	€ 128,00
133578	D-SOFT-Basic Software for stationary thickness gauges	€ 177,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
