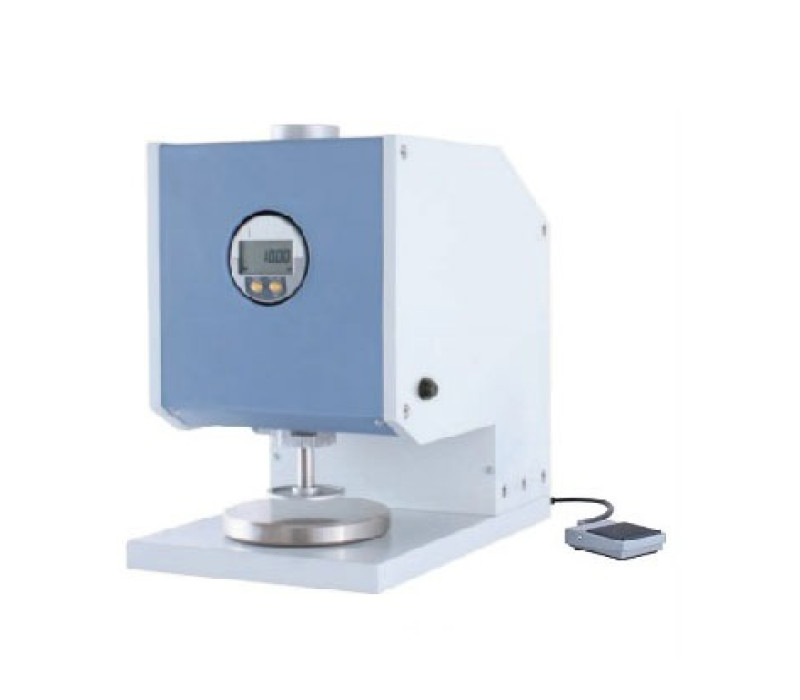

D-2005 Motorized Precision Material Thickness Gauge

D-2005 Motorized Precision Material Thickness Gauge

Name: D-2005 Motorized Precision Material Thickness Gauge
SKU: 127125

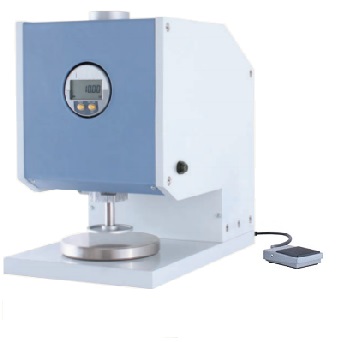

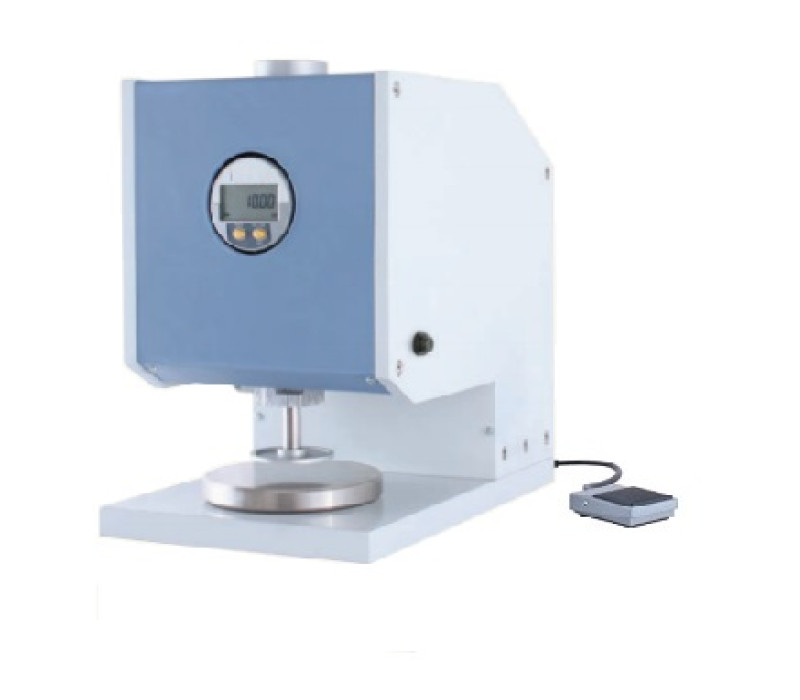

The D-2005 Motorized Precision Material Thickness Gauge has a stable and rigid base frame with an encapsulated, separate measuring block. And is a top choice if you appreciate high precision (up to 0.001 mm), easy operation, automatic processing and objective, reproducible measurement results.

The device can be adapted to the materials to be measured according to your requirements. Thus, the caliper surfaces, the caliper materials and the measurement pressures fit in exactly with the guidelines of ISO, EN, DIN or also with your own test regulations.

Common Standards
For textiles and non-woven textiles according to DIN EN ISO 5084 (measuring face 20 cm²/pressure 0.1 kPa and 1 kPa)

For fleece according to DIN EN ISO 9073-2 (measuring face 25 cm²/pressure 0.1 kPa and 0.5 kPa)

For geomaterials according to DIN EN ISO 964-1 (measuring face 25 cm²/pressure 2 kPa and 20 kPa, not 200 kPa)

The D-2005 device is also available with different measurement ranges:
Ranges 0 – 10 mm, 0 – 25 mm and 0 – 50 mm (or with the equivalents in inch, switchable).

With this instrument the most popular checking methods can be applied for textiles, felt, geomaterials, paper, floor coverings, leather, foils, rubber, plastic films etc.

This alternative to the D-2010 does not have an illuminated, menu controlled touch-screen with its statistics functions, instead it is equipped with a dial gauge with seven-segment display and individual keys. Of course, there is a data output for the digital processing of the measurement results.

Price from € 5.625,00

Order now

Rigid housing frame
Separate measuring block, encased against outside external impacts, for highest accuracy and repeatability
Optional: Preselection of the measuring range
Optional: Adjustable dwell time
Footpedal included
Switch-selectable measuring units mm / inch

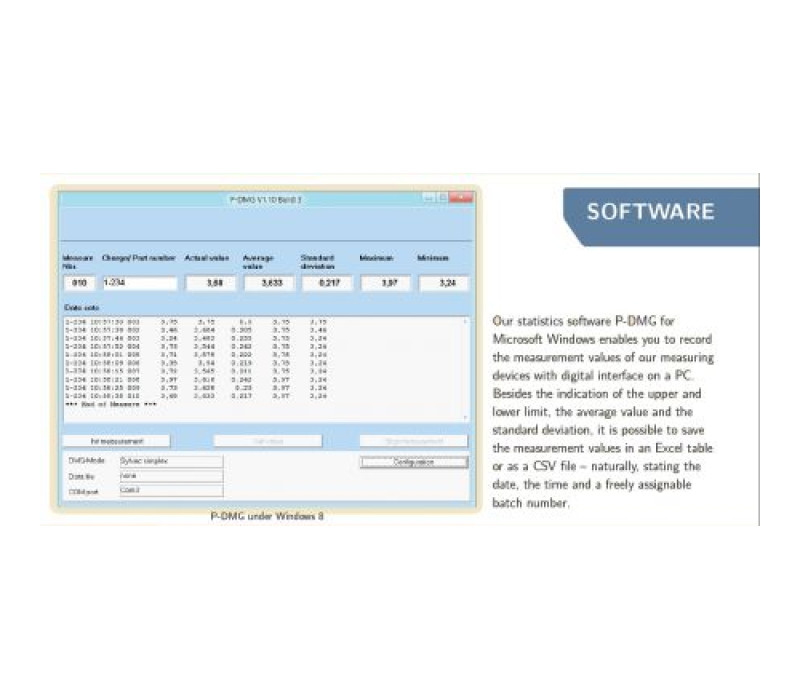

Optional: software for data transfer and analysis - Part No. SW-50
Motor-driven calliper movement
Seven-segment display
Resolution 0.01 mm - standard, 0.001 mm - optional
(0.001 mm is standard for D-2005-P, D-2005-F)

Available models

Model	Standard	Application	Feeler dia. (mm)	Feeler area (cm²)	Pressure
D-2005-T	DIN EN ISO 5084	Textiles	50.42	20	0.1 kPa and 1 kPa
D-2005-V	DIN EN ISO 9073-2	Standard fleece	56.42	25	0.5 kPa
D-2005-G	DIN EN ISO 964-1	Geomaterials	56.42	25	2 kPa
D-2005-G1-3	DIN EN ISO 964-1	Geomaterials	56.42	25	2 kPa, 20 kPa and 200 kPa
D-2005-NW	DIN EN ISO 53855	Non-woven textiles	56.42 35.68	25 10	0.5 kPa, 1 kPa and 5 kPa
D-2005-P*	DIN EN ISO 53105	Paper	16	2	100 kPa
D-2005-HY*	DIN EN ISO 54540	Hygenic Paper	56.42	25	2 kPa
D-2005-L1	DIN EN ISO 53326 (out of date)	Leather	10	0.785	50 kPa
D-2005-L2	DIN EN ISO 2589	Leather	10	0.785	49.1 kPa
D-2005-Gi*		Rubber	36.68	10	5 kPa
D-2005-CF	ISO 2286-3	Rubber- or plastics-coated fabrics	12	1.13	2 kPa, 10 kPa and 24 kPa
D-2005-CF1	ISO 2286-3	Rubber- or plastics-coated fabrics	12	1.13	2 kPa, 5 kPa, 10 kPa and 24 kPa
			Feeler Calotte
D-2005-F*	DIN 53370	Foils	R 30 mm		0.5 N
D-2005-AB	DIN-EN 1849-2	Waterproofing sheets	10 mm	0.785	20 kPa
*Model D-2005-P, D-2005-HY, D-2005-Gi and D-2005-F have an resolution of 0.001mm Individual configurations to an required standard are available upon request.

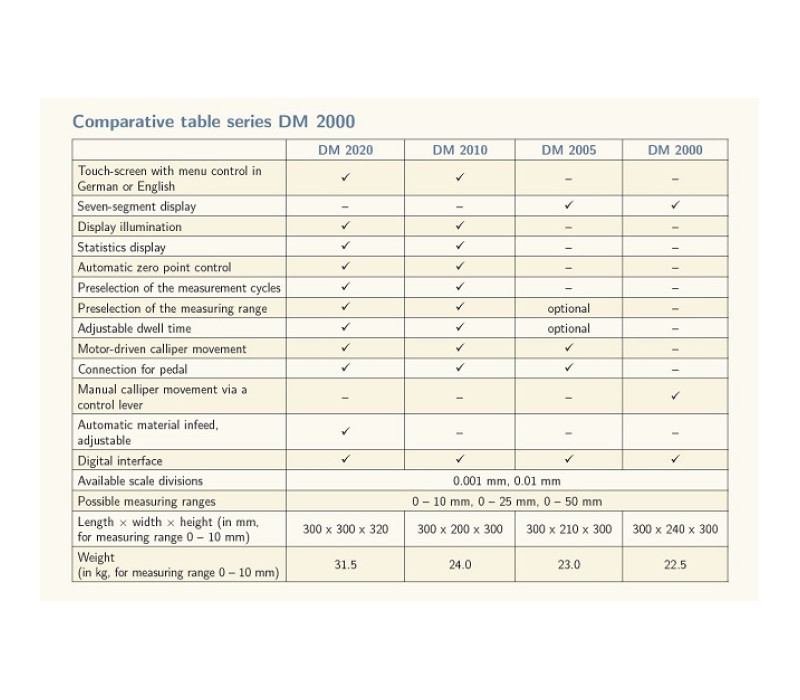

Comparative table series (#prodname:#)

	D-2020	D-2010	D-2005	D-2000
Touch-screen with menu control in German or English			-	-
Seven-segment display	-	-
Display illumination			-	-
Statics display			-	-
Automatic zero point control			-	-
Preselection of the measurement cycles			-	-
Preselection of the measuring range			optional	-
Adjustable dwell time			-	-
Motor-driven calliper movement				-
Connection for pedal				-
Manual calliper movement via a control lever	-	-	-
Automatic material infeed, adjustable		-	-	-
Digital interface
Available scale divisions	0,001 mm, 0,01 mm
Possible measuring ranges	0 – 10 mm, 0 – 25 mm, 0 – 50 mm
Length × width × height (in mm, for measuring range 0 – 10 mm)	300 * 300 * 320	300 * 200 * 300	300 * 210 * 300	300 * 240 * 300
Weight (in kg, for measuring range 0 – 10 mm)	31,5	24,0	23,0	22,5

Options

Code R	Higher resolution 0.001 instead of 0.01 mm (0.001 mm is standard for D-2005-P, D-2005-F)
Code E	Extended measuring range 0 - 25 mm
Code E2	Extended measuring range 0 - 50 mm
Code D	Adjustable dwell time
Code D2	Adjustable dwell time & measurement range
Code P	External power supply of the display
DKD-Cal	Calibration report from a DKD authorized laboratory
Code S	Software & Cable

Special models can be requested!

Measuring Range	0 - 10 mm, (25 mm optional, Code E)
Resolution	0,001 mm
Accuracy	± 0,0008 mm at 0,0001 resolution ± 0,005 mm at 0,001 resolution ± 0,01 mm at 0,01 resolution
Depth of jaw	160 mm
Measuring system	Capazitive -> Sylvac
Display	LCD 6 digit, 8.5 mm high
Measuring unit	mm or inch
Preselection of the measuring range	Optional
Feeler shape and surface pressure	According international standards DIN, EN and ISO
Adjustable dwell time	Optional
Output signal	RS 232 for printer and USB for PC
Temperature range	10 - 45 °C
Air humidity	Max. 85 % r.H
Dimensions	300 x 210 x 300 mm (LxWxH)
Weight, net (gross)	23 kg

Products

Item	Product	Price
134473	D-2005-T Material Thickness Gauge for Textiles	€ 5.625,00
134474	D-2005-V Material Thickness Gauge for Standard Fleece	€ 5.625,00
134475	D-2005-G Precision Material Thickness Gauge for Geotextiles	€ 5.780,00
134476	D-2005-NW Material Thickness Gauge for Non-woven Textiles	€ 5.854,00
134477	D-2005-P Precision Material Thickness Gauge for Paper (0.001mm)	€ 6.085,00
134478	D-2005-Hy Precision Material Thickness Gauge for Hygienic Paper	€ 6.085,00
134479	D-2005-L - Leather thickness meter - DIN EN ISO 53326	€ 5.948,00
134480	D-2005-Gi Precision Material Thickness Gauge for Rubber	€ 5.822,00
134481	D-2005-F Material Thickness Meter for Foils	€ 6.515,00

Accessories

Item	Product	Price	Quantity	Action
133155	D-CAL- Dakks accredited certificate	€ 128,00
133578	D-SOFT-Basic Software for stationary thickness gauges	€ 177,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
