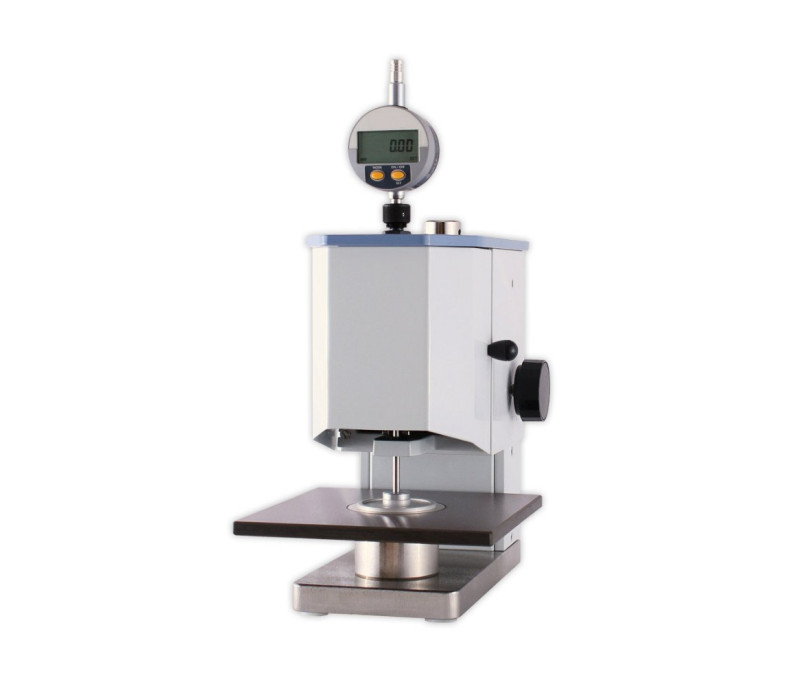

D-1000 Mechanical material thickness gauge for ASTM, DIN & ISO standards
D-1000 Mechanical material thickness gauge for ASTM, DIN & ISO standards
The D-1000 material thickness gauge is a stationary precision thickness gauge, suitable for a variety of materials including textiles, fabrics, felt, fiber composites, geomaterials, floor coverings, leather, foils, rubber and much more.We offer various preconfigured models, whose test stamp geometry and feeler correspond to the specified DIN, ISO and ASTM standards
The D-1000 material thickness gauge comes in 3 distinct measurement ranges:
Standard: 0 - 10 mm
Optional: E25: 0 - 25mm
Optional: E50: 0 - 50mm
Resolution: 0.01 or 0.001mm
Standards covered by our standard models include:
DIN EN ISO 5084
DIN EN ISO 9073-2
DIN EN ISO 9863-1
DIN EN ISO 54540
DIN EN ISO 2589
DIN 53370
DIN EN 1849-2
We can also supply customer-specific models based on the test stamp geometry and measuring force you require. Interchangeable weights and test stamps also allow for a combination of different standards in one D-1000 model.
Please contact us for advice on your specific application.
Price from € 3.827,00
