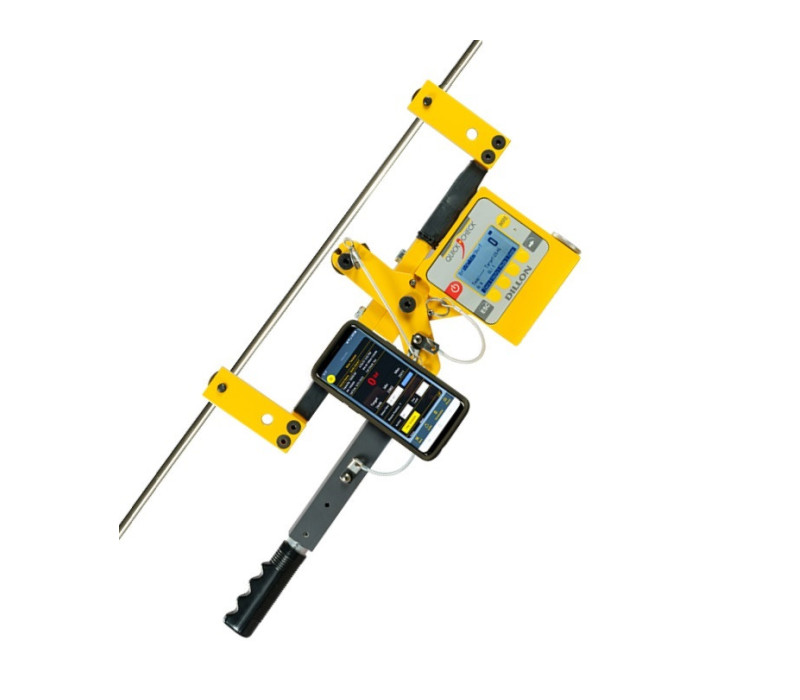

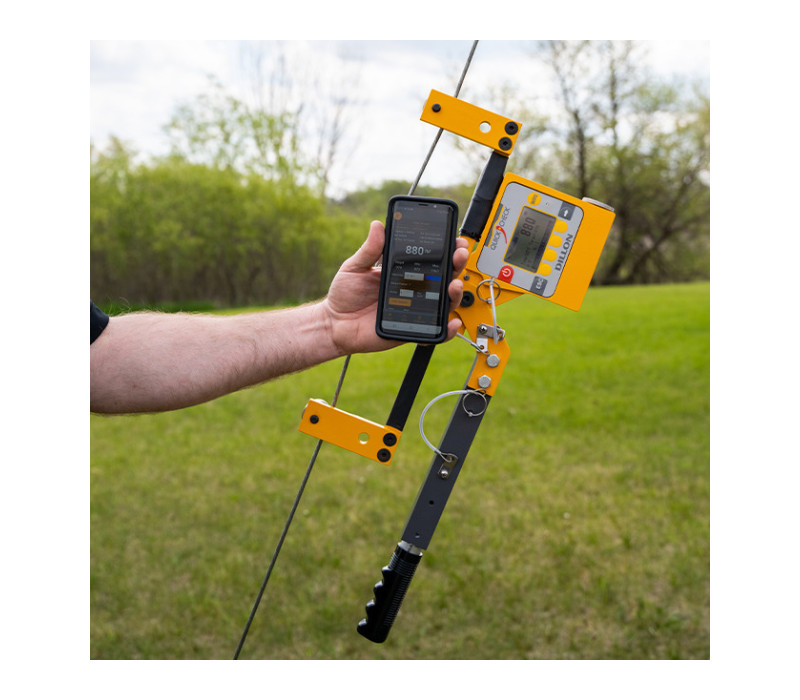

CTM2-T Cell Tower Shunt Meter

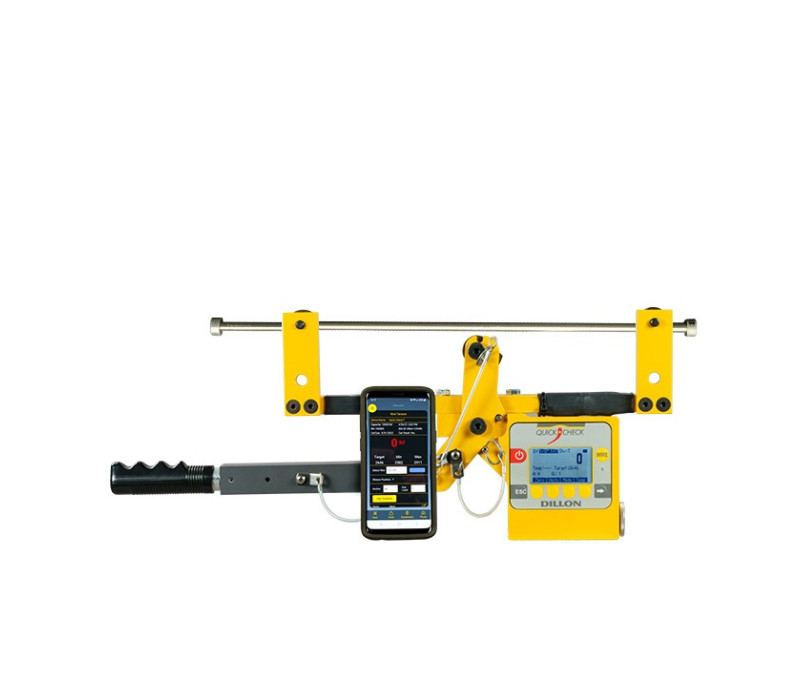

CTM2-T with calibration rod

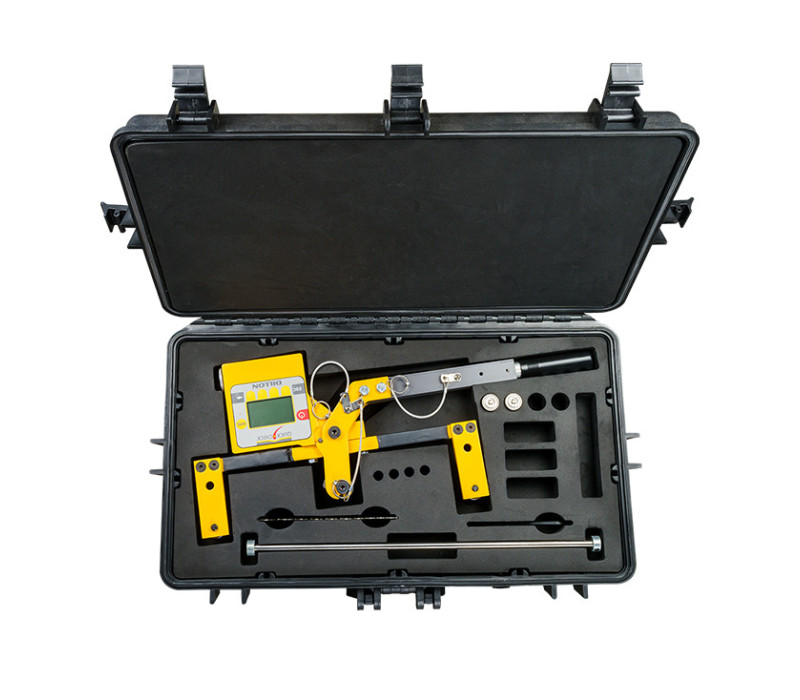

CTM2-T - kit

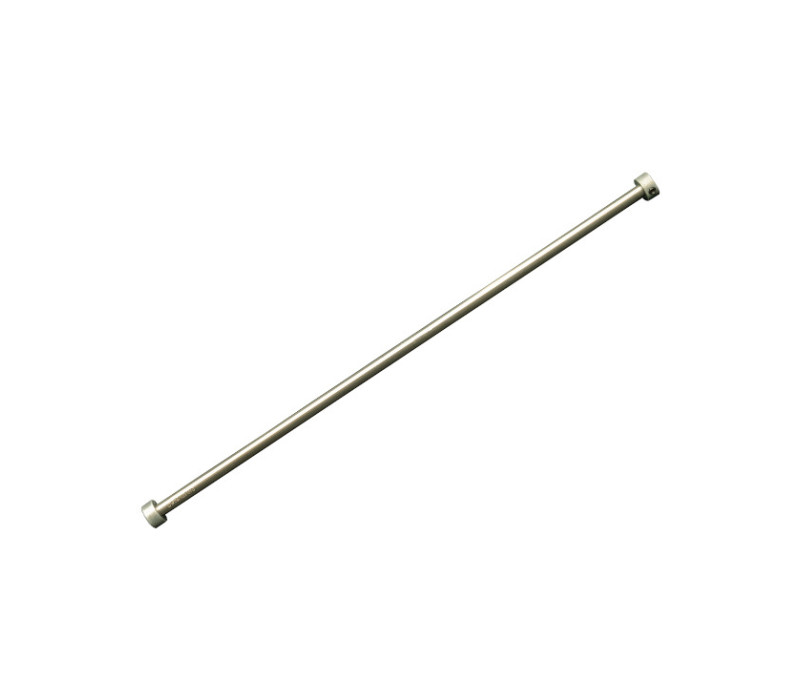

Calibration rod

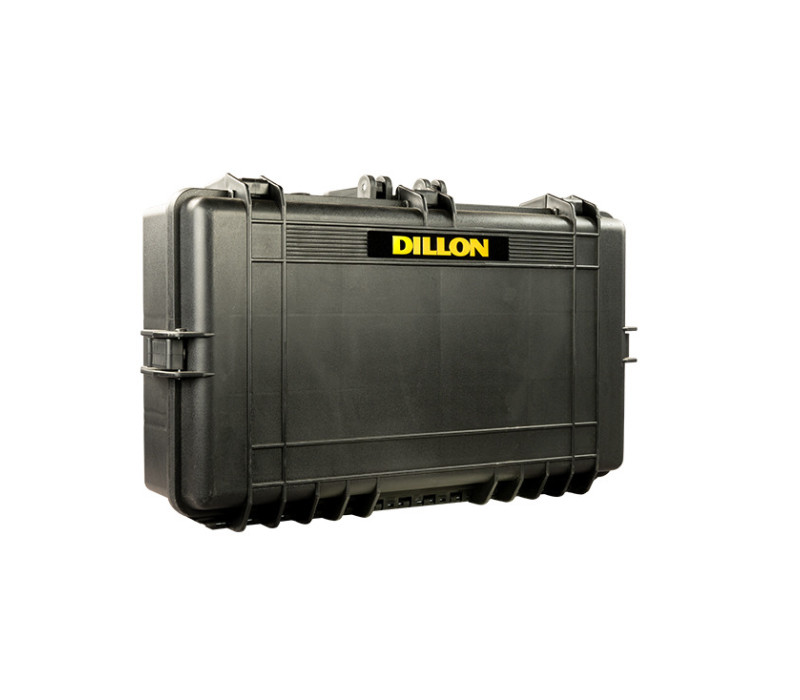

Heavy Duty carrying case

*CTM2-T- comes without phone

CTM2-T Cell Tower Shunt Meter

Custom designed for the cell tower industry.

2 Models available

CTM2-10.000-T- 4500 kg/ 45 kN/ 10000 lb without calibrations
CTM2-10.000-T-PP- 4500 kg/ 45 kN/ 10000 lb with pre-installed 16 tower wire calibrations

The Quick Check-T measures cables with a diameter from 4,75 mm to 25,4mm

Reduces time on site

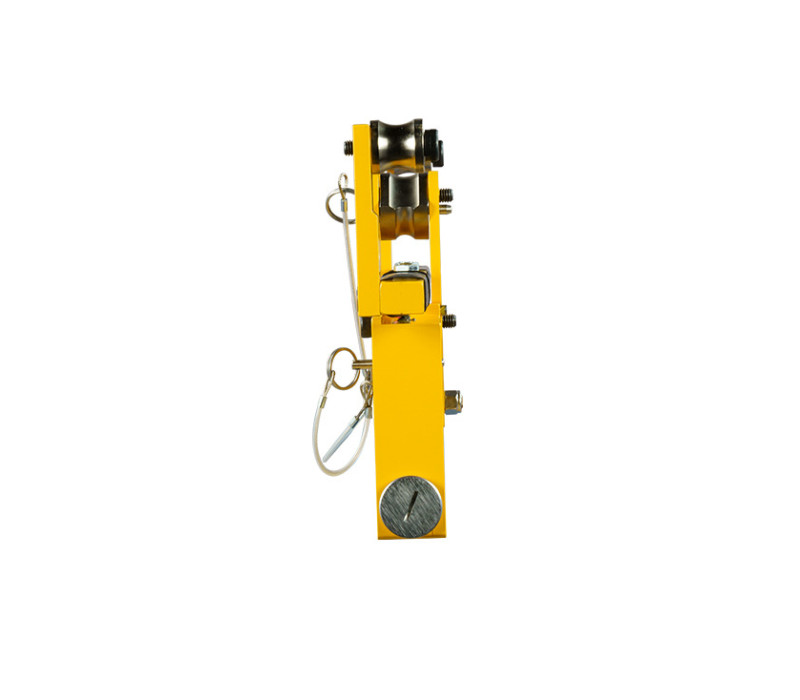

No changing sheaves! – One sheave, two positions - just rotate
No charts to figure out target tensions
No need for whiteboards! – All info is on the display and on the app

Reduces time off site

Automatic site form completion with images
Send completed reports directly from the app

What's new with this CTM2-T:

Bluetooth® enabled

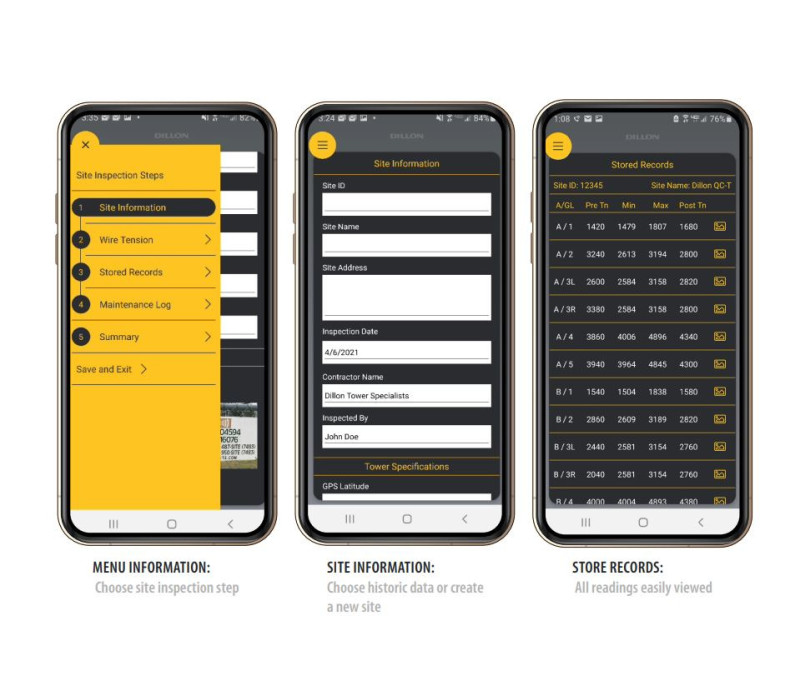

Custom mobile app
Multi-wire single sheave

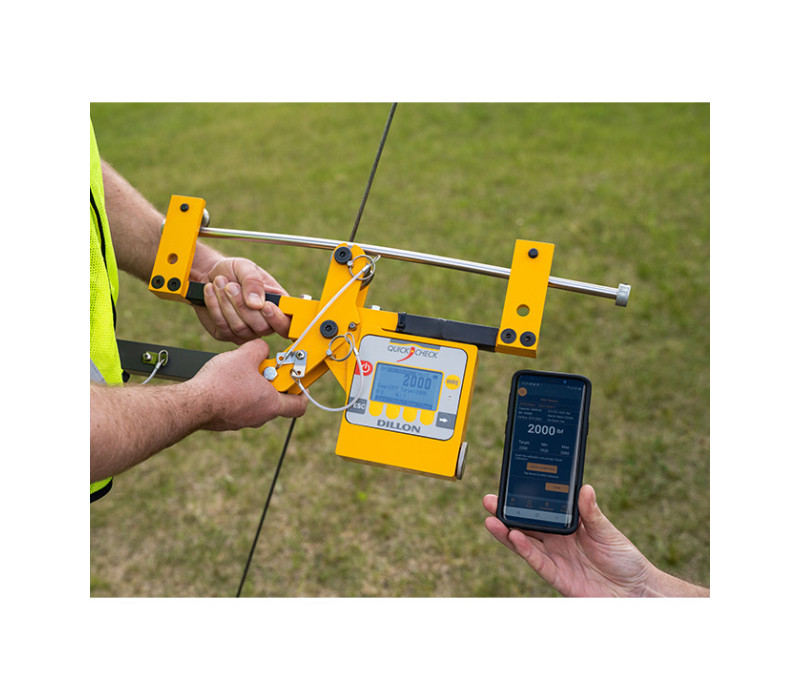

Calibration check rod
Automatic report generation with photos
Automatic target tension calculations
Ability to capture pre and post tension readings
Inbuilt image capture

MODEL:

CTM2-10000-T
CTM2-10000-T-PP

Order now

Communication: Bluetooth®
Uses C batteries and has long life between changes
Highly visible yellow finish
Easy to use soft-key interface
Easy-to-read backlit display with full-text prompts
Telescoping handle engages meter quickly with minimal effort
Accommodates a wide range of wire sizes and styles
CE Certified
User-selected units of measure of Lbf, Kgf or Newtons
Measures cables with a diameter from 4,75 mm to 25,4mm

The CTM2-T is supplied as a complete kit including:

CTM2-T - Cable Tension Meter
1 Multiple CableSheave
Instruction manual (CD)
Calibration Rod
Heavy duty carrying case.

Note: The calibration certificates must be ordered separately !!

Capacity	CTM2-T - 4500 kg/ 45 kN/ 10000 lb
Resolution (Selectable)	Low 20Kg - Med 10Kg - High 15Kg
Units of Measure	Kgf, Newtons & Lbf
Wire sizes	Ø4,75 to Ø25,4 mm
Accuracy	±3% Full Scale
Number of calibrations	Total of 20 wire calibrations with first being allocated to the calibration check rod
Display	Bluetooth App and in-built display on device
Backlight	Yes (configurable intensity and timer)
Communications	Bluetooth®
Report Generation	Utilize Bluetooth App to generate custom cell tower site report
Image Capture	Yes, via Bluetooth App
Date and Time	Yes
GPS	Yes
Calibration Reminder	Yes
AZT (Automatic Zero Tracking) & Filtering	Configurable AZT and Filtering
Power	2x C batteries
Battery Life with backlight off	10Hz = over 250 hrs continuous 100Hz = over 100 hrs continuous
Pass/Fail Tensioning Mode	Yes
Tower Mode	Generates target tension data and stores pre & post tension readings per anchor and leg. Compiled within the site report. Exported via email.
Weight	5 kg
Shipping Weight	12 kg
Warranty	2 Years

Products

Item	Product	Price	Quantity	Action
137996	CTM2-10000-T Cable Tension Meter - Cell Tower	€ 3.130,00
137997	CTM2-10000-T-PP Cable Tension Meter - Cell Tower	€ 5.050,00

Accessories

Item	Product	Price	Quantity	Action
130410	CTM2-ADD-CAL - Additional Calibration	€ 180,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
