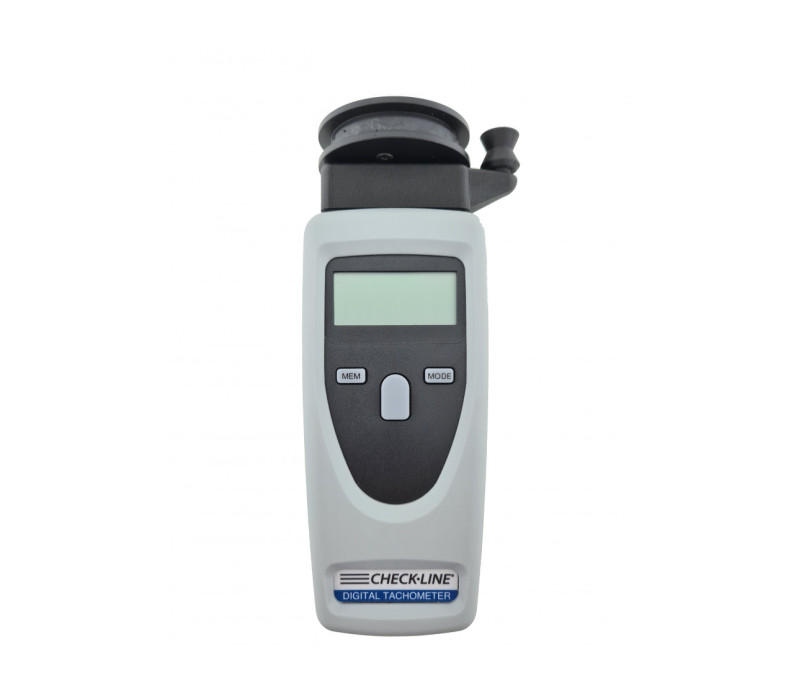

CS-20-SL Heavy Duty Speed, Length Contact and Non-Contact Digital Tachometer

CS-20-SL Heavy Duty Speed, Length Contact and Non-Contact Digital Tachometer

Name: CS-20-SL Heavy Duty Speed, Length Contact and Non-Contact Digital Tachometer
SKU: 126017
Price: 549.00 EUR
Availability: InStock

The CS-20-SL Combination Hand-Held Digital Tachometer combines the best features of both contact and non-contact models to accurately measure RPM, surface speed and length.

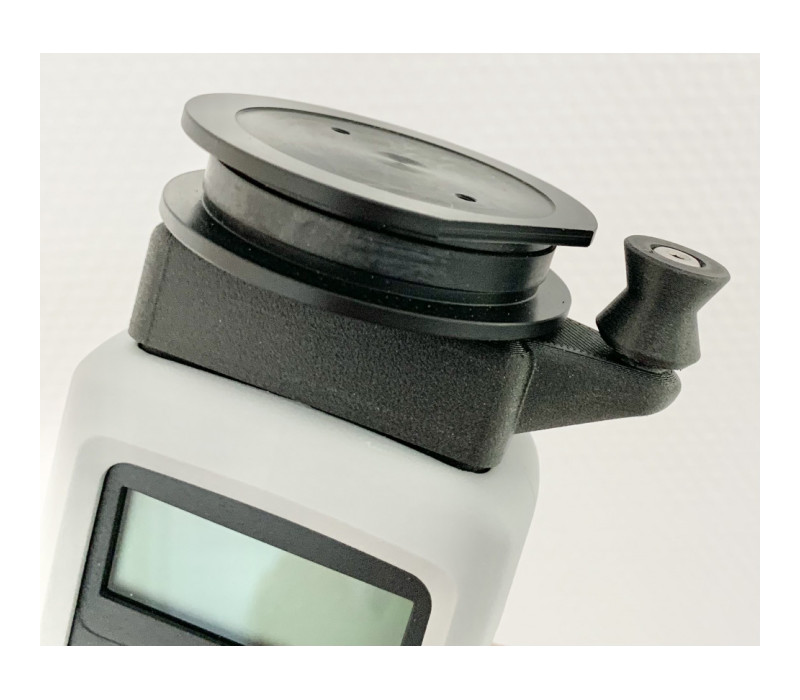

This model the measuring wheel has additonal flanges to simplify centering the cable on the measuring wheel.

When the non-contact mode is used, rotational speed (RPM) is measured using a visible beam of light. The CS-20-SL can be up to 24 inches away from the small piece of reflective tape that is affixed to the rotating element. When operating in the contact mode, the speed is sensed by directly contacting rotating device using one of the contact adapters supplied with the instrument.

The CS-20-SL's rugged construction, portability and outstanding features make it an perfect choice for use in maintenance processes. It is ideal for machine operators in a wide variety of machinery and material handling applications.

In various applications where surface or linear speeds are to be measured, the universal wheel is used. The CS-20-SL can also be used to measure the accumulated total of continuously running material such as paper, wire being wound on a spool, or to check the calibration of on-line counters and totalizers.

€ 549,00

Order now

Built-in memory stores maximum, minimum, average and last reading for recall to the display
NIST Certification included at no additional cost
Accuracy of 0.02% with a resolution of 0.01 RPM
Measures speeds from as low as 1.00 rpm up to 99,999 rpm
Molded Rubber Shell Provides Additional Physical & Environmental Protection
Can be set for use with 2 optional-sized surface speed wheel (6 inch or 12 inch)
Ideal for measuring speed and length of yarn, fibre and wire

The CS-20-SL kit includes:

Tachometer
Slide-In Contact Adapter
Cone Tip Adapter

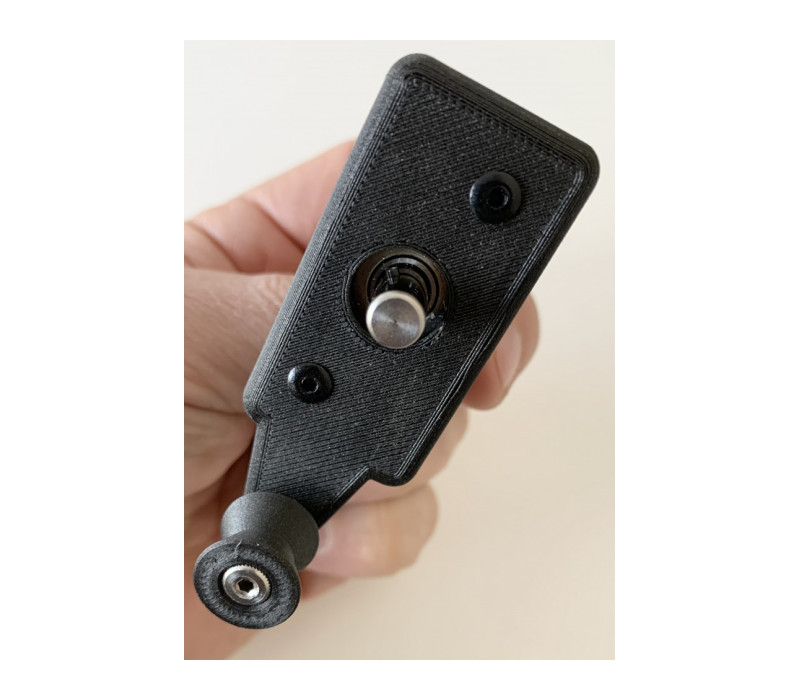

6" CS-20-roller with flanges
Reflective Tape
Two (2) AA Batteries (1.5 V) and Operating Instruction Manual
Foam-fitted hard-plastic Carrying Case.

Units of Measure Indicators show the units of measure, selected by the user.

Contact Indicator shows if contact or non-contact operation is selected.

On-Target Indicator confirms that the measurements are reliable.

Low Battery Indicator alerts the operator if the batteries need replacement.

Memory Indicators are illuminated when the maximum, minimum, average and last readings are recalled to the display for viewing.

RPM:	Non-Contact: 1.00 - 99,999 rpm Contact: 1.00 - 19,999 rpm
Surface Speed:	0.30 - 6,500 feet/min 0.10 - 1,999 meters/min 4.0 - 78,000 inches/min
Length:	0.01 - 99,999 feet 0.02 - 99,999 meters 1.0 - 99,999 inches
Resolution:	0.01 from 0 - 100 0.1 from 100 - 1,000 1 from 1000 - 99,999
Accuracy:	± 0.02% of reading or 1 digit
Display:	5 - Digit LCD, 10mm high
Decimal Point:	Automatic
Memory System:	Maximum, minimum, and last reading (retained in memory for the life of the batteries)
Measurement System:	Non-Contact: Visible LED light beam Contact: Contact adapter
Engineering Units:	RPM: RPM Surface Speed: Ft/min, inch/min & meters/min Length: Feet, inches, meters
Sensing Distance:	Up to 24 inches (60 cm)
Display Update Time:	0.5 seconds or one measuring
Auto Power Off:	After 30 seconds of non-use (minimum, maximum and last reading retained in memory)
Max. Cable Diameter:	8mm
Battery Life:	40 hours continuous use
Weight:	6 ounces (170 grams)
Housing Material:	ABS Plastic housing with removable protective rubber shell
Operating Temperature:	32 to 122º F (0 to 50º C)
Storage Temperature:	-4 to 150º F (-20 to 70º C)
Accessories included:	Contact adapter, cone tip, universal surface speed wheel, reflective tape, operating instructions and foam-fitted, hard plastic carrying case
Optional Accessories:	Shaft extension, 3.15 inches (80 mm)
Warranty:	2 years

Products

Item	Product	Price	Quantity	Action
126903	CS-20-SL Cable Tachometer	€ 549,00

Accessories

Item	Product	Price
126135	10009S - Reflective Tape 4 Sheets 35 1/2	€ 15,00
133222	CS-20-SPAREWHEEL Roller with Flanges	€ 98,00
139547	Li-Ion Rechargeable AA Batteries - 4 pcs (with USB to USB-C cable)	€ 25,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
