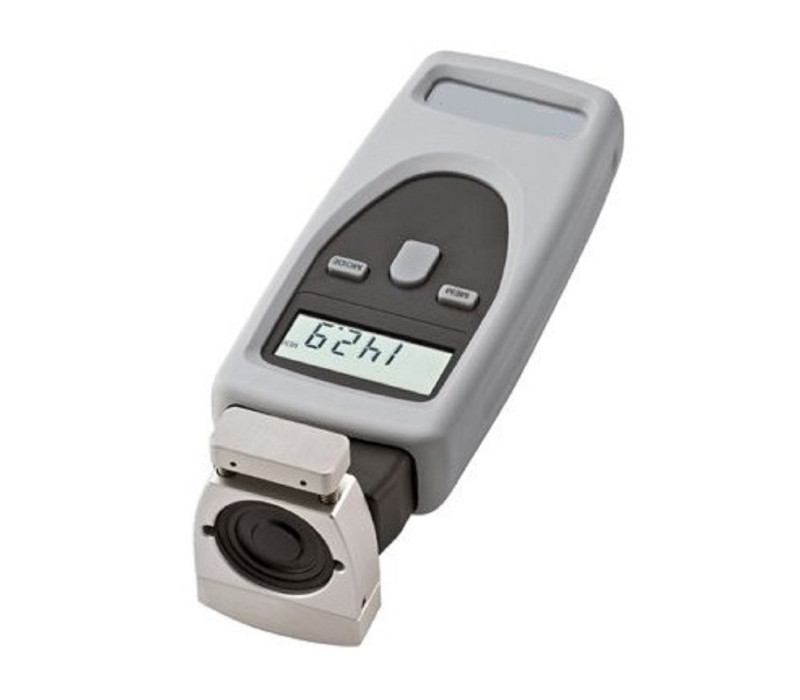

Welding Wire Feed Speed Meter

Name: Welding Wire Feed Speed Meter
SKU: 127257
Price: 1061.00 EUR
Availability: PreOrder

For use on Welding Wire Diameter Range of 0.8 to 3.0mm.

It has been developed to meet the special requirements for measurement of speed and length within the welding industry.

The CDT-2000HD-TW complies with all required norms and can therefore be used as an additional measurement instrument. It can be applied to optical and mechanical measurement of welding wire feed speed and is a reliable tool for quality control of welding-based production.

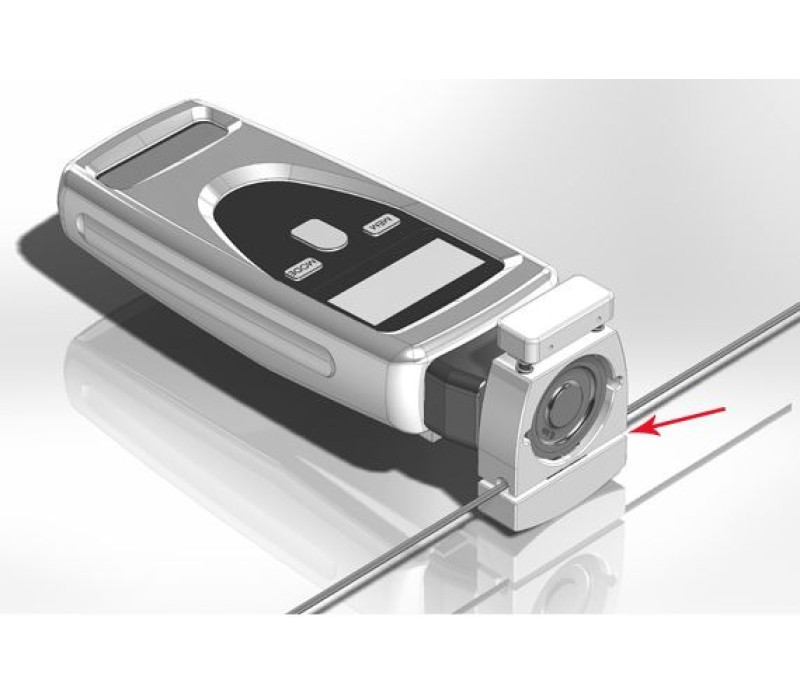

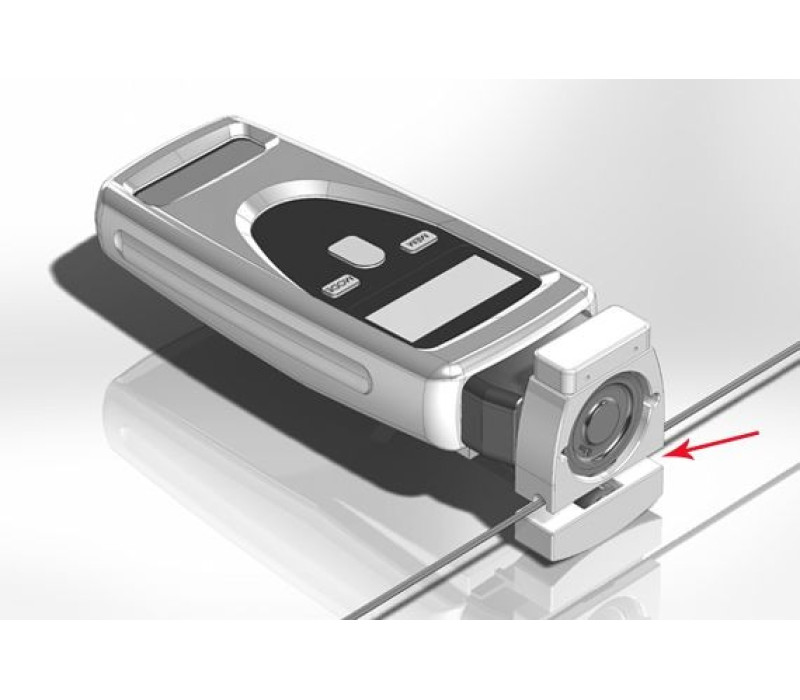

Operation is simple and requires no training. The wire is placed between the rollers by pressing the top to release the jaws. As soon as the wire feed is triggered, the speed is measured and recorded on the digital display.

€ 1.061,00

Shop now

Instrument for measuring rotational speed, wire speed and length
Tool for preparing and documenting welding procedure approvals (WPQR)
Accuracy Class of 0.02% of reading or 1 digit
Tool for preparing and documenting welding procedure specifications (WPS)
Reliable and versatile tool for quality control of welding-based production
Spring-loading and ball-bearing mounted contact roller eliminates slip and makes for highest possible accuracy
Total Length can also be measured and displayed (in Meters, Feet or Inches)
Wire Speed can be measured in any of the following user-selected units: m/min, ft/min, in/min, m/sec or ft/sec
All-metal construction designed for trouble-free use even in the toughest production environments

The CDT-2000HD-TW is supplied in a foam-fitted, hard-plastic Carrying Case, with

Tachometer

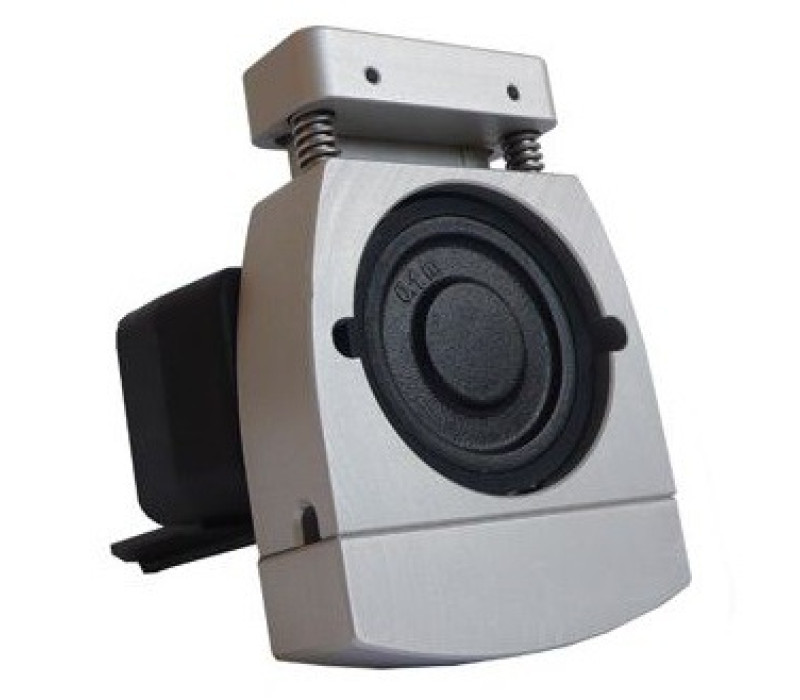

Welding Wire Speed Adapter
Slide-In Tachometer Contact Adapter
6" Surface Speed Wheel
0,1m Surface Speed Wheel
Cone Tip
Funnel Tip
Extension Shaft
ReflectiveTape
Two (2) AA Batteries (1.5 V)
Calibration Certificate
Operating Instruction Manual

Measuring Ranges

RPM
Non-Contact	1-99,999
Contact	1-19,999
Surface Speed
m/min	0.10-1,999
ft/min	0.40-6,550
in/min	4.00-78,700
m/sec	0.10-33.30
ft/sec	0.10-109
Total Length
Meters	99,999
Feet	99,999
Inches	99,999

Accuracy	± 0.02% of reading or 1 digit
Display	5 - Digit LCD, 10mm high
Decimal Point	Automatic
Memory System	Maximum, minimum, and last reading (retained in memory for the life of the batteries)
Measurement System	Non-Contact: Visible LED light beam Contact: Contact adapter
Engineering Units	RPM: RPM Surface Speed: Ft/min, inch/min & meters/min Length: Feet, inches, meters
Sensing Distance	Up to 60 cm
Display Update Time	0.5 seconds or one measuring
Auto Power Off	After 30 seconds of non-use (minimum, maximum and last reading retained in memory)
Battery Life	40 hours continuous use
Battery	2 AA (1.5 V) or rechargeable
Weight	170 gram
Housing Material	ABS Plastic housing with removable protective rubber shell
Operating Temperature	0 to 50° C
Storage Temperature	-20 to 70° C

Products

Item	Product	Price	Quantity	Action
135831	CDT-2000HD-TW Welding Wire Tachometer	€ 1.061,00

Accessories

Item	Product	Price	Quantity	Action
139547	Li-Ion Rechargeable AA Batteries - 4 pcs (with USB to USB-C cable)	€ 25,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
