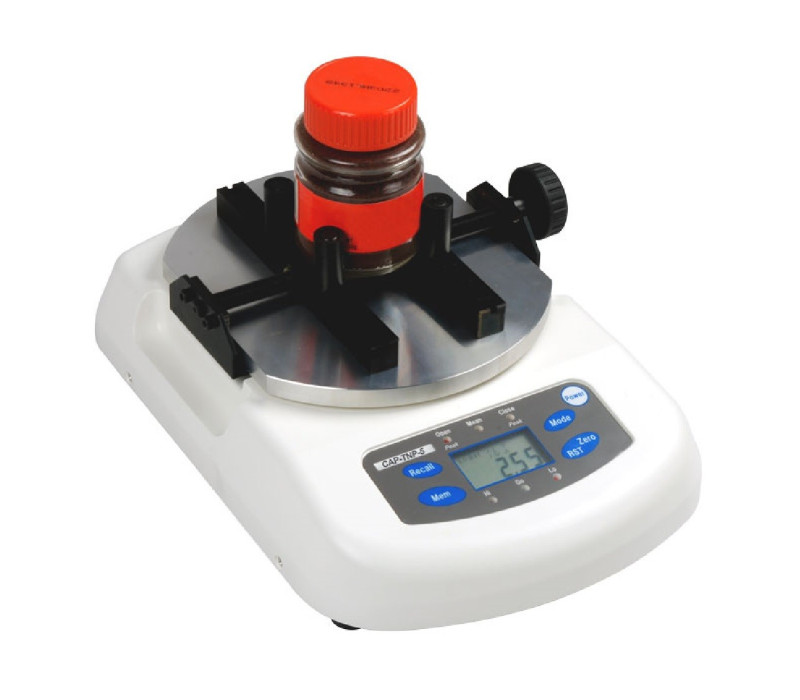

Name: CAP-TNP Digital Cap Torque Tester
SKU: 126346

The new CAP-TNP torque tester is a precision instrument that measures OPEN and CLOSE torque values for various applications. As a cap torque analyzer, the CAP-TNP repeatedly determines bottle closure and breakaway torque. It has a wide memory capacity capable of storing 1000 data points in addition to Average, Maximum and Minimum values. A HI-LO comparator feature can be utilized for a large batch testing to ensure overall product quality.

The CAP-TNP torque meter is USB capable for computer testing. Combined with the free Digitorq Software, additional analysis and testing can be performed.

The CAP-TNP is a portable device powered with internal rechargeable batteries or through an AC Adapter/charger. Designed with a small footprint it can easily be transferred to maximize use around the shop floor or the laboratory.

4 Ranges up to 10 Nm
Sample Diameters 10 - 190 mm

€ 1.515,00

Order now

±0.5% F.S. Accuracy
Quick and easy set-up takes seconds
Rechargeable NIMH batteries and / or Universal AC adapter
USB interface including FREE Digitorq Software
Captures Peak Opening, Peak Closing and Average torque values (CCW, CW)
Four (4) models offered covering small, medium and large sized containers
Easy to read LCD
Displays Torque values in, lb./in, LBin, Kgcm and Nm, Ncm
Small foot print, compact, space saver design
Open Mode:
Max value when opening
[CCW torque direction]
Close Mode:
Max value when closing
[CW torque direction]
Average Mode:
Continuous torque values in real time
One touch operation, retains up to 1000 measurements
2 Year Warranty
Includes Manufacturers Certificate

CAP-TNP includes,

Tester,

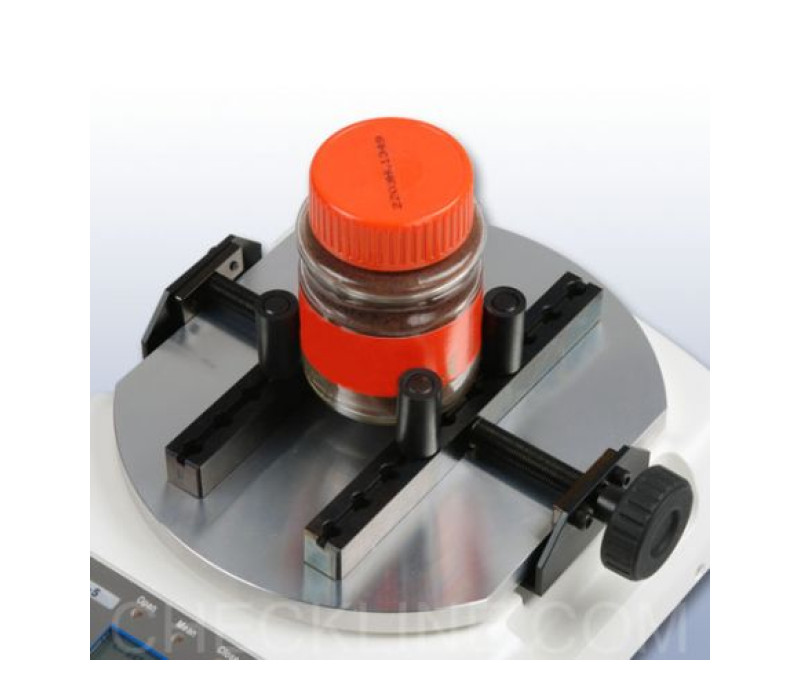

Set of four - 1" gripping pegs,
AC adapter,
Manufacturers Certificate (without data)
USB Cable
Instruction manual.

Torque Ranges

Model	Capacity	Resolution
TNP-0.5	0-4.425 Lbf-in 0-0.500 Nm 0-50.00 Ncm 0-5099 gcm	0.001 Lbf-in 0.001 Nm 0.01 Ncm 1 gcm
TNP-2	0-2.000 Nm 0-200.0 Ncm 0-20.39 Kgcm 0-17.70 Lbin	0.001 Nm 0.1 Ncm 0.01 Kgcm 0.01 Lbin
TNP-5	0-5.000 Nm 0-500.0 Ncm 0-50.99 Kgcm 0-44.25 Lbin	0.001 Nm 0.1 Ncm 0.01 Kgcm 0.01 Lbin
TNP-10	0-10.00 Nm 0-1000 Ncm 0-102.0 Kgcm 0-88.50 Lbin	0.01 Nm 1 Ncm 0.1 Kgcm 0.1 Lbin

Typical Torque Values (N-cm)

Cap dia. in mm	Phenolic/ Urea Cap On Glass		Phenolic/Urea Cap on Plastic		PP/PE Cap on Glass		PP/PE Cap on Plastic
Cap dia. in mm	Close Torque	Open Torque	Close Torque	Open Torque	Close Torque	Open Torque	Close Torque	Open Torque
15	90.39	45.19	67.79	33.90	135.58	79.09	90.39	45.19
18	101.69	56.49	79.09	45.19	146.88	90.39	101.69	56.49
20	112.99	56.49	90.39	45.19	169.48	101.69	112.99	56.49
22	124.28	67.79	101.69	56.49	192.07	112.99	124.28	67.79
24	135.58	67.79	112.99	56.49	203.37	124.28	135.58	67.79
28	158.18	79.09	135.58	67.79	237.27	135.58	158.18	79.09
33	203.37	101.69	169.48	79.08	271.16	158.18	192.07	90.39
38	225.97	112.99	192.07	79.09	327.66	192.07	214.67	101.69
43	248.57	124.28	203.37	101.69	372.85	225.97	248.57	124.28
48	271.16	158.18	225.97	112.99	293.76	248.57	271.16	135.58
58	316.36	158.18	271.16	135.58	497.13	293.76	327.66	158.18
70	395.45	203.37	316.36	158.18	587.52	361.55	395.45	192.07
89	508.43	248.57	406.75	208.37	734.40	451.94	508.43	248.57
100	564.92	282.46	451.93	225.97	847.39	429.34	564.92	282.46

Manual Software

Digitorq Software

Overload protection	150%
Sample Diameter Range (min to max)	10 - 190 mm
Overload display	Display "OVR" at sub display of LCD, blinking LED

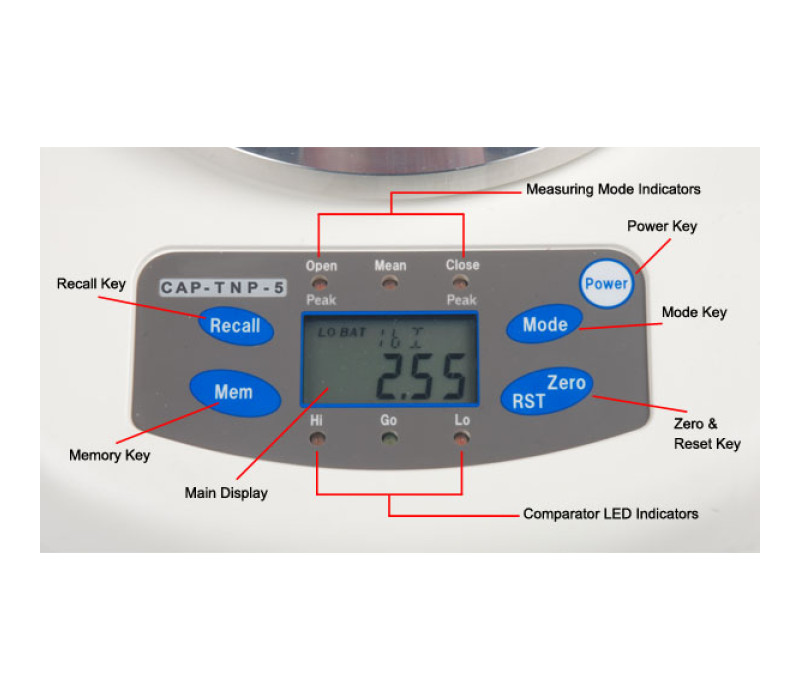

Main display	4-digit LCD display Character height 12mm
Sub display	3-digit LCD display Character height 7mm
Comparator display	Hi, GO, Lo LED Indicators
Accuracy	± 0.5% full scale
Open mode	Max value when opening. Displays max counter clockwise torque.
Close mode	Max value when closing. Displays max clockwise torque
Average mode	Real time display. Displays max torque in real time
Display Update Time	1, 2, 4 or 8 updates/second, user-set
Sampling Rate	1000 times/second
Memory data number	1000 data points (max)
Statistic process	Average value, max value and min value

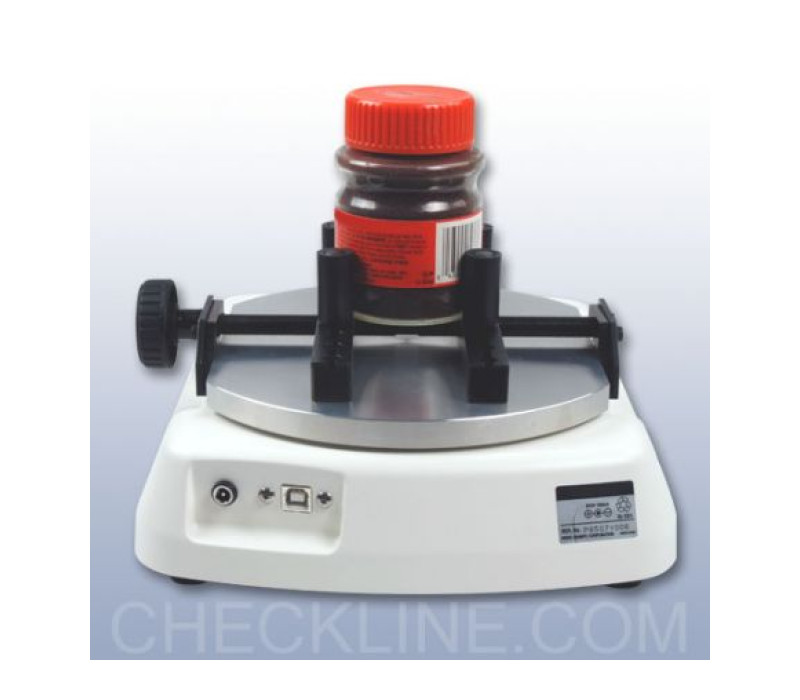

Data output	USB 1.1
PC software	Digitorq software
Accessories	USB cable, AC adapter, 30 mm chuck pin (4 pcs), Manual
Power	Built in nickle hydride battery or Auto-ranging AC adapter (AC100 - 240V)
Dimensions L x W x H	320 x 227 x 126 mm
Weight	8 kg CAP-TNP-10: 12.5 kg
Operating temperature	0 - 40°C / 32 - 104°F
Battery Life	8 hours after full charge
Battery Recharge Time	Max. 16 hours
Battery Type	NiMH
Warranty	1 Year

Products

Item	Product	Price
133013	CAP-TNP-0.5 Torque Tester - 0.5Nm Capacity	€ 1.515,00
130360	CAP-TNP-2 Torque Tester - 2Nm Capacity	€ 1.515,00
130361	CAP-TNP-5 Torque Tester - 5Nm Capacity	€ 1.515,00
130362	CAP-TNP-10 Digital Cap Torque Tester - 10Nm' title='Description'>	€ 1.515,00

Accessories

Item	Product	Price
138307	CIC-CAP-NEW CAP TORQUE TESTER	€ 112,50
135405	TNP-TP30 - Set of 4 standard replacement pegs, 30mm height	€ 149,00
131746	TNP-TP50 - Set of 4 extended pegs, 50mm height	€ 229,00

All mentioned prices are excluding VAT & excluding shipment costs.
