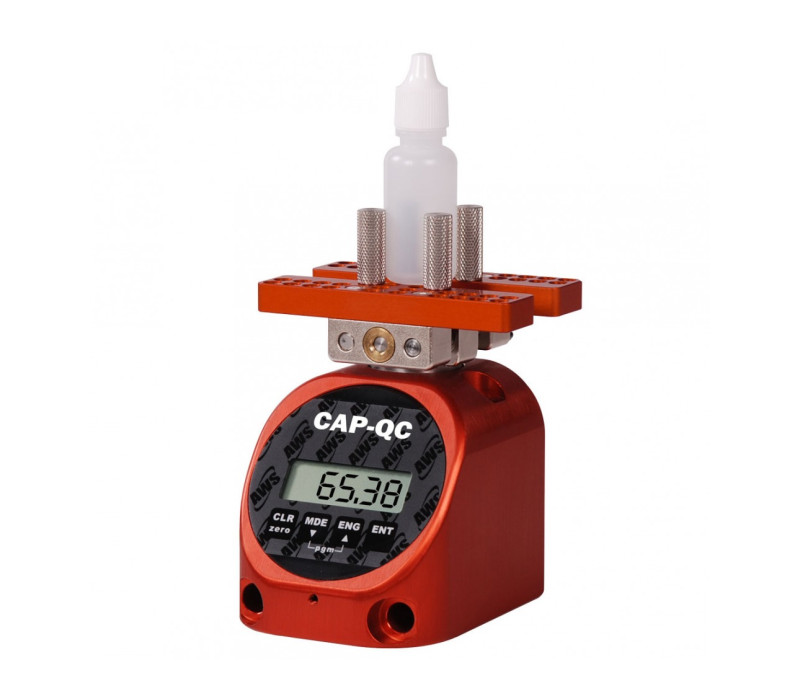

CAP-QC Small Cap & Vial Torque Tester

CAP-QC Small Cap & Vial Torque Tester

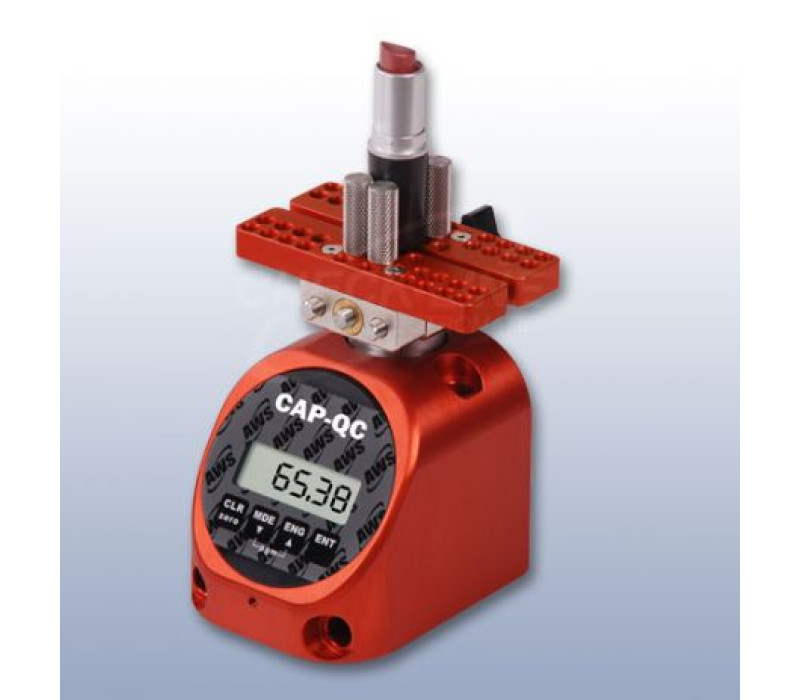

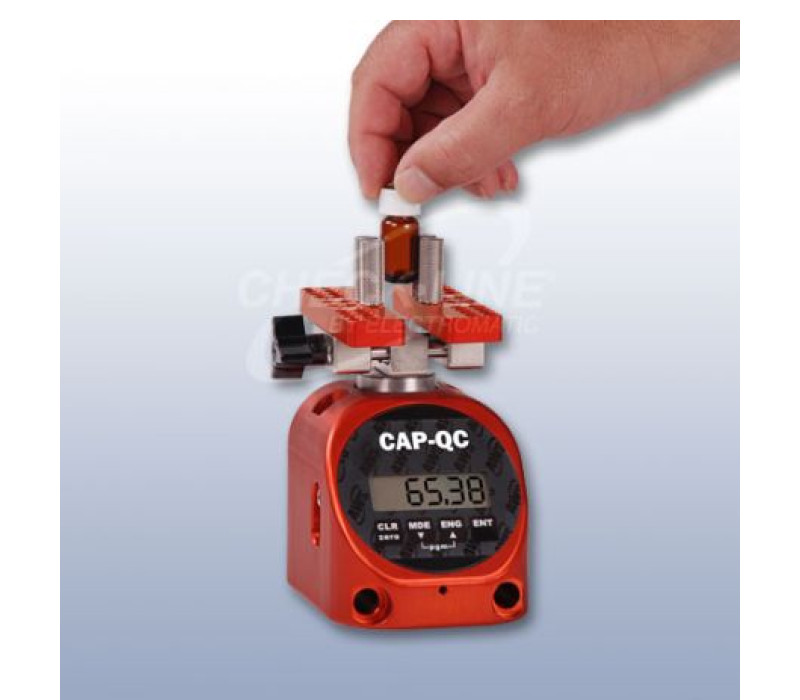

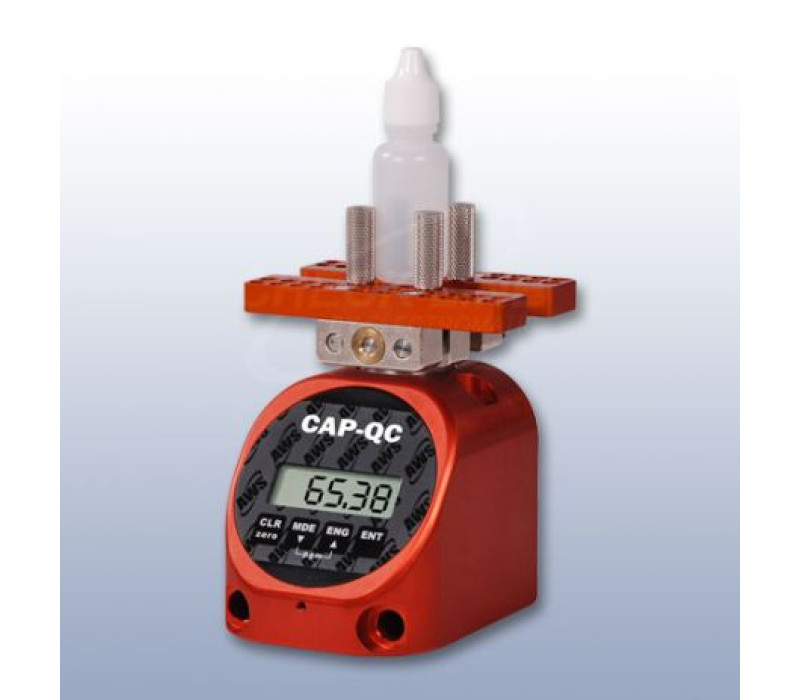

The CAP-QC is designed for measuring open and closure torque on small diameter bottles and vials used in the pharmaceutical and cosmetic industry. Compact, lightweight aluminum housing with internal rechargeable battery makes for ease of transport so the CAP-QC can be used anywhere from the lab to the production line. Intuitive menu system allows the user to quickly select measuring units and operation mode. Peak mode holds max open or close torque on the display until it is reset for the next test.

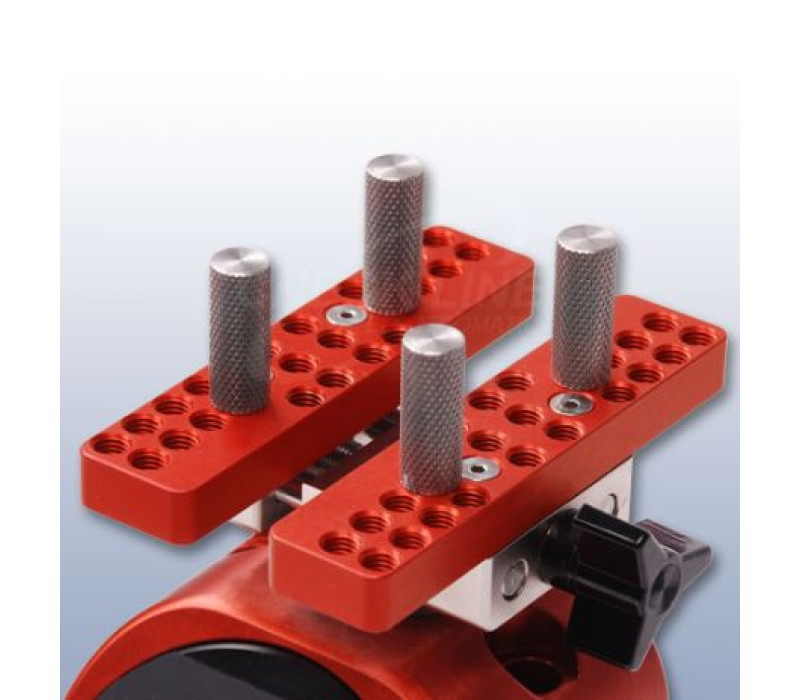

Lightweight, sturdy cap grip features multiple threaded holes with four (4) screw-in posts to accommodate a wide variety of containers types from 0.2" up to 3.5" (5.1 - 89.0 mm) including vials, drams, lipstick & perfume packages as well as many other samples.

Capacity: 100 Oz-in / 6.25 in-lb / 70 N-cm
Diameters: 0.2" up to 3.5" (5.1 - 89.0 mm)

Bidirectional accuracy of ±1% of indicated reading
Eight (8) selectable engineering units: Oz.in., Lb.in., Lb.ft., Nm, cNm, KgfCm, gfCm, Kgfm
3 modes of operation: Track, Peak and 1st Peak
Rugged Aluminum construction
NiMH rechargeable batteries provide 8-10 hours of continuous use. Supplied with AC-Adapter/Charger
Lightweight, sturdy cap grip features multiple threaded holes with four (4) screw-in posts to accommodate a wide variety of containers types
Includes NIST-Traceable Calibration Certificate

Tension Ranges

Model	Ranges	Resolution
CAP-QC-100z	100 Oz-in 6.25 in-lb 70 N-cm	4 Active Digits

Calibrated Range	10-100% Full Scale, bi-directional
Accuracy	±1% of indicated (within calibrated range)
Resolution	4 Active Digits
Overload Protection	200% Full Scale bi-directional
Operating Modus	Track, Peak
Memory	Data storage of up to 999 readings
Data Output	RS-232, Single Value, no continuous output
Alarm Limits	Panel Mounted LED for Visual Alarm Limits
Power	Internal NiMH battery, 9V Charger (included)
Weight	3 lbs
Operating Temp	32 - 120°F (0-50°C)
Warranty	1 Year
Calibration Certificate	Includes NIST Traceable calibration certificate with data

Products

Item	Product	Price	Quantity	Action
132659	CAP-QC-100z - Small Cap & Vial Torque Tester

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
