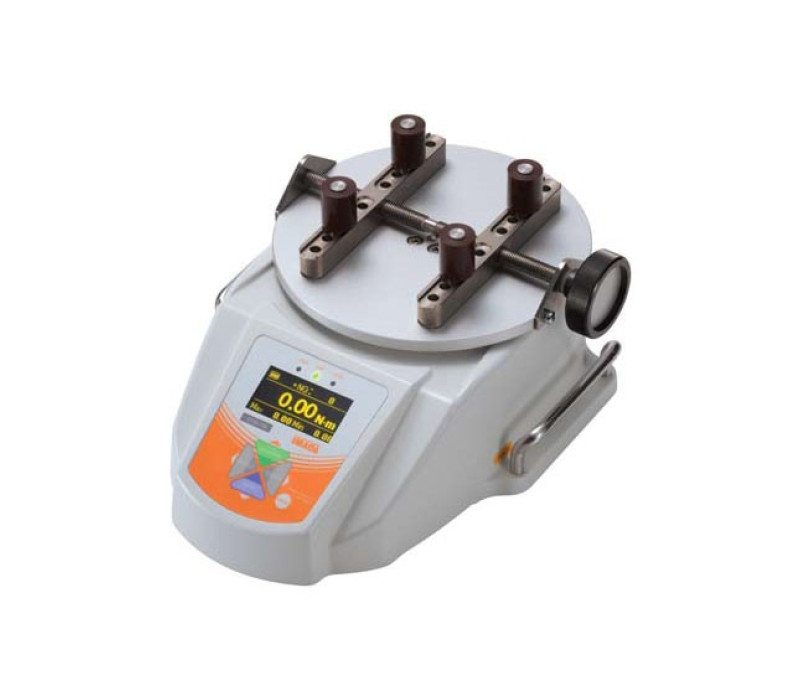

CAP-DTX Digital Cap Torque Tester

CAP-DTX Digital Cap Torque Tester

Name: CAP-DTX Digital Cap Torque Tester
SKU: 127200

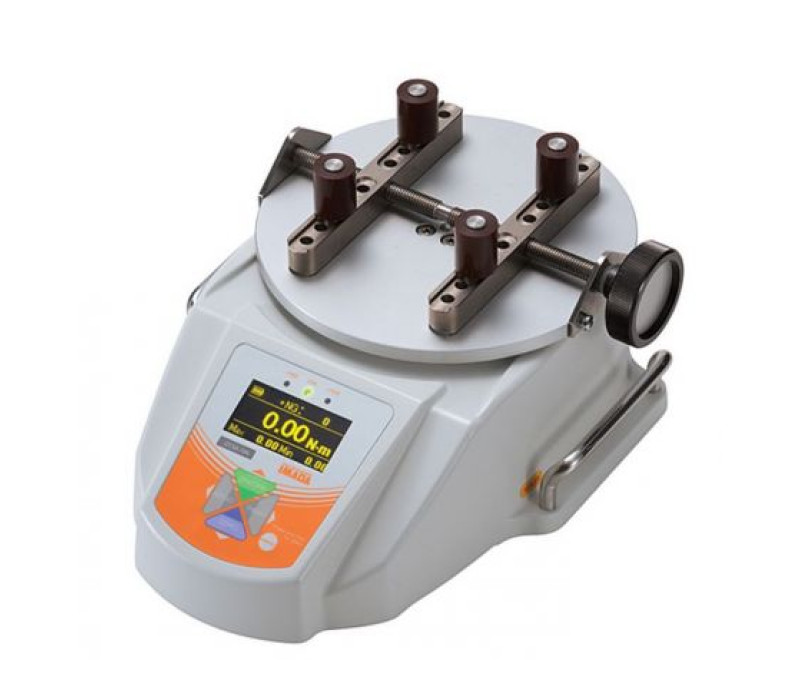

The CAP-DTXS digital cap torque tester has an EL (electro luminescent) display which can be clearly read under any lighting circumstances.
This cap torque tester can capture up to 2000 reading per second and has an extreme overload capacity of 200%. Together with the heavy duty steal housing this is one of the most rugged cap torque testers available today.

Cap testers include AC adapter/charger and built-in NiCd rechargeable batteries, 2,5 cm high standard pegs (optional long pegs available).

Price from € 1.720,00

Order now

Available outputs: RS-232, Digimatic and Analog
Overload capacity 200% of F.S.

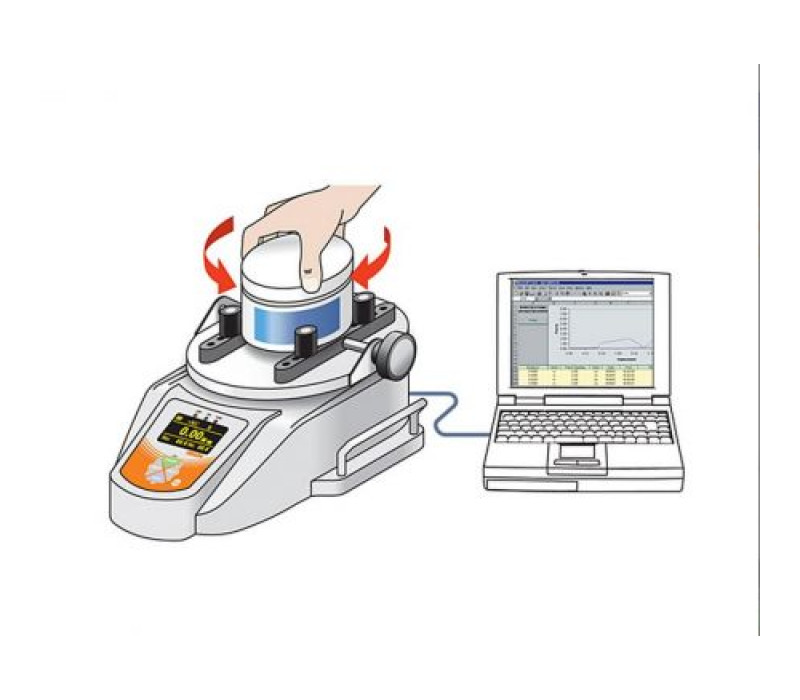

Measure torque of opening and closing PET bottles and bins
Selectable units: N-m, N-cm, kgf-m, kgf-cm, Lb- in, ozf-in
Grip clamps diameters from 20-160mm

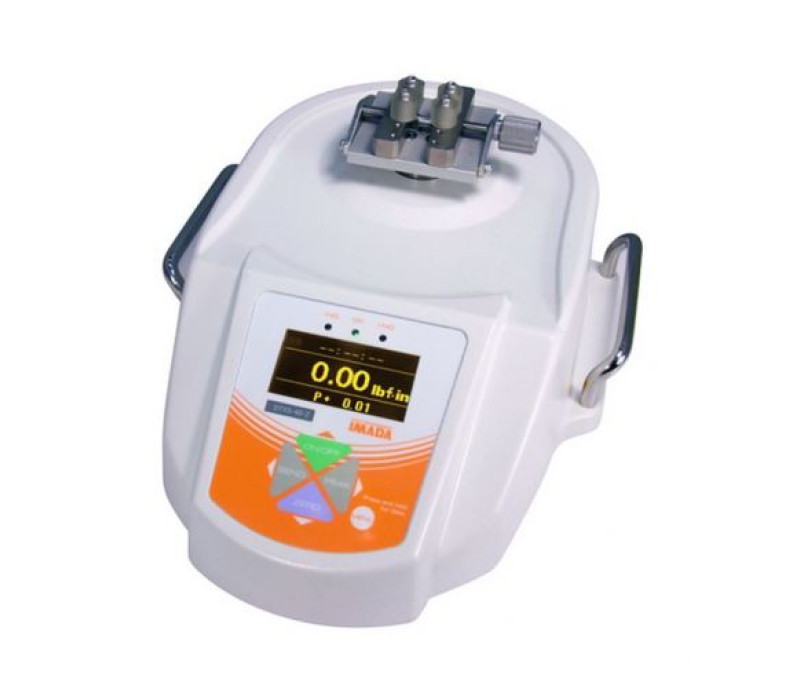

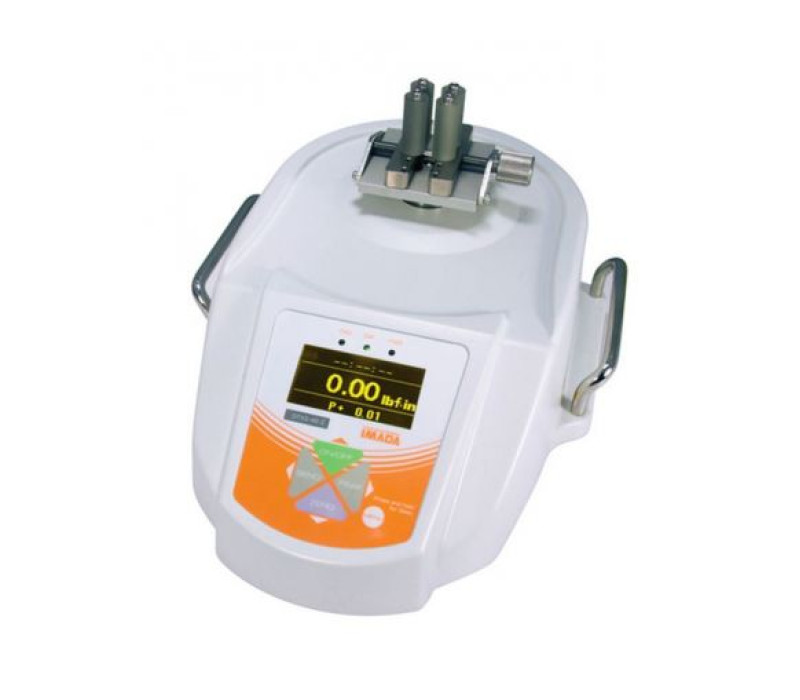

Optional small tables clamp diameters from 7mm-50mm available
High repeatability by high speed sampling rate
Includes NIST traceable calibration certificate
Display of opening or close torque
ISO/IEC 17025 Long-form Certificate & Test Data is optionally available
1000 data memory
Programmable high/low setpoints with color-coded LED indicators and output signal

CAP-DTX Feature Comparison Chart

Electroluminescent display (ELD)
Functions	CAP-DTXS	CAP-DTXA
Peak hold (Clockwise and Counterclockwise)
Comparator (OK/NG judgment )
Reversible display
Sign inversion
Time display
Internal memory	1000 data	1000 data
Dumping
Zero clear timer
+NG alarm
Auto shut off
1st/2nd peak	-
Angle detection at torque peak value	-
Angle zero reset at selected torque	-
Output	CAP-DTXS	CAP-DTXA
Serial (RS232C)
Mitutoyo digimatic
2 VDC analog output (D/A)
USB
Comparator 3 steps (-NG/OK/+NG)
Overload warning
Sub comparator 2 steps (output of large or small judgment)	-
Memory in USB flash drive [USB flash drive is not included]	-
Angle displacement	-

Tension Ranges

Model	lbf/in	Kgf-cm	N-cm
CAP-DTX-2N	15.00 (0.01)	20.00 (0.01)	200.0 (0.1)
CAP-DTX-5N	40.00 ( 0.01)	50.00 (0.01)	500.0 (0.1)
CAP-DTX-10N	85.0 ( 0.1)	100.0 ( 0.1)	1000 (1)

Attachments CAP-DTX

Datasheet CAP-DTX

Accuracy:	± 0.5% Full scale ± 1 digit
Display :	4-digits
Display update:	10 times /sec
Sampling rate:	Maximum 2000 data/ sec
Selectable units:	N-m, N-cm, kgf-m, kgf-cm, Lb- in, ozf-in
Safe overload rating:	200% Full scale
Overload warning:	Approx. 110% F.S. (Warning message and alarm )
Battery:	8 hours (8 hours full charge)
Battery Indicator:	Indicates three charge states, high, medium, and low
Auto Zero Reset:	1,0 to 60 seconds (selectable)
Warranty:	2 years
Output signal:	RS232C (8,1,N,19200), analog ± 2V DC, Open collector 4x (+NG, Ok, -NG, OVL), max. 30V DC, 10mA, Mitutoyo Digimatic
Temperature range:	0 - 40°C
Air humidity:	20 - 80% RH, max.
Housing dimensions: (approx.)	305x233x119 mm (LxWxH)
Max sample diameter	20 - 160 mm
Memory:	1000 data points (max)
Pegs	2.5 cm standard, 10 cm optional
Gross Weight	Appr. 4,5 kg

Products

Item	Product	Price
134972	CAP-DTXS-2N - Digital Cap Torque Tester Standard	€ 1.720,00
134973	CAP-DTXS-5N - Digital Cap Torque Tester Standard
134974	CAP-DTXS-10N - Digital Cap Torque Tester Standard	€ 1.767,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
