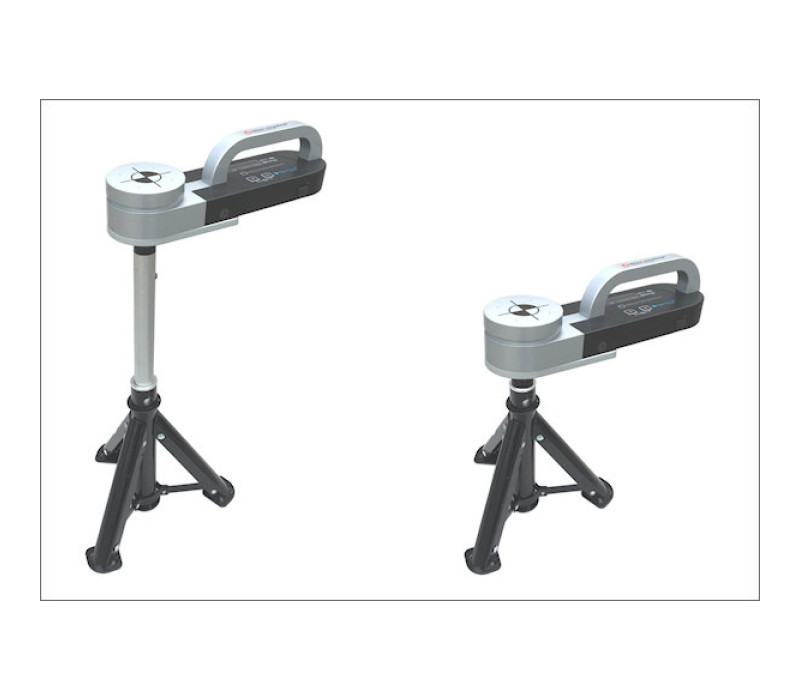

138190 - Blueforce 50V012 - Extension Verticale

BlueForce Impact Force Gauge

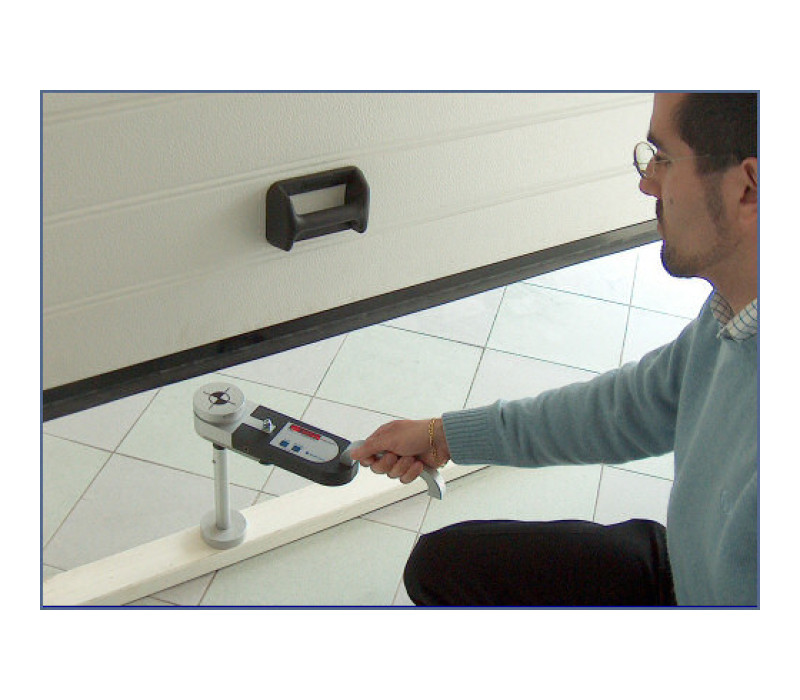

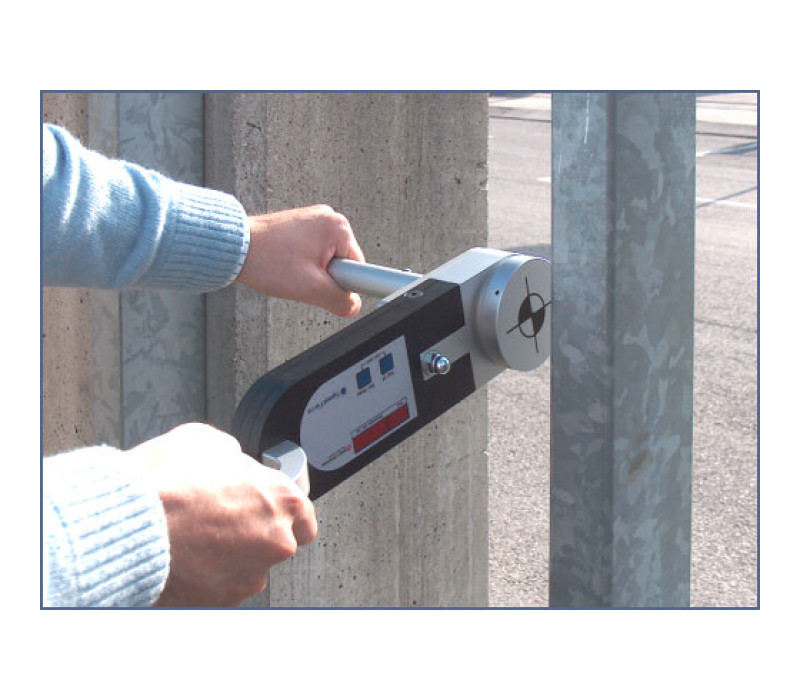

Force testing on a roll door

BlueForce Smart Pro Force Gauge

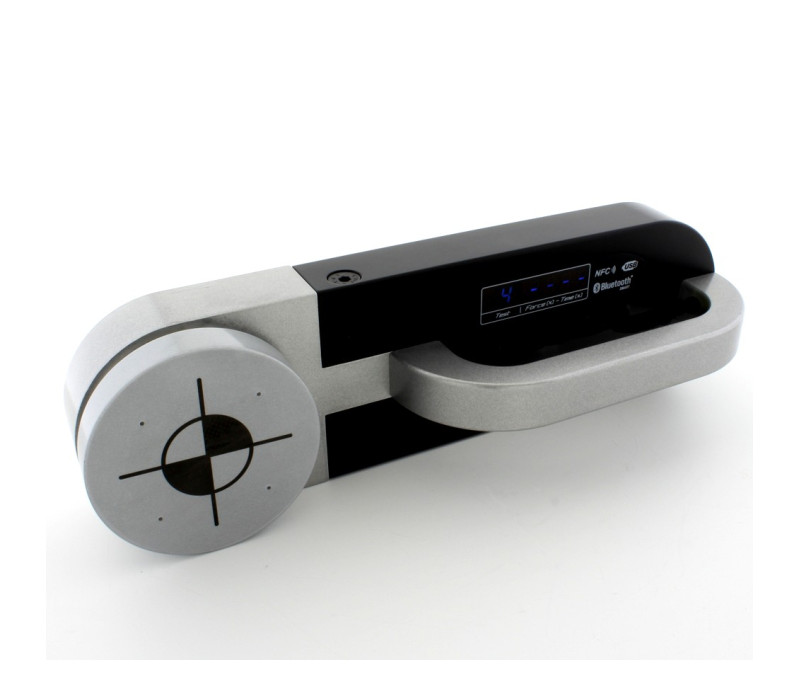

BlueForce Impact Force Gauge

BlueForce Smart - Impact force gauge with USB & GSM and software for CE certification of power-operated gates and doors.

BlueForce Smart is a high quality impact force gauge for automatic/power operated doors and gates that complies with standards EN12453 (former EN12445), EN16005, EN60335-2-95, DHF UK Norms.

BlueForce is one of a kind, with its GSM and USB interface, as well as integrated GPS geolocation.

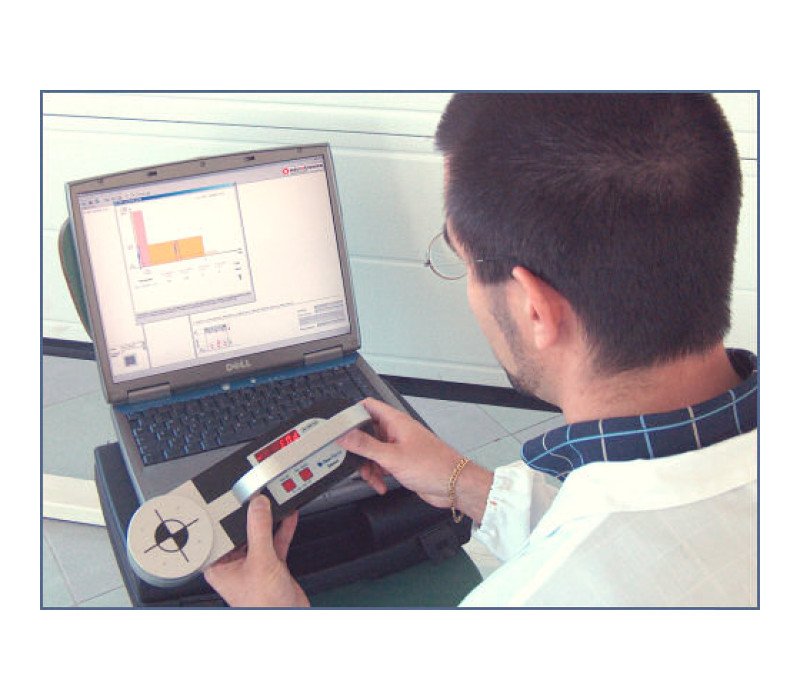

Thanks to the PC-LINK mode, BlueForce can be linked up to a handheld computer or a PC during testing, allowing immediate viewing of the graph and values. It simultaneously enables immediate access to test results.

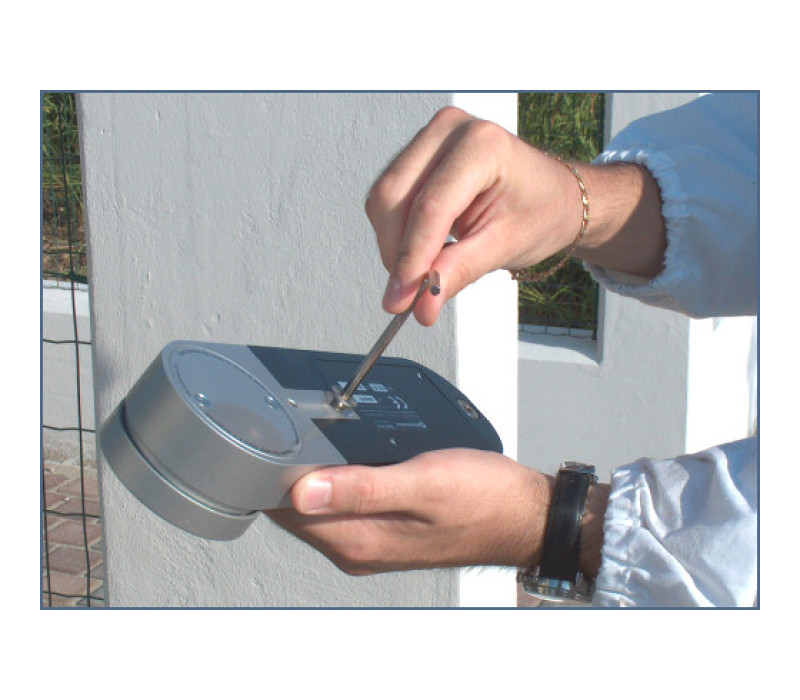

The comfortable handle, in an accessible and ergonomic position, ensures a steady grip and matchless maneuverability. The handle is easy to remove by using the supplied key and can be rotated by 180° (i.e. turned upside down).

The Blueforce Smart Pro Kits are available in 3 versions:

Blueforce Smart Pro Kit
Blueforce Smart Pro Plus Kit (Blueforce Smart Pro Kit & Blueforce 50V003 - Linear Extension)

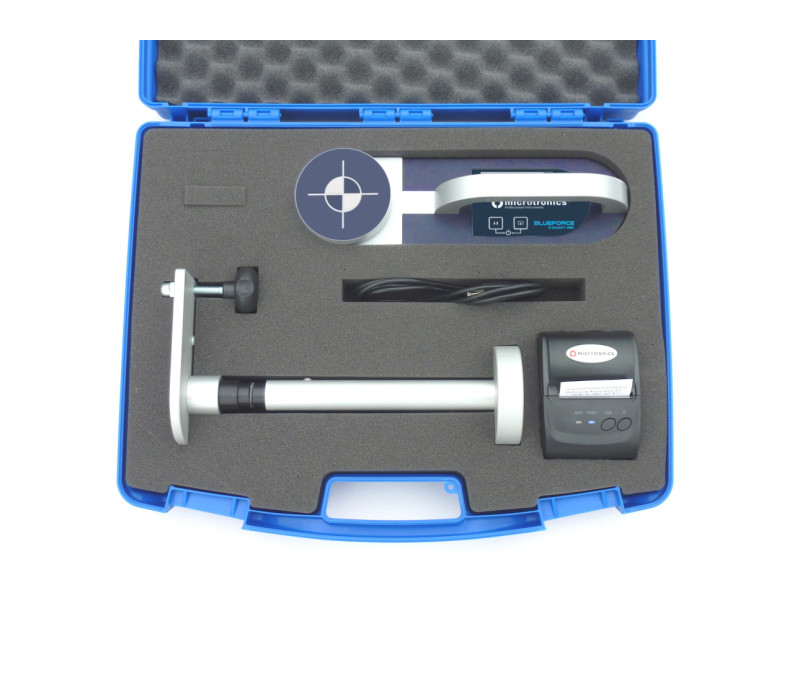

Blueforce Smart Pro Print Kit (Blueforce Smart Pro Plus Kit & FTP Thermal Printer)

Available accessoires:

Blueforce 50V003 - Linear Extension
BlueForce 50V004-C - Angular Extension with bag
Blueforce 50V012 - Vertical Extension
Blueforce 50V020-G - FTP Thermal Printer
Blueforce 50V011 -Extreme carry-case

Price from € 1.675,50

Order now

Memory capacity increased by 60%: enables storage of an impressive 80 tests on the instrument
Options include: sending, deleting and browsing saved tests (through an interactive menu)
BlueForce Smart is a dual purpose gauge, as it incorporates both a display and internal storage allowing up to 80 measurements to be saved
New blue led alphanumerical display: The indestructible display with 7 segments is even brighter and more legible thanks to the blue colouring
New built-in internal clock: for simpler and quicker identification of the tests performed, thanks to automatic memorisation of the date and time of measurement.
New generously sized and sturdy carry-case
Direct display of numerical test parameters: dynamic force, dynamic time, average static force, final force.
USB port: enables connection of the instrument to a PC with Windows OS to download and manage tests performed with the supplied software
GSM interface for quick network communication
Integrated GPS geolocation

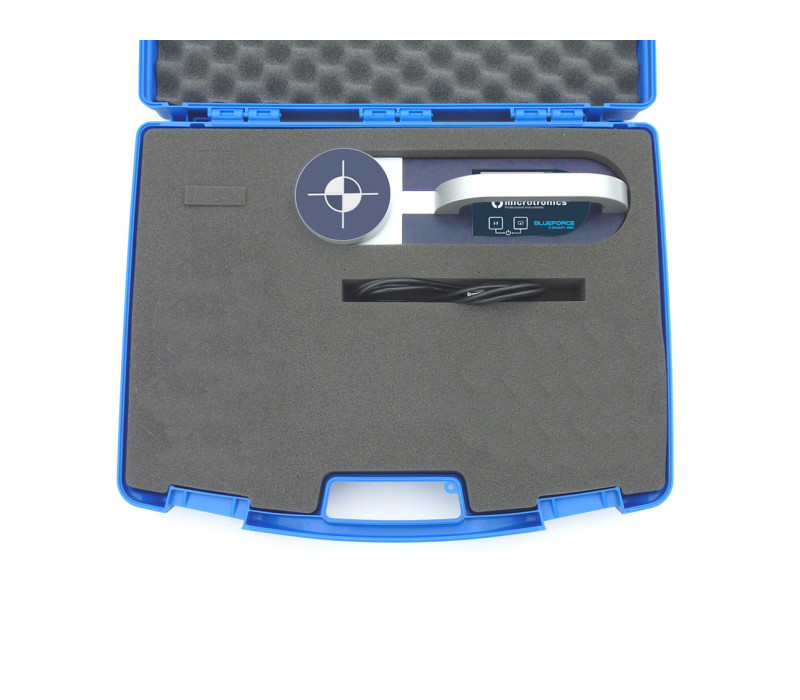

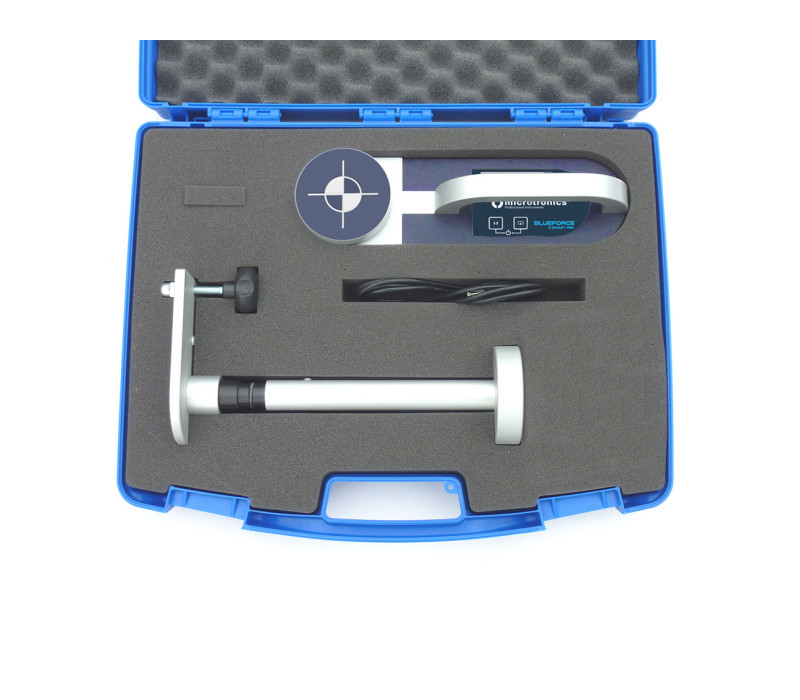

The complete BlueForce kit is supplied:

BlueForce Smart Pro Instrument
Carry-case with pre-formed interior
USB cable for PC
Hex wrench for handle disassembly
Instructions / Software / Certificate of Calibration downloadable from download section

the BlueForce Smart Pro Plus kit includes additionally the 50V003 extension.

Accuracy	0 - 400 N: 1% 401-1000 N: 2% 1001 - 2000 N: 4%
Force measurement resolution	1 N
Force measurement range	0 - 2000 N (mechanical stop at approx. 2100 N)
Current Absorbed	min. 4 mA, average 12 mA, max. 80 mA
Measuring Interval	6 sec. sampling 1 Ksmp/s
Memory capacity	80 tests
Maximum force measurement error margin: range from	+/-1% F.S; from 400 to 1000N: +/-2% F.S; from 1000 to 2000N: +/-4% F.S;
Dynamic time measurement resolution	0.01 s
Interface	<i class="fa fa-usb" aria-hidden="true"></i> USB 2.0 <br/><i class="fa fa-bluetooth "></i> BLUETOOTH® Ver. 4.1 (enabled via password)<br/>NFC per ISO/IEC 14443 & NFC Forum Type 4 GSM
Power supply	Rechargeable Lithium-ion battery
Testing Standards	Complies with EN12445, EN12453, EN16005, EN60335-2-95
Weight	1.6 kg ± 10%
Dimensions (L x W x H)	280 mm X 80 mm X 50 mm ± 5%
Warranty	2 years

Product video

Optional Accessories

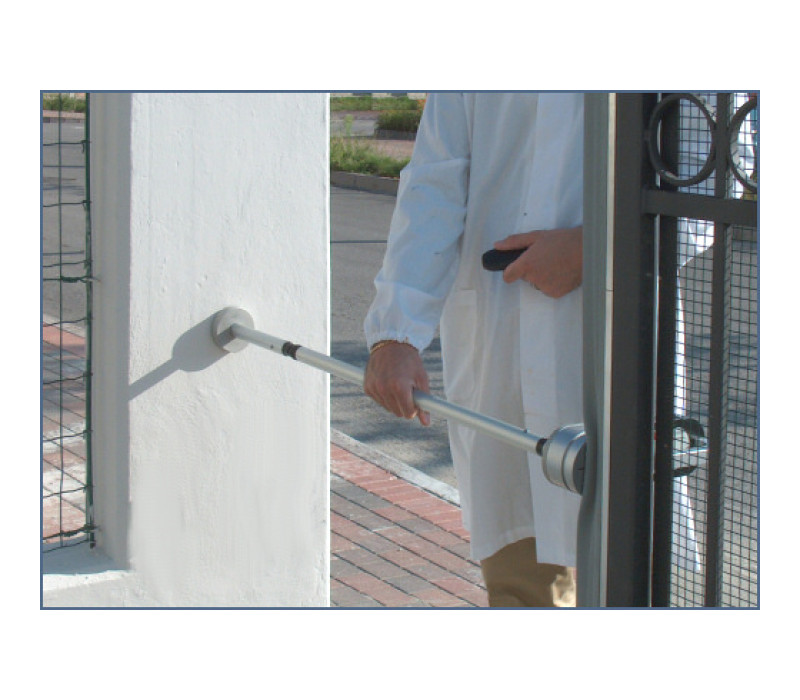

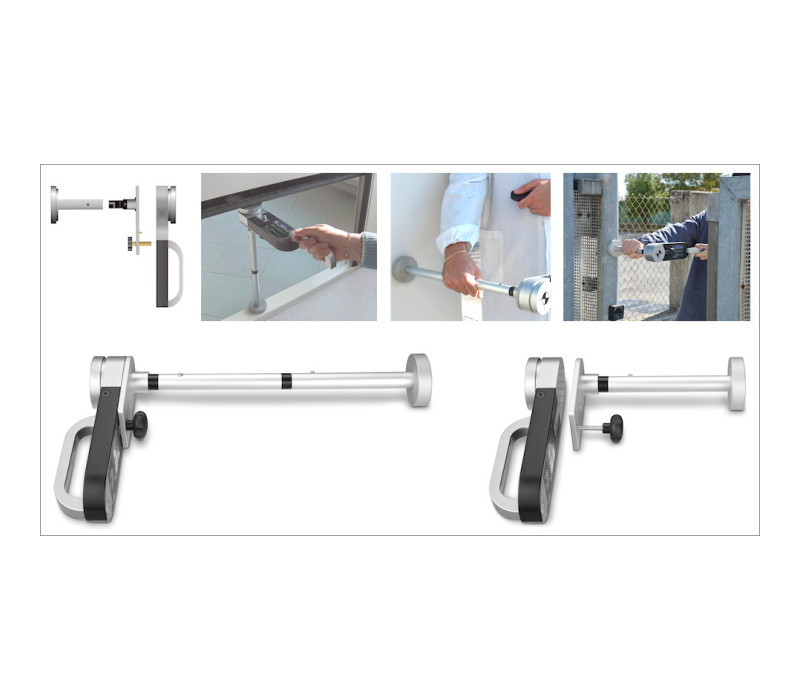

Linear Extension

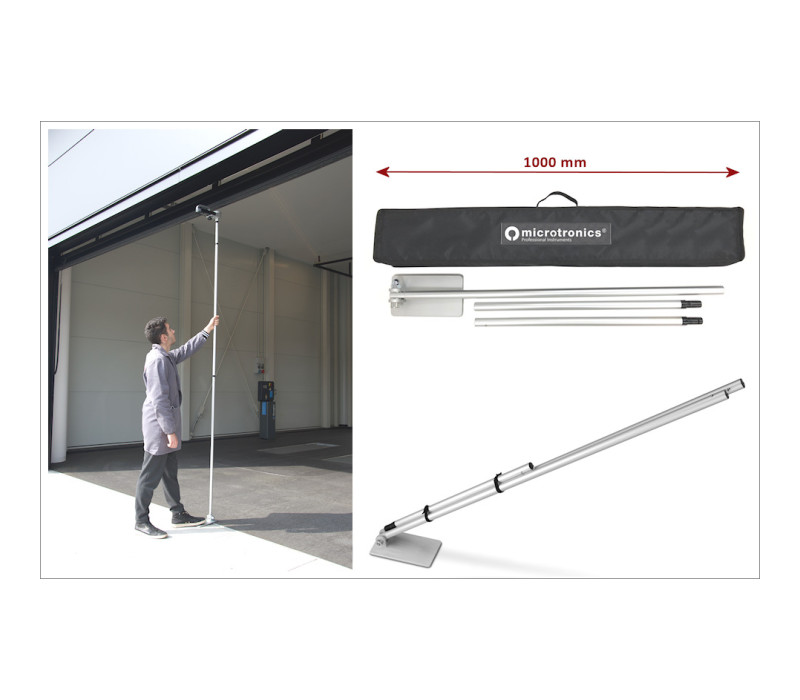

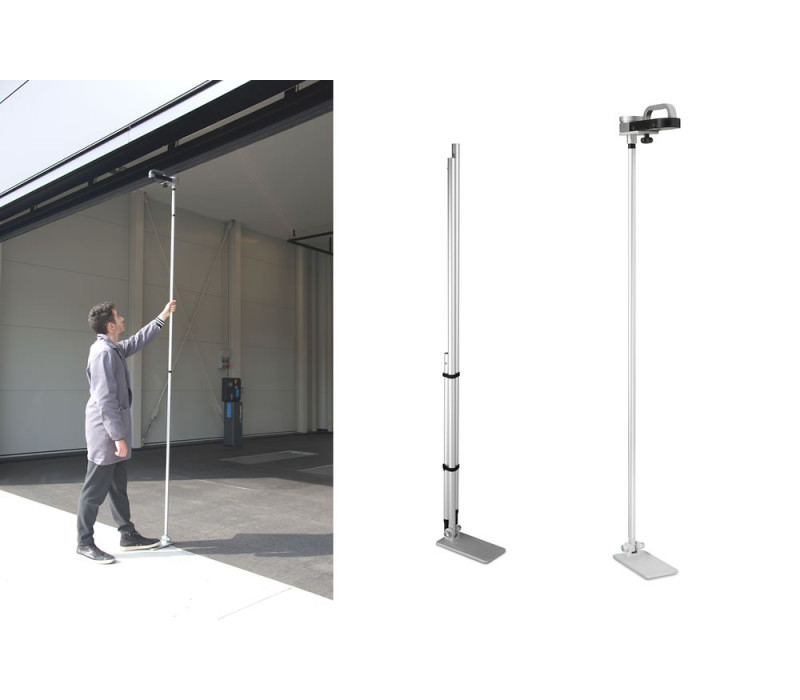

Angular Extension

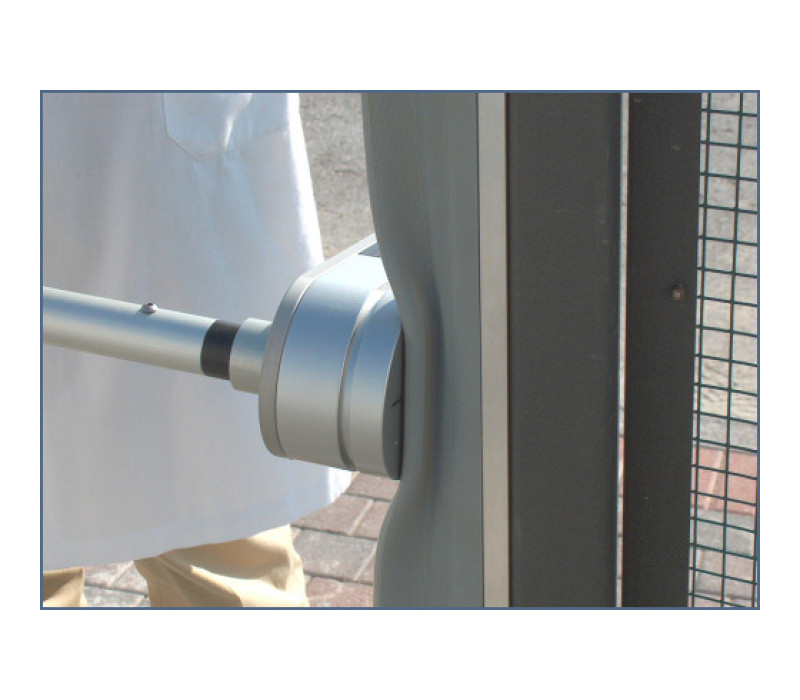

During the use, the instrument has to be supported in a way to not alter the results of measurements.

The optional accessories, thanks to the fast-joint mechanism, allow the user to carry out measurements by using only one hand. With the other hand, the user is able to drive the opening/closing device.

There are two versions available: the Linear Extension, for measures at 30 or 50 cm and the Angular Extension, for measures from 1.25 m to 2.5 m. This also requires use of the Straight Extension.

Products

Item	Product	Price
138191	Blueforce Smart Pro Kit - Impact Force Gauge	€ 1.675,50
138187	Blueforce Smart Pro Plus Kit - Impact Force Gauge + Straight Extension (50V003)	€ 1.845,00
139410	Blueforce Smart Pro Print Kit - Impact Force Gauge + Straight Extension (50V003) & Thermal Printer	€ 1.974,00

Accessories

Item	Product	Price
132334	Blueforce 50V003 - Linear Extension	€ 189,00
132335	BlueForce 50V004-C - Angular Extension with bag	€ 310,50
138190	Blueforce 50V012 - Extension Verticale	€ 174,00

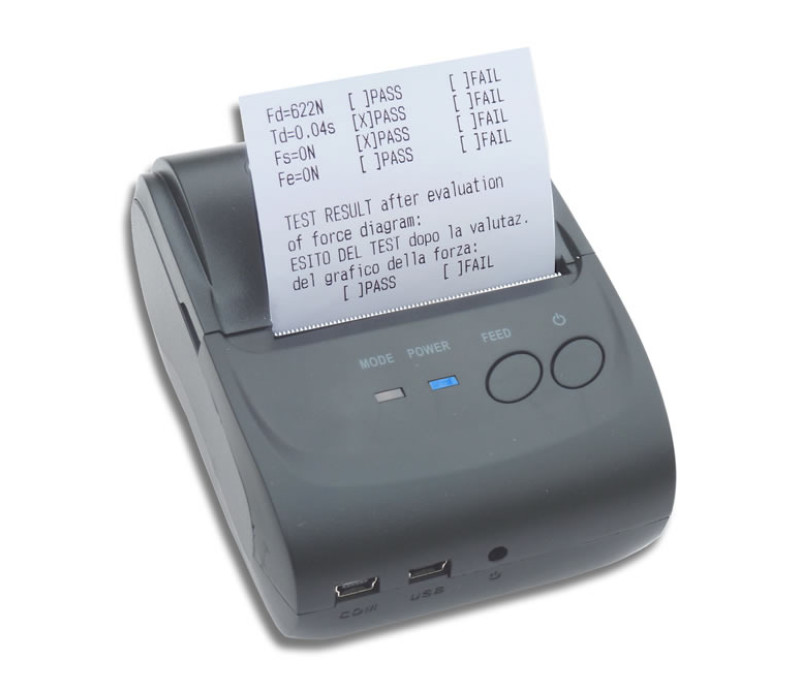

139412	Blueforce 50V020-G - FTP Thermal Printer for BlueForce Smart Pro	€ 238,50

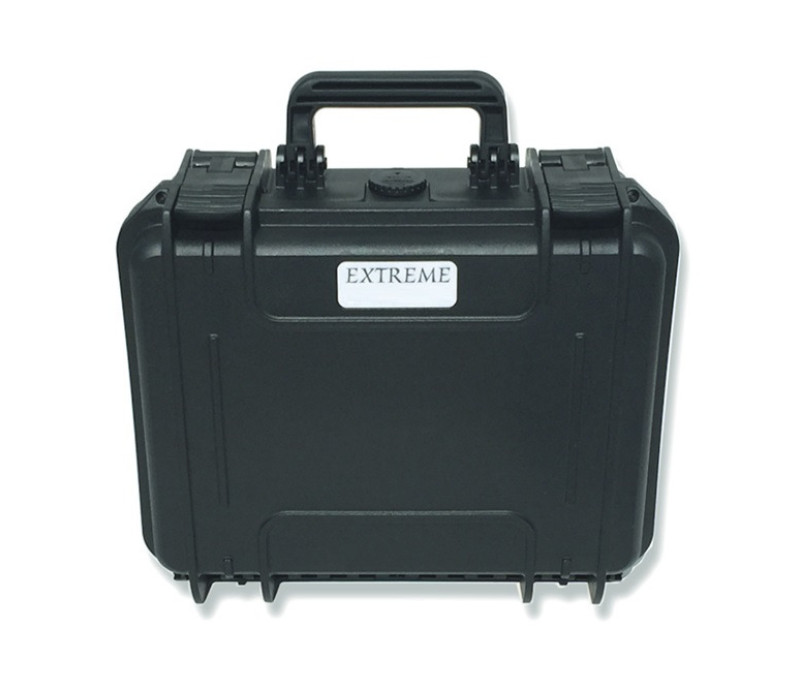

139413	Blueforce 50V011 Extreme carry-case	€ 97,50

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request

View Cart Check out

BlueForce Impact Force Gauge

Features

Specifications

50V003 Straight Extension

50V004-C Angular Extension

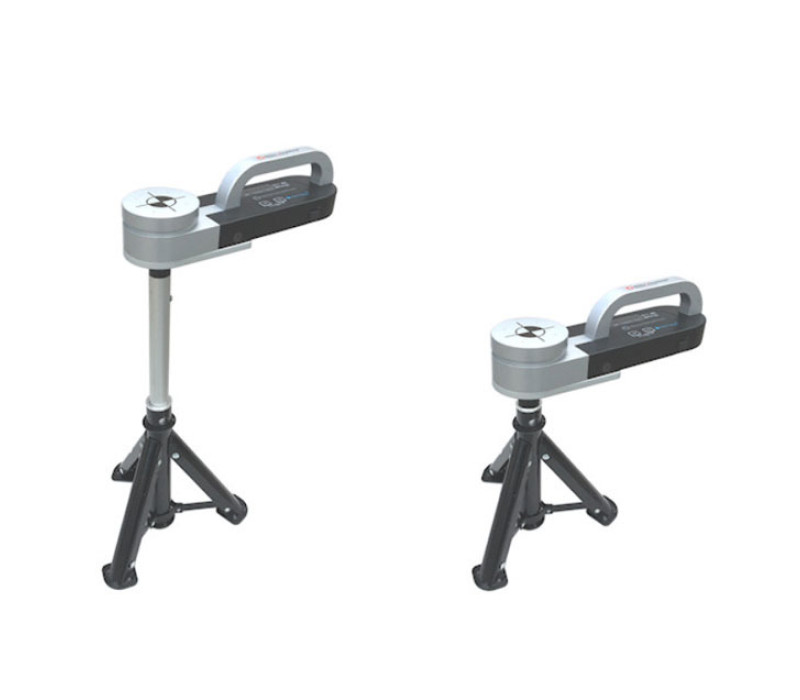

50V012 Vertical Extension
