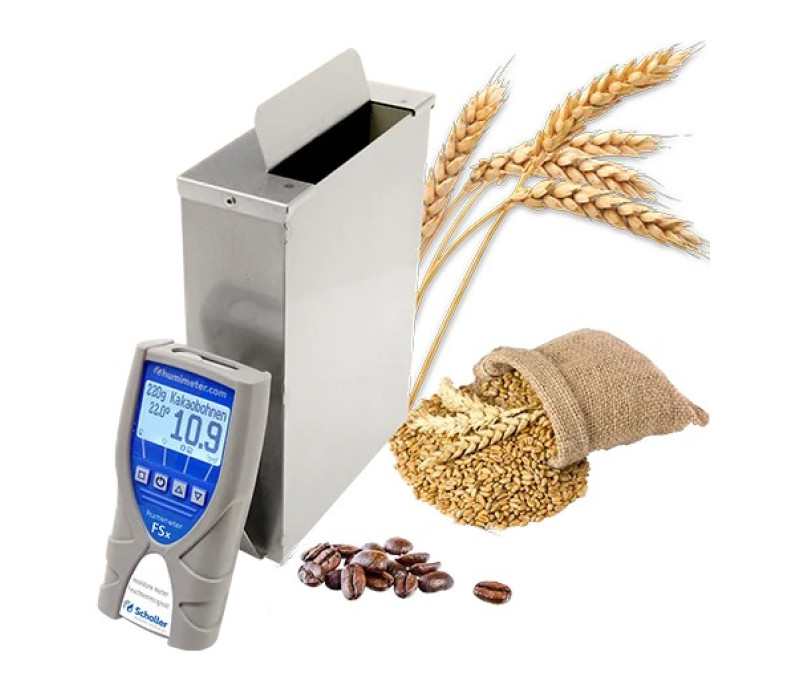

AP-FSx Whole Grain Moisture Meter

Name: AP-FSx Whole Grain Moisture Meter
SKU: 127635

Important Note: The FS2, FS3 and FS4 moisture meters have been discontinued and replaced by the AP-FSx Whole Grain Moisture Meter. The AP-FSx combines their principal grain, seed and agricultural product applications in a single instrument. All specifications and pricing for the AP-FSx are provided below.

Professional whole grain moisture meter for grains, seeds and specialty crops

The AP-FSx is a professional whole grain moisture meter for rapid, non-destructive determination of water content in grains, seeds, pulses and other agricultural and food products. Product-specific sample quantities, typically around 300 g, provide representative measurements without grinding or other sample preparation.

The instrument measures sample temperature and automatically compensates the moisture reading for temperature. Samples are weighed using the supplied digital scale, allowing differences in bulk density to be compensated for improved measurement accuracy and reproducibility.

An extensive selection of calibration curves covers grains, oilseeds, pulses, rice, coffee and other specialty crops. The AP-FSx also provides an integrated data logger for up to 10,000 measurements and USB connectivity for transferring measurement data to a PC using the supplied LogMemorizer Basic software.

Request price >>

Fast, non-destructive measurement of whole grains and other products within seconds
Measuring range: 0 to 50% water content, depending on product and calibration curve
0.1% moisture resolution
Calibration accuracy to reference material: ±0.4%
Product-specific sample quantities, typically around 300 g, for representative measurements
Sample temperature measurement with automatic temperature compensation
Bulk-density compensation using an accurately weighed sample
Integrated data logger for up to 10,000 measurement values
Integrated USB interface for transferring measurement data to a PC
LogMemorizer Basic software for recording, managing and analysing measurement data
Hold and online data-transfer functions
Offset function for adjustment of individual calibration curves
No grinding or other sample preparation required

Calibration Curves

The AP-FSx includes product-specific calibration curves with defined measuring ranges. The quantity shown at the beginning of each calibration curve name is the required sample fill quantity. Select the appropriate calibration curve on the instrument and weigh the specified sample quantity before measurement.

Calibration Curve	Water Content Range
300g Corn	5 to 40%
300g Hand Corn	5 to 40%
300g Rye	5 to 28%
300g Triticale	5 to 28%
300g Wheat	5 to 28%
300g Durum	5 to 28%
300g Spelt Peeled	5 to 28%
300g Barley	5 to 28%
190g Oats	5 to 25%
300g Rape	5 to 18%
230g Pumpkin Seeds	2 to 20%
310g Peas	2 to 25%
300g Soybeans	5 to 18%
295g Horse Beans	10 to 20%
277g Scarlet Runner	5 to 25%
180g Sunflower	5 to 18%
300g Rice peeled	5 to 25%
250g Rice unpeeled	4 to 30%
300g Rice brown	4 to 26%
300g Buckwheat	5 to 18%
300g Buckwheat unpeeled	3 to 25%
300g Millet	5 to 15%
300g Sorghum Millet	5 to 25%
200g Jatropha	5 to 18%
285g Raw Coffee peeled	5 to 18%
180g Coffee unpeeled	5 to 40%
160g Coffee roasted	1 to 20%
150g Coffee grounded	2 to 10%
300g Poppy	5 to 15%
Empty 1 - 10	Free calibration curves for special products
Reference	For testing the moisture meter only

Further calibration curves: Spelt in husk, emmer in husk, alfalfa seeds, hemp seeds, camelina (gold-of-pleasure), legumes and beans, vetch, lupins, lentils, caraway, milk thistle, mustard seeds and amaranth.

Customer-specific calibration curves can also be developed and added to the instrument.

AP-FSx Whole Grain Moisture Meter
USB data interface module
LogMemorizer Basic measurement data recording and analysis software
USB cable for PC connection
Digital weighing scale
0.5 L measuring cup
Protective carrying case
Rubber protection cover
4 x 1.5 V AA alkaline batteries

Measuring Range	0 to 50% water content, depending on product type and calibration curve
Resolution	0.1% water content
Calibration Accuracy	±0.4% to reference material
Sample Quantity	Product-specific; typically approx. 300 g Calibration curves listed in the current FSx manual use sample quantities from 150 to 310 g
Sample Temperature	0 to 40°C
Compensation	Sample temperature measurement with automatic temperature compensation Bulk-density compensation using an accurately weighed sample
Measurement	Within seconds without sample preparation Non-destructive measurement
Memory	Manual data logger for up to 10,000 measurement values with measuring-point information Hold function Online function
Data Interface	Integrated USB interface for PC data transfer Compatible with LogMemorizer Basic software
Calibration Adjustment	Offset function for adjustment of the selected calibration curve 10 free calibration-curve positions for special products
Reference Methods	Corn: EN ISO 6540 Oilseeds: EN ISO 665 Grain: EN ISO 712 Legumes and beans: EN ISO 24557
Dimensions	260 x 70 x 250 mm
Weight	1.3 kg including batteries
Power Supply	4 x 1.5 V AA alkaline batteries
Menu Languages	English, German, Italian, French, Spanish, Portuguese, Czech, Polish, Russian and International

Products

Item	Product
140833	AP-FSx – Whole Grain Moisture Meter Kit

Accessories

Item	Product
131808	Battery-Powered Thermal Printer - USB Meters
132025	FS-ISO - ISO measuring device check for AP-BP1/AP-FSx
132022	Calibration Certificate - Factory calibration certificate protocol for material moisture meters
133007	Humi-Create-Cal - Creating new calibration curve/laboratory analysis for new material
133006	Add-Cal - Adding existing curve to instrument
132892	AP-FSG/FSx-ADAPTER - Power supply unit for continuous operation of the scale
139547	Li-Ion Rechargeable AA Batteries - 4 pcs (with USB to USB-C cable)

All prices shown exclude VAT and shipping costs.
