A2108 Tachometer with Analog Output

A2108 Tachometer with Analog Output

Name: A2108 Tachometer with Analog Output
SKU: 126510

3 Models Available:

A2108: Basic Model
A2108-LSR: Basic Model with laser light source

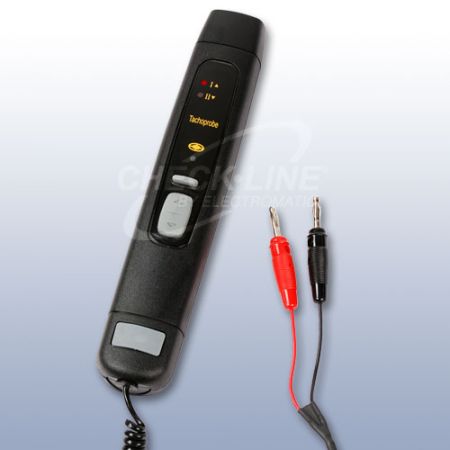

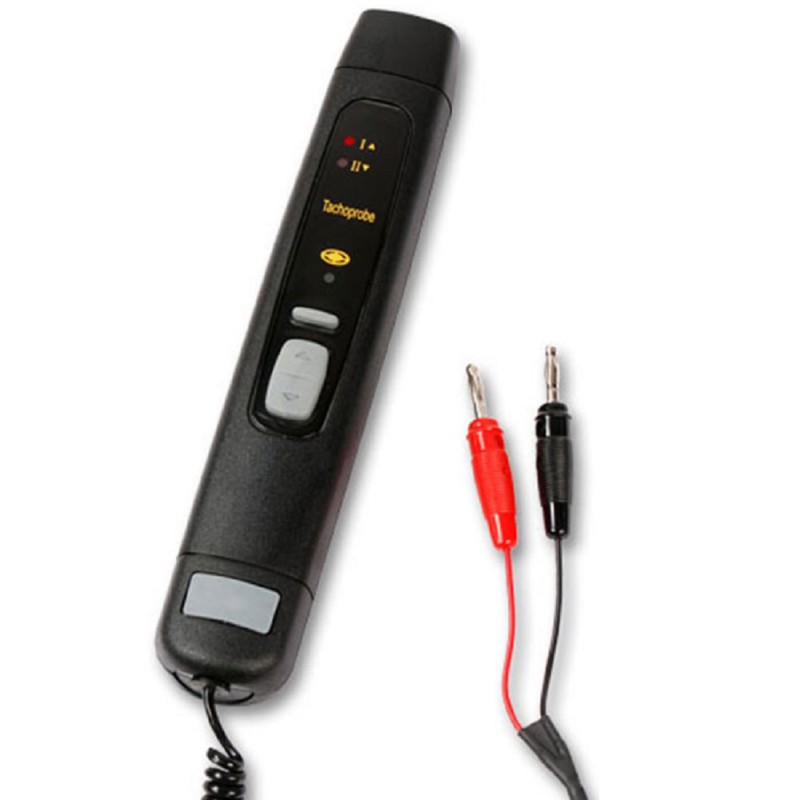

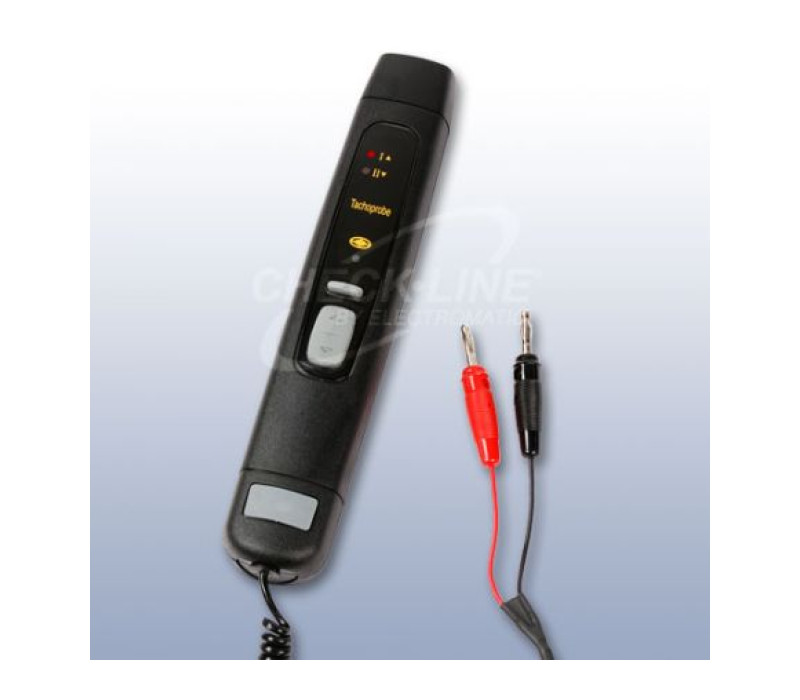

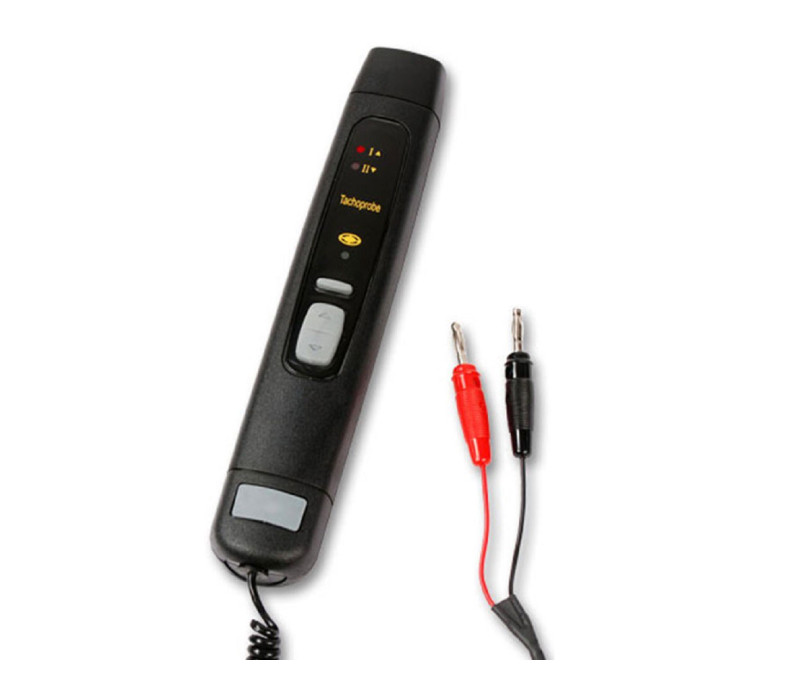

The A2108 Non-Contact Tachometer converts RPM into an analog (voltage) output signal allowing you to use any Digital Multimeter, Data Acquisition System or Voltage Recorder as an RPM display. Optional Contact adapter allows you to measure contact RPM or surface speed.

The voltage output on the A2108-LSR Analogue Output version provides 1mv/rev = 6vdc @ 6000 rpm.

The A2108-LSR-232 version provides direct serial data output to your PC, a serial cable & a CD with Logging software is supplied with this model.

The A2108-LSR version is switched On manually, using the continuous mode feature. option, provided continuous measurement is taking place the Probe will remain in the ON mode. An Auto OFF feature provides shutdown if no activity is logged for 1 minute.

Price from € 371,00

Order now

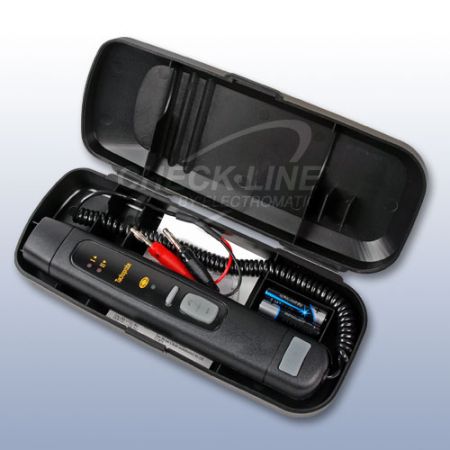

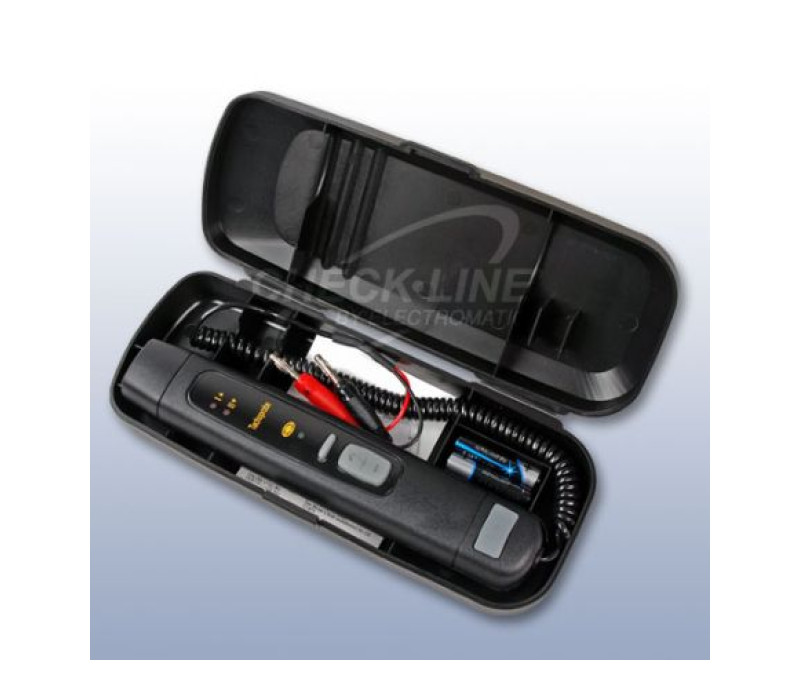

The A2108 is delivered as a complete kit including:
- A2108 tachometer
- Custom carrying case
- Instruction manual
- Calibration certificate
- Reflective tape

Speed ranges A2108 / A2108-LSR:	Range I: 100 - 6000 RPM Range II: 1000 - 60,000 RPM
Speed ranges A2108-LSR-RS232	100 - 60,000 rpm continuous
Resolution A2108 / A2108-LSR A2108-LSR-RS2	+/- 1.5mV +/- 1 rpm
Accuracy A2108 / A2108-LSR A2108-LSR-RS232	+/- 0.5% +/- 0.1%
Optical Range A2108 A2108-LSR(-RS232)	50 - 1000mm Up to 2m (6ft)
Optical Angle A2108 A2108-LSR(-RS232)	+/- 45 degrees +/- 80 Degrees
Light Source A2108 A2108-LSR(-RS232)	Tungsten Filament Laser Class II 635nm
Range Select	Up Arrow = I. Down arrow = II.
Carry Case	Included
Contact Adapter	Optional
Voltage Output	-6 VDC Both Ranges
On Target Indicator	Green LED
Power	4 x AAA batteries (included)

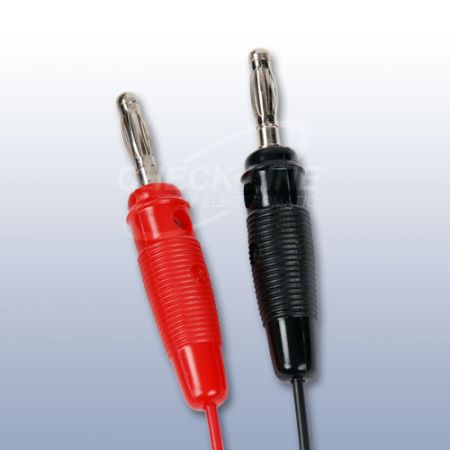

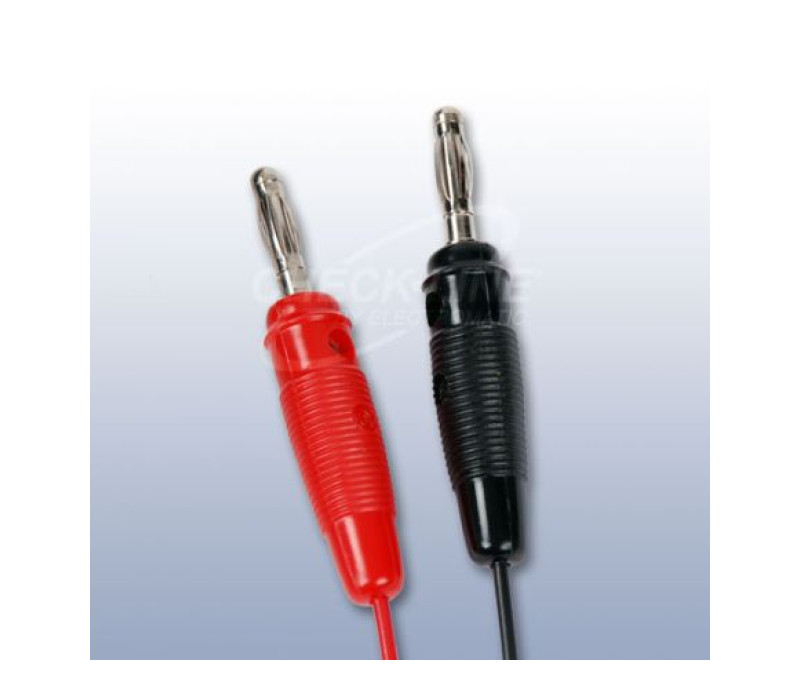

Connections A2108 A2108-LSR A2108-LSR-	Coiled cable with 2 x 4mm plugs fitted Binder connector + 1m cable 1m Cable + Serial plug
Mounting	Camera bush fitted
Zero offset	Max. 6mV - Analogue version (A2108-LSR)
Update time	Time of one revolution or 1 millisecond (A2108-LSR)
Controls	2 x press to measure buttons, one continuous mode button (A2108-LSR)
Capture mode	0.1 sec (A2108-LSR-RS232)
Controls	On, Invert, Capture, Ratio (A2108-LSR-RS232)

Products

Item	Product	Price
130892	A2108 - Advent Optical/Contact Multimeter Probe	€ 371,00
130893	A2108/LSR - Laser Tachometer - Analogue Output	€ 465,00
130894	A2108/LSR/232 - Laser Tachometer - RS232 Output	€ 506,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
