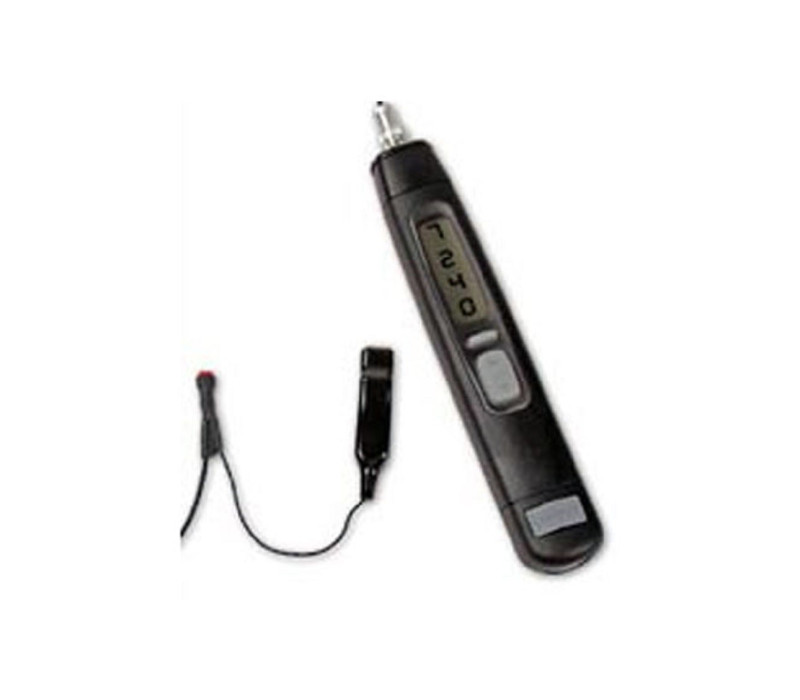

A2106 Advent Diesel Engine Tachometer

A2106 Advent Diesel Engine Tachometer

Name: A2106 Advent Diesel Engine Tachometer
SKU: 126508
Price: 509.00 EUR

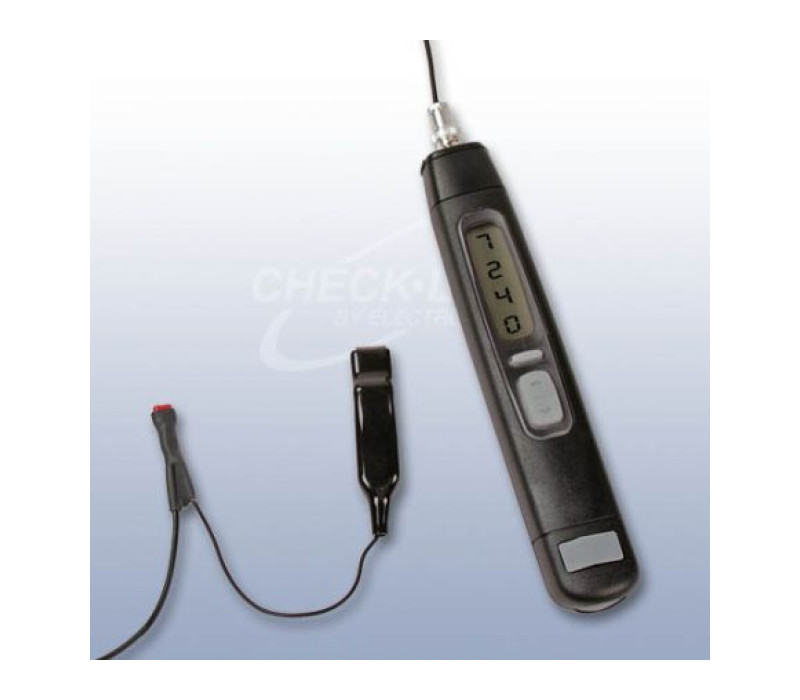

The A2106 is an ideal test Tachometer for most diesel engine applications, it functions with all types of Diesel engines (where exposed injector pipes exist). The speed is sensed by a transducer clamped around an injector pipe, the correct size sensor is required for each pipe diameter.

Automatic Measurement - Auto switch off
The units operate continuously once powered on, measurement will be automatic while speed pulses are being received from the Transducer, after approximately 5 minutes of inactivity the instrument switches off.

Inverting display
This unique feature allows the Tachometers to be used through 180 degrees rotation, providing easy readability in difficult applications.

Maximum revs capture mode
Allows the user to take “single shot” peak speed checks on machines with automatic overspeed governors and centrifugal clutch checking, the actual maximum speed is held in the display.

€ 509,00

Order now

Ideal for checking fast idle & maximum governed speeds
Speed range 60 - 8,000 rpm
1 rpm resolution
Ideal for most 4 Stroke and 2 Stroke Diesels
Range of Injector pipe Transducers available for 4.5mm - 10mm dia. Pipes
Reversible display
Hands free operation mode
Inverting display adds versatility

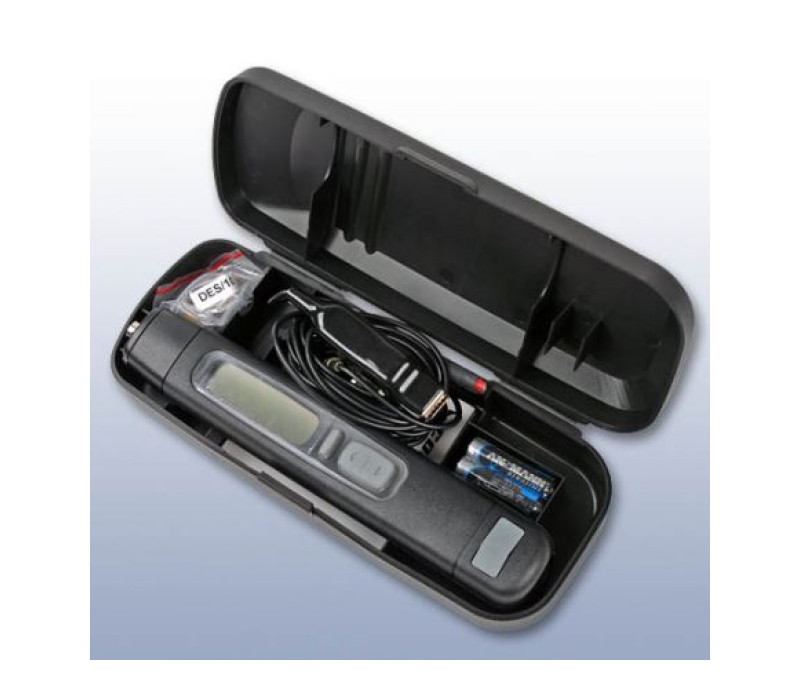

The A2106 is delivered as a complete kit including:
- A2106 diesel engine tachometer
- hard plastic carrying case
- AAA batteries
- Transducer cable
- Transducer DES/10 (6mm)
- Instruction manual
- Calibration certificate

Speed Range	60 to 18,000 rpm
Resolution	10 rpm
Accuracy	0.05% +/- 1 digit
Update	0.8 sec (normal mode)
Capture mode	0.1 sec
Controls	On, invert, capture, select ratios 1:2 or 1:1
Auto Off	Auto shutdown if inactive for 5 minutes
Signal Indicator	Yes, in display
Low Battery Indicator	Yes, in display
Power	4x AAA batteries
Transducer Cable	1 metre cable connectors included
Carrying Case	Included

Injector pipe Transducers Standard

Codes	Pipe Size
DES/09	4.55mm
DES/10	6.00mm
DES/11	6.35mm
DES/12	8mm
DES/14	7mm
DES/15	10mm

Products

Item	Product	Price	Quantity	Action
130890	A2106 - Advent Diesel Engine Tachometer	€ 509,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
