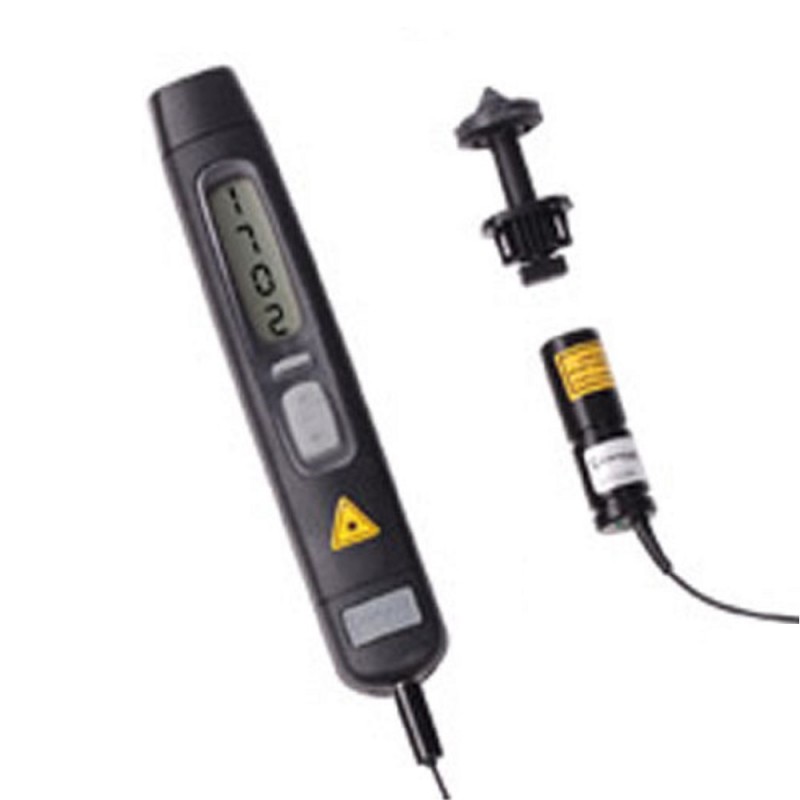

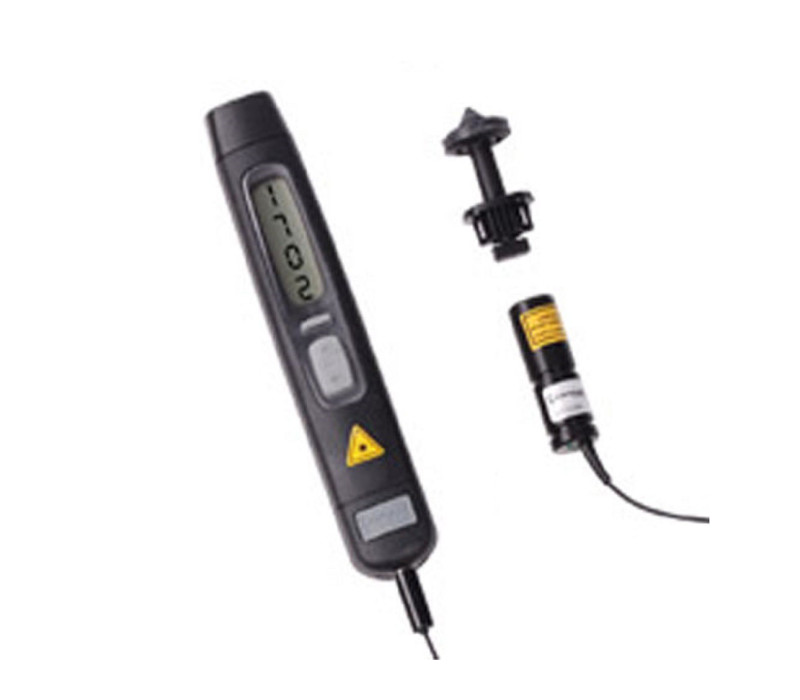

A2103-LSR-K Advent Professional Optical/Contact Tachometers

Name: A2103-LSR-K Advent Professional Optical/Contact Tachometers
SKU: 126507
Price: 652.00 EUR

Signal input features 5v Pulse Signal is via the 3,5mm stereo Jack socket on the rear of housing, provided for MiniLaser Remote Sensor input. This can be used to measure any pulse rate signal up to 5v p-p.

Contact Measurement
Measurement units - Revs - Metres - Feet - Yards per min and per second or length in 0/1 metres units Time interval or reciprocal speed- for very slow rates in seconds/rev Count mode - counts distance or revs.

Additional information
Special capture and averaging features:
Maximum - Captures max. speed in 0.1 secs
Minimum - Captures min. speed in 0.1 secs
Timebase - 0.1 seconds in Capture mode
Average - Averages over last 8 readings

€ 652,00

Order now

Time & Count modes
Data capture and very fast response modes - 0.1 seconds update time
Optical range of up to 2 metres - the optical performance is second to none
Traceable certificates supplied as standard
A very versatile multipurpose Tachometer/Counter, with both Optical or Contact rpm, linear rate/distance ranges
Additional remote Laser Optical Sensor for rpm monitoring in difficult access applications
Unique inverting display, allows easy reading when in limited access situations

Laser	internal & remote
Optical Range	50 - 2000 mm
Angle	+/- 80 degrees
Light Source	1mw Laser 635nm class II
Speed Range	3 - 99,999 RPM or RPS equivalent
Resolution	max. 0.001 (autorange)
Accuracy	0.05% +/- 1 digit
Update	0.8 sec
Capture Mode	0.1 sec
Count	0-99999 revs or length in linear
Time Interval	0-99999 secs (autoranging)
Memory	Holds last reading 1 minute
On Target Indicator	Yes
Low battery indicator	Yes
Signal Input	3.5mm socket for external optical sensor
Remote Sensor	MiniLaser with 1 metre cable included
Power	4 x AAA batteries (included)
Contact Adapter	Included
Carrying Case	Included
Reflective Tape	Pack of tape included

Products

Item	Product	Price	Quantity	Action
131120	A2103/LSR/K - Advent Professional Optical/Contact Tachometer	€ 652,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
