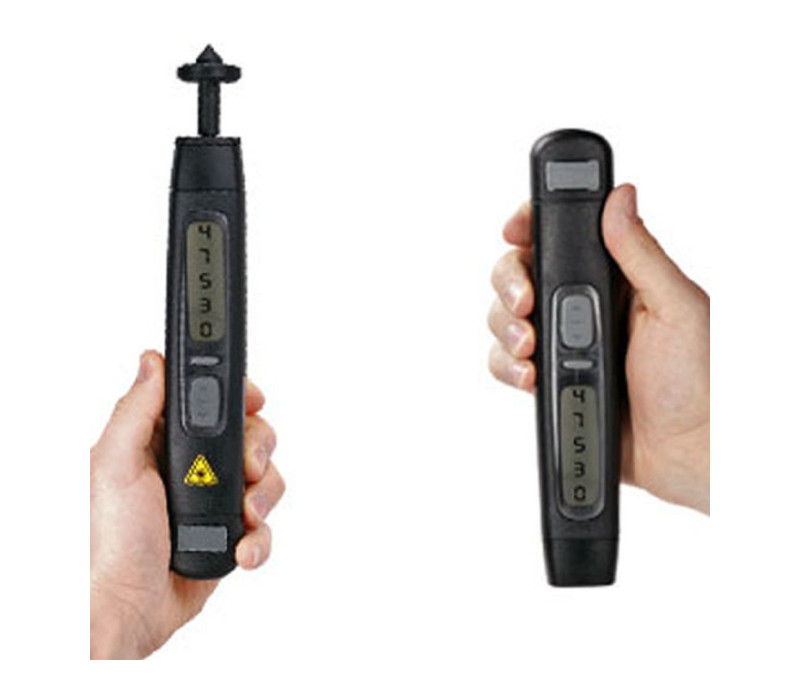

A2103 Advent Professional Optical/Contact Tachometers

A2103 Advent Professional Optical/Contact Tachometers

Name: A2103 Advent Professional Optical/Contact Tachometers
SKU: 126506

The A2103 tachometers are fully featured including 5 digit LCD inverting display with legends for all functions and measurement parameters, selectable ranges for revs, metres, feet, yards per minute or per second. With additional features including maximum, average and minimum reading capture, last reading hold, count revs or length & time modes.

A2103-LSR-001 - Multi function Optical/Contact Counter, Timer & Speed Sensor with signal output facilities.
This model is a very versatile dual purpose instrument, operating both as a multirange Optical or Contact Tachometer, Counter, Timer or a self powered remote Optical Sensor for machine monitoring requirements.

A TTL type pulse output facility and camera tripod mounting bush are standard features, designed for both hand held and fixed situations for monitoring continuous and occasional speed of machines.

Signal Output features - Model A2103-LSR-001
Pulse Output facility - 5v Pulse output. Output via socket on rear of housing, supplied with 2 metre BNC output cable.

This model has these additional features:
- Pulse output facility
- Tripod bush
- Signal output cable - 2 metres free ends
- Remote on/off via cable

Price from € 383,00

Order now

Speed Range	3 to 99,999 rpm and rps
Resolution	max. 0.001 (auto)
Accuracy	0.05% +/- 1 digit
Update	0.8 sec
Capture	mode 0.1 sec
Count	0-99999 units
Time Interval	0-99999 secs (autoranging)
Memory	Holds last reading 1 minute
On Target Indicator	Yes
Low Battery Indicator	Yes
Power	4x AAA batteries
Contact Adapter	Included

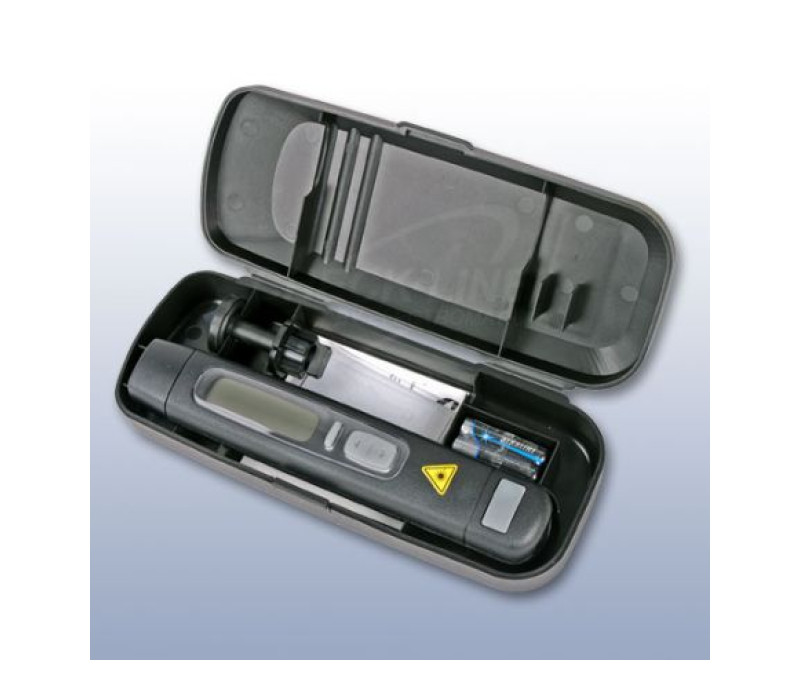

Carrying Case	Included
Maximum Speed	Captures maximum speed
Minimum Speed	Captures mininimum speed
Fast Timebase	0.1 seconds in Capture mode
Average	Averages over last 8 readings
Optical Range	50 - 1000 mm
Optical angle	+/- 45 degrees
Light	5v minilamp
Optical Range	50 - 2000 mm
Optical angle	+/- 80 degrees
Laser	Class II

Products

Item	Product	Price
130886	A2103 - Advent Professional Optical/Contact Tachometer	€ 383,00
130887	A2103/LSR - Advent Professional Optical/Contact Tachometer-Laser Model	€ 504,00
130888	A2103/LSR/001 - Advent Professional Optical/Contact Tachometer - Laser Model + Pulse O/P	€ 686,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
