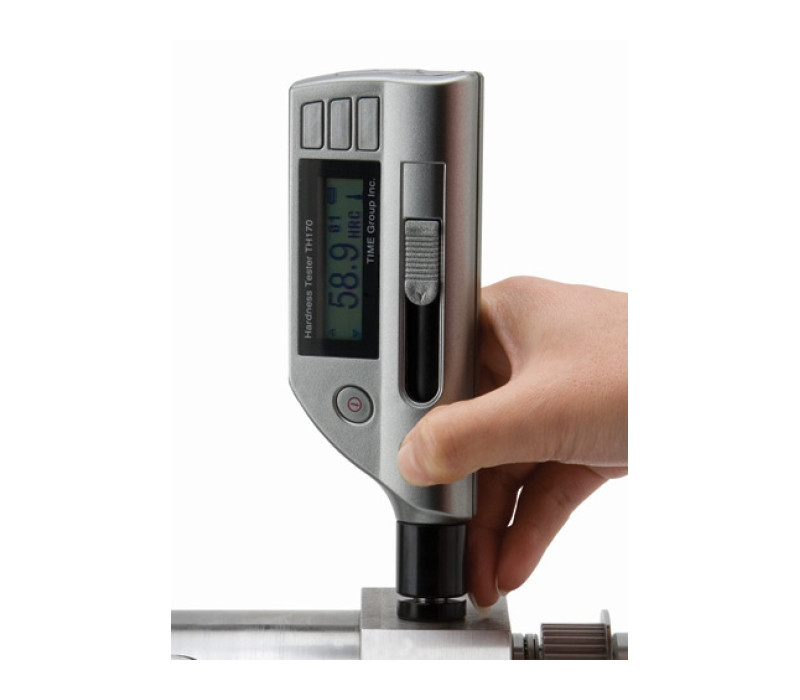

    TIME 5100/5102/5104 Portable Metal Hardness Testers

    The TIME 5100, TIME 5102 and TIME 5104 hardness testers are compact and work according to the dynamic rebound testing method by Leeb.

    Leeb hardness testing was developed in 1975 in Switzerland and is now one of the most used portable hardness testing methods available.
    These device excel in their fast and reliable measurements, they are compact, light and easy to operate.

    The TIME 5100 series comes in three different models,

    The TIME 5100 is the standard model of the range, it has an integrated D type impact device and works well on test object of ≥5kg (2kg on solid support) that has a roughness of ≤1,6μm(Ra) on the measured surface.
    With an accuracy of 0.5% ±3HLD and gravity compensation for testing at any angle the TIME 5100 provides accurate and reliable test results on a wide variation of objects.

    The TIME 5102 comes with a C type low impact device that is fully integrated. With its lower impact, ±25% of the D impact device, it can measure objects of ≥1,5kg (0,5kg on solid support) with a minimum thickness of 1mm and a surface roughness of ≤0,4μm(Ra).
    It has an accuracy of 1% ± 6HLC and can measure a maximum hardness value of 1000 HV (Vickers). This device is especially suitable for thin walled objects, coatings and/or objects with a thin, ≥0,2mm, case hardened depth.

    The TIME 5104 is more specific in its purpose, it is equipped with a DL impact device for tight spaces. This impact device with its specially designed protruding needle can measure in narrow spaces that cannot be reached with a normal tester.
    The TIME 5104 has an accuracy of 2% ± 12HLC and it shares its other specs with the TIME 5100 with the minimum weight of a test object of ≥5kg (2kg on solid support) and a roughness of ≤1,6μm(Ra).
    The TIME 5104 is equipped with a rechargeable Li-ion Battery.

    The TIME 5100, TIME 5102 and TIME 5104 are developed to measure the hardness of metallic surfaces such as Steel, cast steel, cold work tool steel, stainless steel, grey/nodular cast iron, aluminium, cast aluminium alloys, brass, bronze and wrought copper alloys.
    Features like their compactness, easy calibration and gravity compensation for testing at any angle make them very usable and efficient in a workshop, a warehouse, as part of a FAT or in the field.

    Typical applications for these devices are:
    - large, heavy components or fixed machine parts
    - serial products during the production process
    - material identification in storage
    - measurement on locations with difficult access

    The TIME 5100 and TIME 5102 work with easy to replace AA batteries, the TIME 5104 comes with an integrated Li-ion battery. All three versions have a large backlit LCD display, integrated software, a memory of 270 readings in 9 group files and can be connected to a computer or mini printer. PC connection is assisted by Software Dataview (optional) TH51X (especially for TH51X series Hardness Test) with both online measurement and offline data analysis mode：curve chart, data sheet, setting of tolerance limit and data report are available. The devices are easy to calibrate and come in a kit with manual, the appropriate, ASTM/ISO certified, hardness block, a cleaning brush and a certificate.

    If you have any questions feel free to contact us for more information.
    Price from € 1.361,00
    Order now
    • Handheld dynamic metal hardness tester
    • Conversion of hardness scales Rockwell HRB, HRC, Vickers HV, Brinell HB, Shore HS, HLD/C/DL
    • Stores up to 270 average readings in 9 group files
    • Automatic identification of impact test direction with gravity compensation
    • Integrated impact device, no cables!
    • Upper /lower limits setting
    • Dynamic rapid hardness test procedure
    • Wide measuring range
    • For all metallic materials
    • Simple handling and low test expenditure
    • Clear LCD display showing all functions and parameters
    • Backlit display for convenience in darkness
    • Optional Dataview software for data analysis and processing
    • Confirming to ISO 18659 and ASTM A 956
    • Optional printer available
    Scope of delivery


    The Impact hardness tester will be delivered including:

    • Test block with HLD/C/DL value
    • ISO/ASTM Certificate for test block
    • AAA Batteries (2pcs) for 5100/5102
    • Charger for TIME 5104
    • Support ring small
    • Cleaning brush
    • Coupling paste
    • USB communication cable
    • Manual
    • Certificate
    • Carrying case
    Impact device:D (standard) integrated
    Workpiece radius (convex/concave):Rmin = 50mm (with support ring Rmin = 10mm)
    Workpiece minimum weight:2kg on solid support (0.1kg with couplant paste)
    Workpiece min. thickness coupled:3mm
    Workpiece min. case hardened depth:0.8mm
    Impact device:C integrated
    Workpiece radius (convex/concave):Rmin = 50mm (with support ring Rmin = 10mm)
    Workpiece minimum weight:0.5kg on solid support (0.02kg with couplant paste)
    Workpiece min. thickness coupled:1mm
    Workpiece min. case hardened depth:0.2mm
    Impact device:DL integrated
    Workpiece radius (convex/concave):Rmin = 10mm
    Workpiece minimum weight:2kg on solid support (0.1kg with couplant paste)
    Workpiece min. thickness coupled:3mm
    Workpiece min. case hardened depth:0.8mm
    Workpiece max. hardness value:940HV
    Measuring range:HRC: 20 to 68
    HRB: 13 to 102
    HRA: 59 to 86
    HB: 30 to 680
    HV: 80 to 970
    HS: 32 to 100
    HL: 200 to 900
    Accuracy:Within ± 0.5% (at HLD = 800)
    Measuring tolerance:± 1.5 %
    Statistics:mean value, number of readings
    Print-out of readings:simultaneous or batch printing, with attachable mini-printer
    Data memory:the first 99 readings
    Power:Rechargeable battery NiMH 3.6V, 70mAh
    Charger:9V, 200mA (1.8VA)
    Charging time:8 hours
    Operating temperature:5 °C to 50 °C
    Dimensions:150mm x 22mm x 53mm
    Weight:130 g
    Output: USB

    Video
    Video Preview for ID: f8-SlhnzTLE
    ▶

    Accessories

    Browse Accessories

    Li-Ion Rechargeable AA Batteries
    Li-Ion Rechargeable AA Batteries

    Order Now

    Products
    Item Product Price  Quantity Action
    138706T-5100 Impact-D Portable Hardness Tester € 1.361,00
    138705T-5102 Impact-C Portable Hardness Tester € 1.782,00
    138707T-5104 Impact-DL Portable Hardness Tester € 1.992,00
    Accessories
    Item Product Price  Quantity Action
    140536Dataview software for T-5100 series € 179,00
    139547Li-Ion Rechargeable AA Batteries - 4 pcs (with USB to USB-C cable) € 25,00

    All prices shown exclude VAT and shipping costs.
    Availability:
    Available: 1 - 3 days ,
    Delivery time: 1 - 3 weeks ,
    special order request
