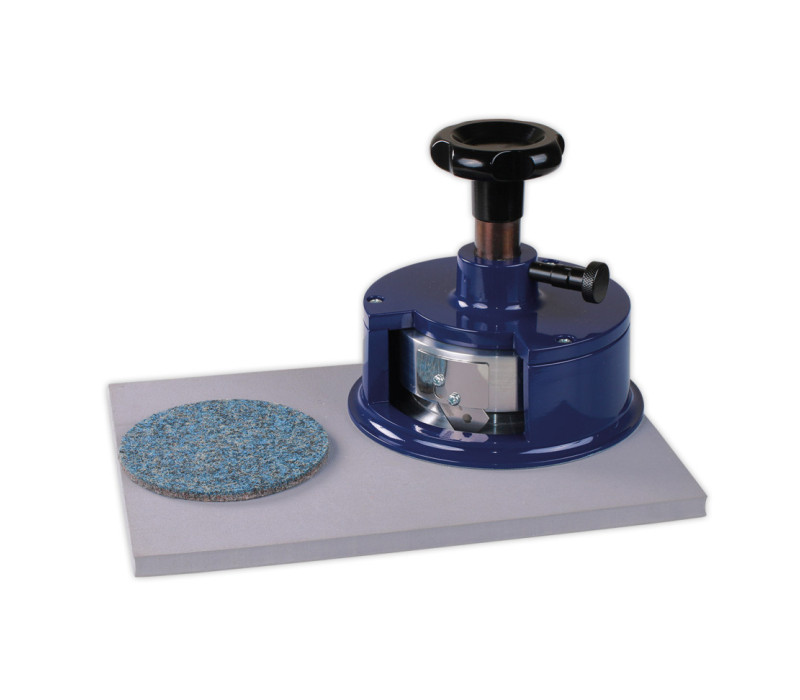

231-100 Circular Sample Cutter

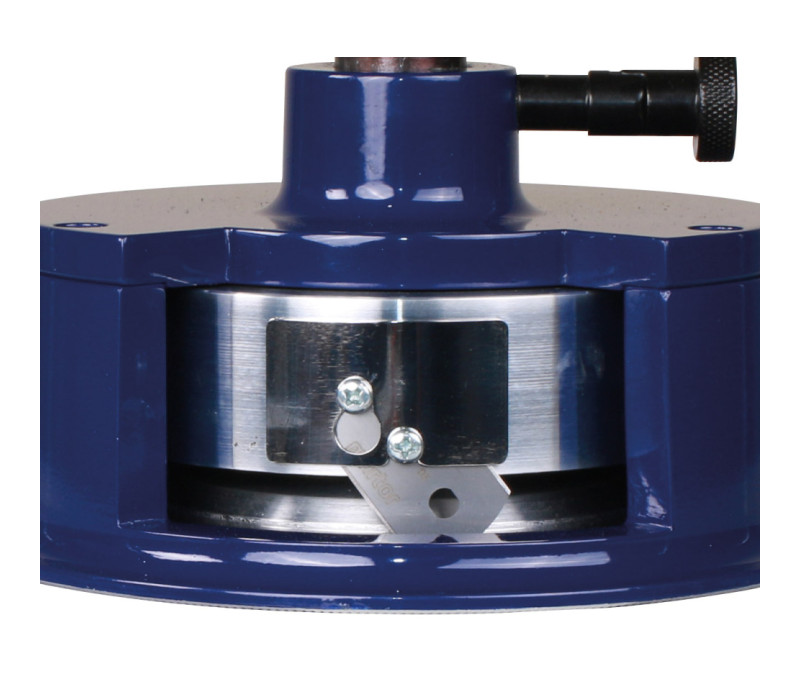

4 - blades

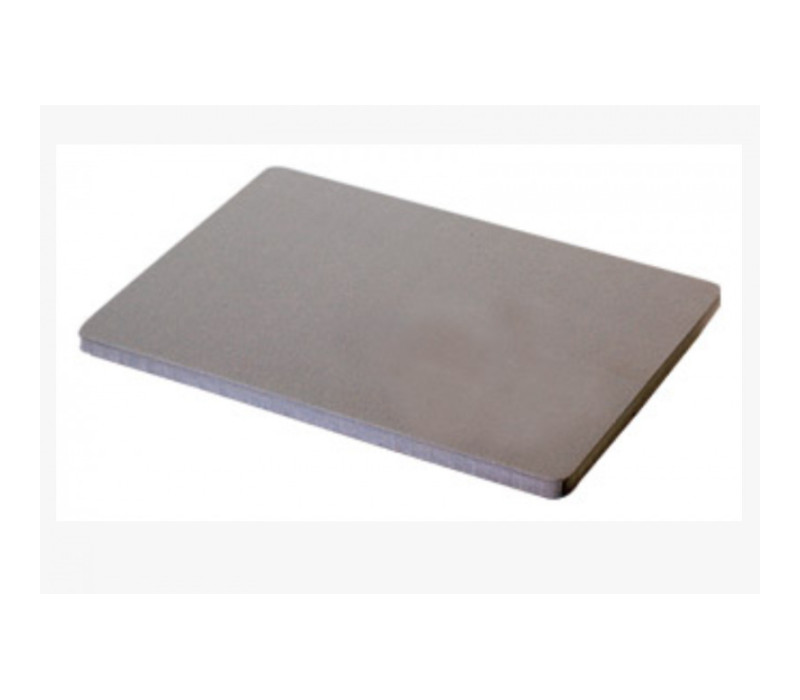

130586 - 60003M - Rubber plate for sample cutter

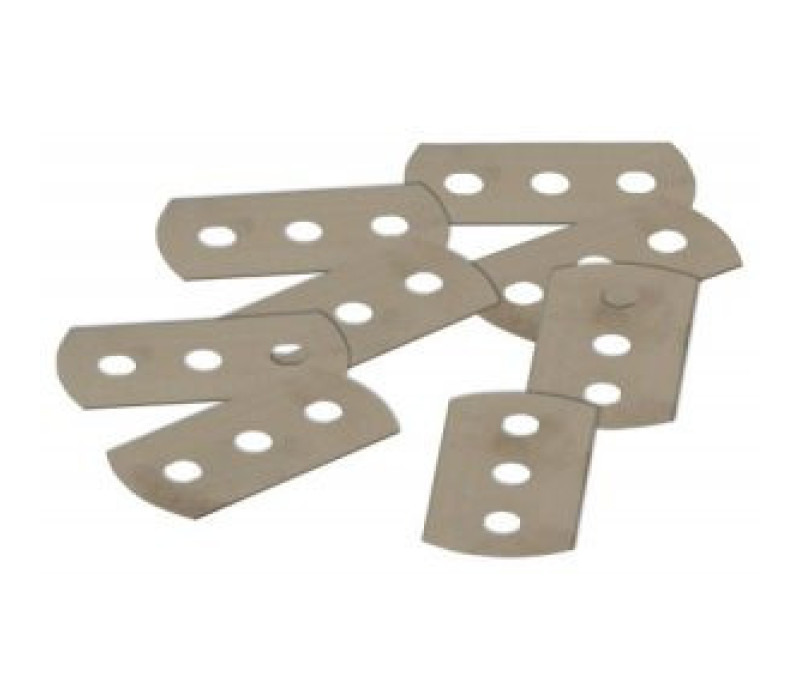

130587 - 60001M - Spare blades for sample cutter

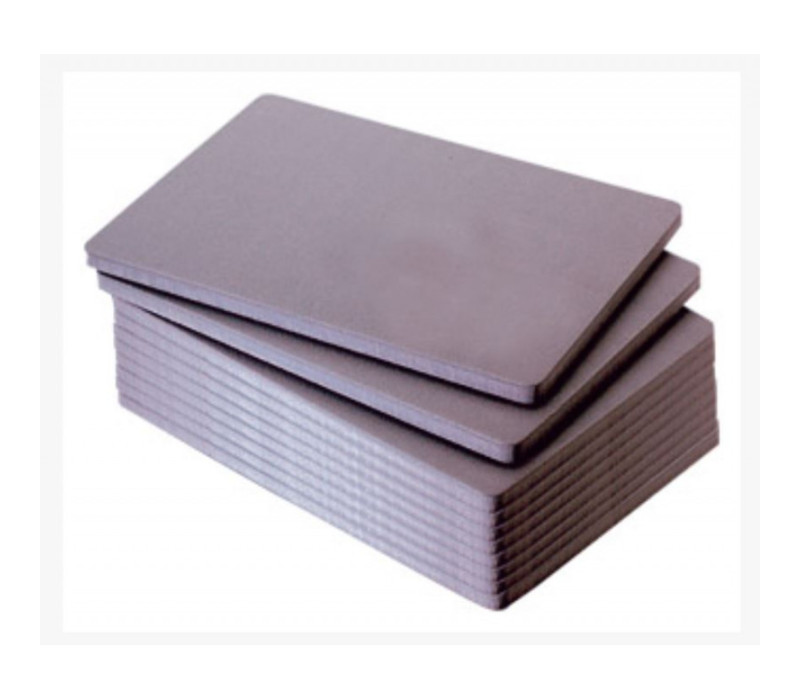

130417 60004M - Rubber plates for sample cutter (10 pcs)

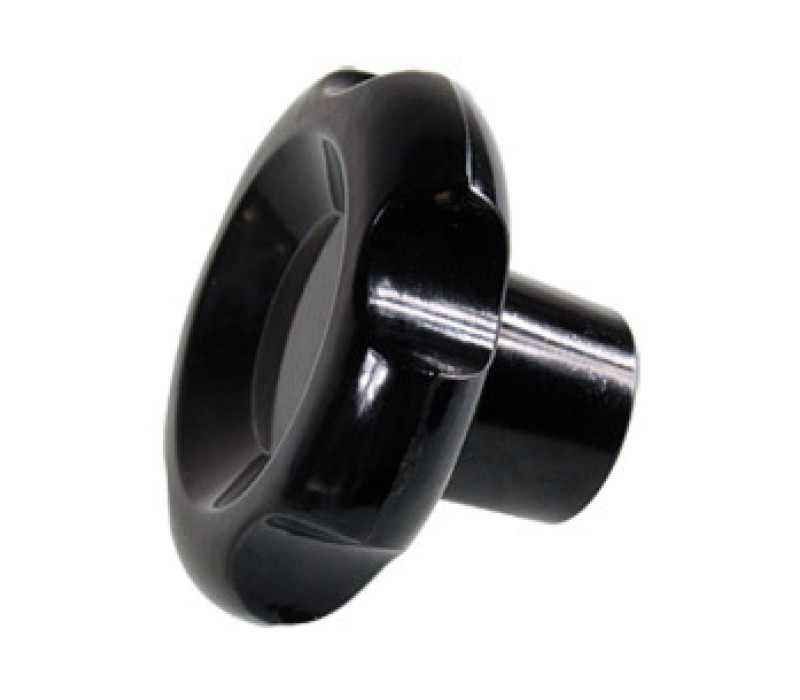

139359 - 60009M - Spare Handle for sample cutter series 230-231

231/100 - Circular Sample Cutter

This round cutter can be used to cut samples or specimens from materials for analysis, testing, or inspection. The 231/100 Sample Cutter has a sample cutout 100 cm2, Ø 113 mm, for max. 10 mm material thickness.

This model is very easy and save to use:

Position the material to be cut on the rubber plate while maintaining tension to prevent creases.
Center the sample cutter on the material, ensuring it rests preferably at the midpoint of the rubber plate.
Disengage the blocking pin by pulling it out and rotating it 90°.
Turn the hand wheel in a clockwise direction, completing slightly more than a 1/4 rotation (90°), while applying gentle downward pressure.
Secure the blocking pin by pulling it out and rotating it 90°.
Raise the sample cutter and retrieve the completed sample.
After each use, store the instrument with the blocking pin in the safety position (pressed in) to prevent hand injuries and blade damage.

This Circular Sample Cutter is commonly used in various industries, including textiles, paper, plastics, leather, and more.
According to International norms: ISO 3801, ISO 12127, ISO 536, ISO 186, ISO 1183-1:2012, ISO 9864, EN 12127, ASTM-D3776-D3776M-20, ASTM D2646

The use of a sample cutter ensures consistent and precise samples, which are crucial for reproducible test results and analyses in laboratories and production environments.

Designed to precisely cut samples of various materials, such as woven, non-woven, knitted fabric, fleece, carpet, films, foil or paper. To cut accurate circular samples with smooth edges.

Typical used to determination weight per unit area of fabric, paper etc.
Even difficult materials such as fine knits, thin films, tissue paper, corrugated cardboard and synthetic leather can be cut conveniently.

Weight per m2, Textile fabrics	ISO 3801
Weight per m2, Knitted fabrics	ISO 12127
Weight per m2, Paper	ISO 536 // ISO 186
Weight per m2, Plastic/film	ISO 1183-1:2012 only par. 5.1.4.1
Weight per m2, Geotextile	ISO 9864
Pile weight/m2	EN 12127

€ 646,00

Order now

Max. 10 mm material thickness
Sample cutout 100 cm2
Ø 113 mm
Designed to precisely cut samples of various materials, such as woven, non-woven, knitted fabric, carpet, films or paper

Sample cutter 231/100 with (4) blades installed
1 rubber plate
4 spare blades
Operating instructions

Cutting Thickness	max. 10 mm
Sample Cut-Out	100 cm²
Sample Diameter	113 mm
Number of blades	4
Dimensions (HxØ):	160 x 170 mm
Weight net (gross):	2600 g (3350 g)

Products

Item	Product	Price	Quantity	Action
139354	Sample Cutter Model 231/100	€ 646,00

Accessories

Item	Product	Price
130587	60001M - Spare blades for sample cutter model 240/100 - 230/140 - 231/100 - 230/50 (100 pcs)	€ 50,00
132249	60001M2 - Spare blades for sample cutter model 240/100 - 230/140 - 231/100 - 230/50 (20 pcs)	€ 10,00
130417	60004M - 10 Pcs Rubber plates for sample cutter / Size: 300x 200x10 mm (10 pcs)	€ 110,00
130586	60003M - Rubber plate for sample cutter / Size: 300x 200x10 mm (1pc)	€ 11,00
139359	60009M - Spare Handle for sample cutter series 230/231	€ 125,00
132136	60002M - Spare Blades for sample cutter 230/100 (20 pcs)	€ 87,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
