230-50 Circular Sample Cutte

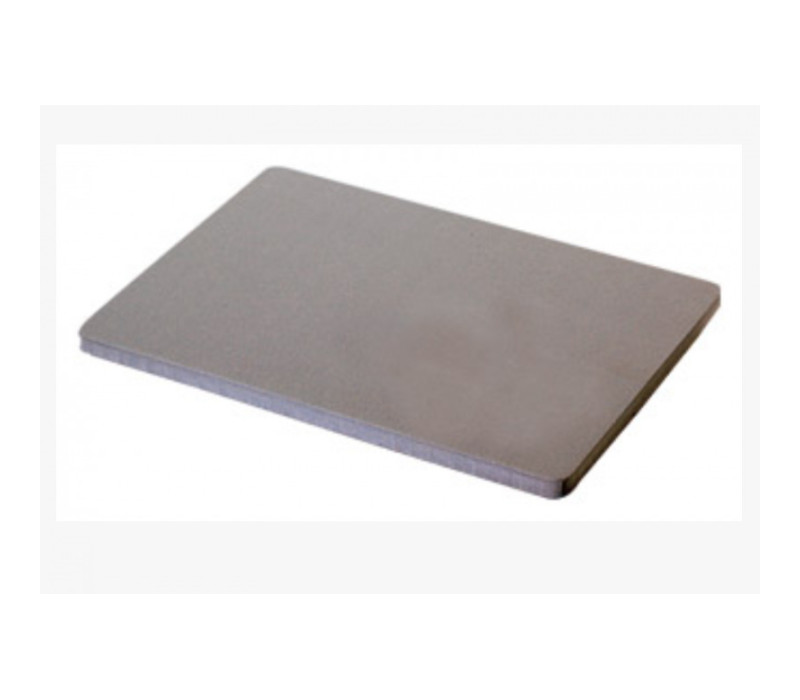

130586 - 60003M - Rubber plate for sample cutter - Size: 300x 200x10 mm (1pc)

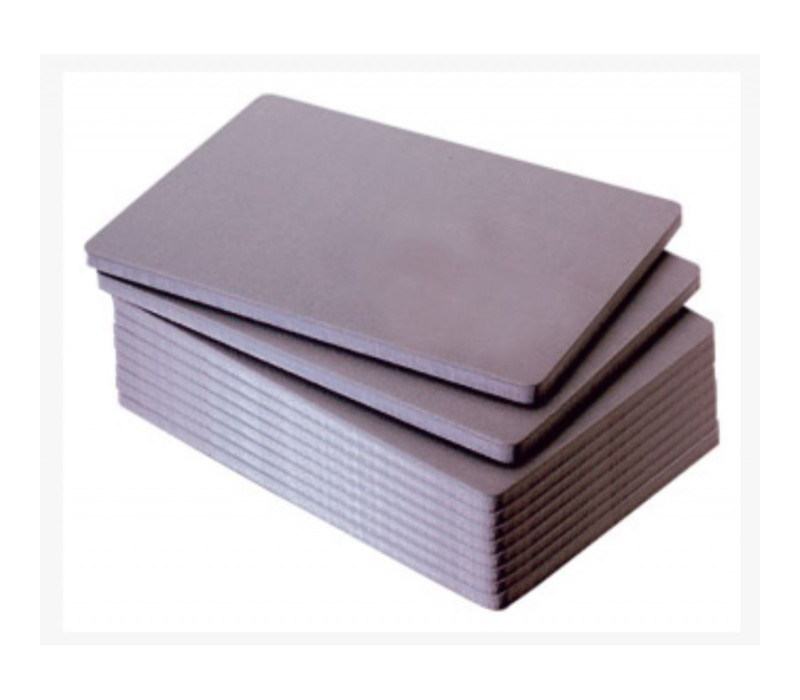

130417 - 60004M - Rubber plates for sample cutter - Size: 300x 200x10 mm (10 pcs)

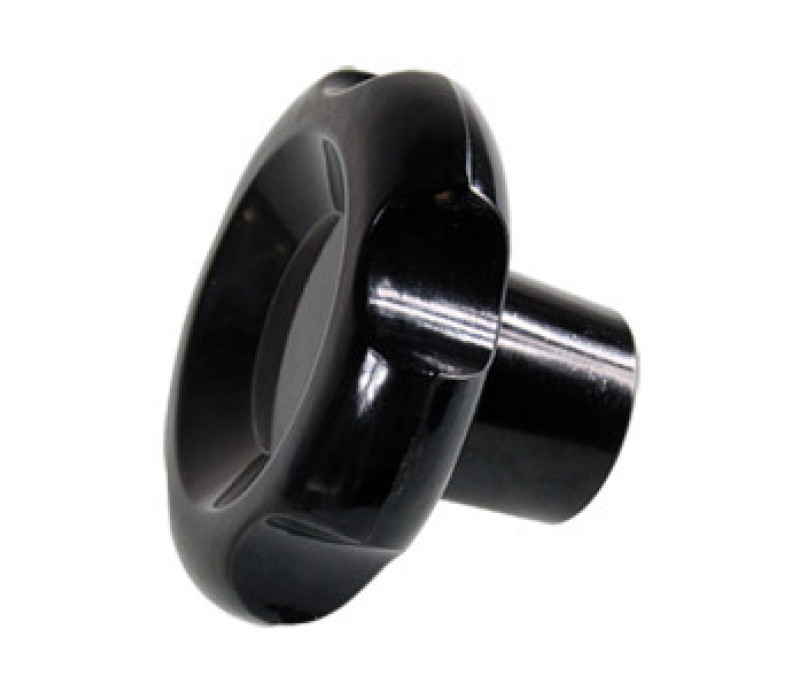

139359 - 60009M - Spare Handle for sample cutter series 230/231

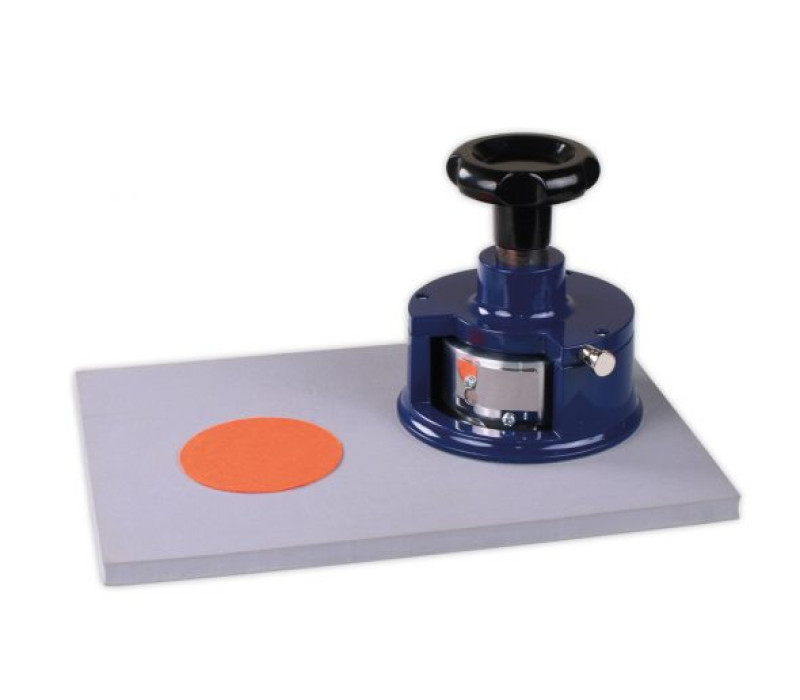

230/50 - Circular Sample Cutter

The 230/50 cutters are crafted to precisely extract samples from a variety of materials including fabrics, fleece, knitted fabric, foil, or paper, for the determination of weight in grams per square meter (g/m²).
According to international norms such as: ISO 3801, ISO 12127, ISO 536, ISO 186, ISO 1183-1:2012, ISO 9864, EN 12127, ASTM-D3776-D3776M-20, ASTM D2646 samples with a dimensions of 50 cm2, Ø 80 mm, are then taken and weighed, so the mass per unit area can be calculated, weight in g/m².

Circular cutter suitable for materials with a maximum thickness of 5 mm.

Crafted for precision, our cutters are tailored to cut samples of diverse materials including fabric, fleece, knitted fabric, foil, and paper, with a maximum thickness of 5 mm.
Our circular cutter facilitates swift cuts, covering an area of 50 cm².

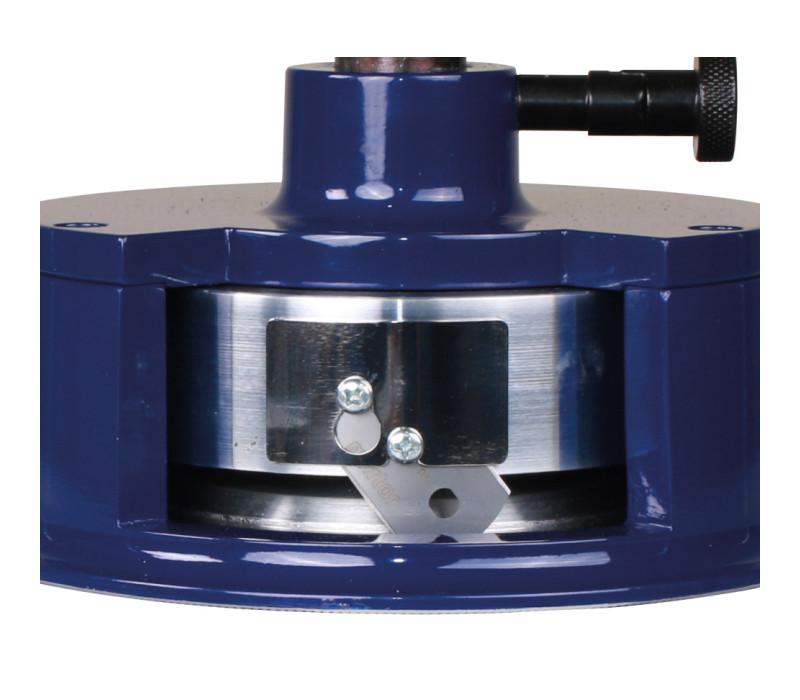

Introducing the Sample Cutter 230/50 featuring 4 high-quality blades made in Germany, ensuring precision cuts for your needs.

Model 230/50 - Sample cutout 50 cm2, Ø 80 mm, for max. 5 mm material thickness

Weight per m2, Textile fabrics	ISO 3801
Weight per m2, Knitted fabrics	ISO 12127
Weight per m2, Paper	ISO 536 // ISO 186
Weight per m2, Plastic/film	ISO 1183-1:2012 only par. 5.1.4.1
Weight per m2, Geotextile	ISO 9864
Pile weight/m2	EN 12127

€ 634,00

Order now

Max. 10 mm material thickness
Sample cutout 50 cm2
Ø 80 mm
Designed to precisely cut samples of various materials, such as woven, non-woven, knitted fabric, carpet, films or paper

Sample cutter 230-50 with (4) blades installed
1 rubber plate
4 spare blades
Operating instructions

Cutting Thickness	max. 5 mm
Sample Cut-Out	50 cm²
Sample Diameter	80 mm
Number of blades	4
Dimensions (HxØ):	140 x 125 mm
Weight net (gross):	1560 g (2300 g)

Products

Item	Product	Price	Quantity	Action
134852	Sample Cutter Model 230/50	€ 634,00

Accessories

Item	Product	Price

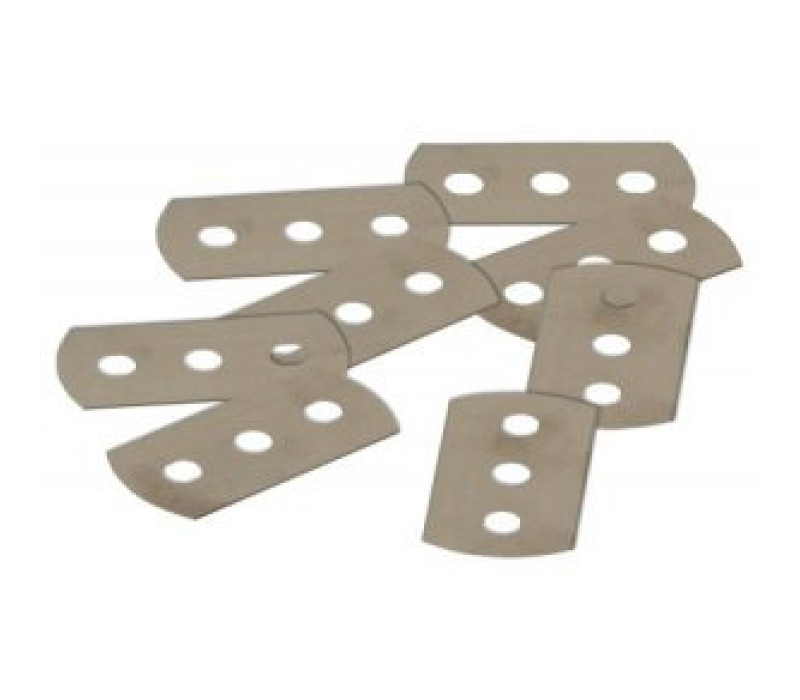

130587	60001M - Spare blades for sample cutter model 240/100 - 230/140 - 231/100 - 230/50 (100 pcs)	€ 50,00
132249	60001M2 - Spare blades for sample cutter model 240/100 - 230/140 - 231/100 - 230/50 (20 pcs)	€ 10,00
130586	60003M - Rubber plate for sample cutter / Size: 300x 200x10 mm (1pc)	€ 11,00
130417	60004M - 10 Pcs Rubber plates for sample cutter / Size: 300x 200x10 mm (10 pcs)	€ 110,00
139359	60009M - Spare Handle for sample cutter series 230/231	€ 125,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
