200 Series 240-100 circular sample cutter

130222 - 240/100 - Model 240 Sample Cutter

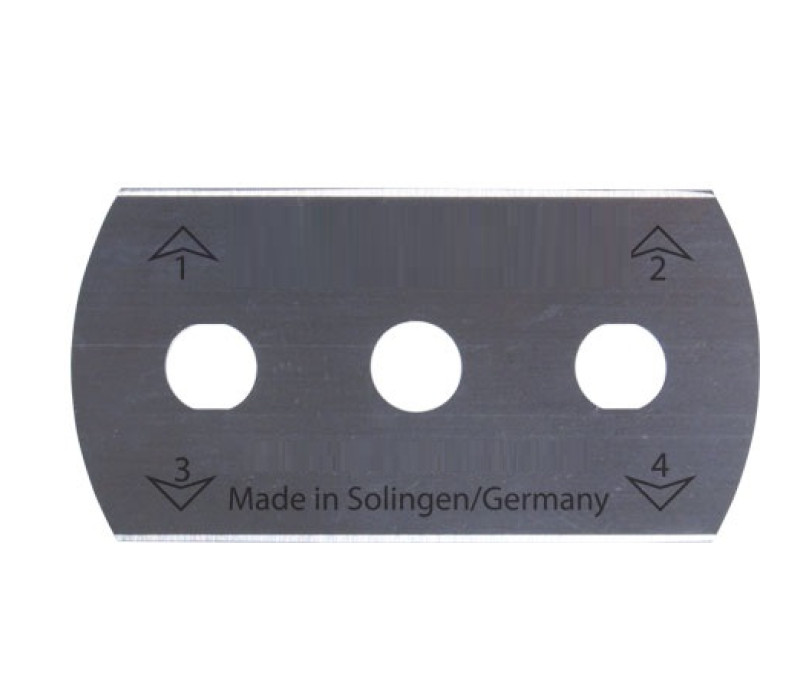

Blades for 240/100

132249 - 60001M2 - 20 Spare Blades for 240/100

130586 - 60003M - 1 Spare Rubber Plate

130417 - 60004M - 10 Spare Rubber Plates

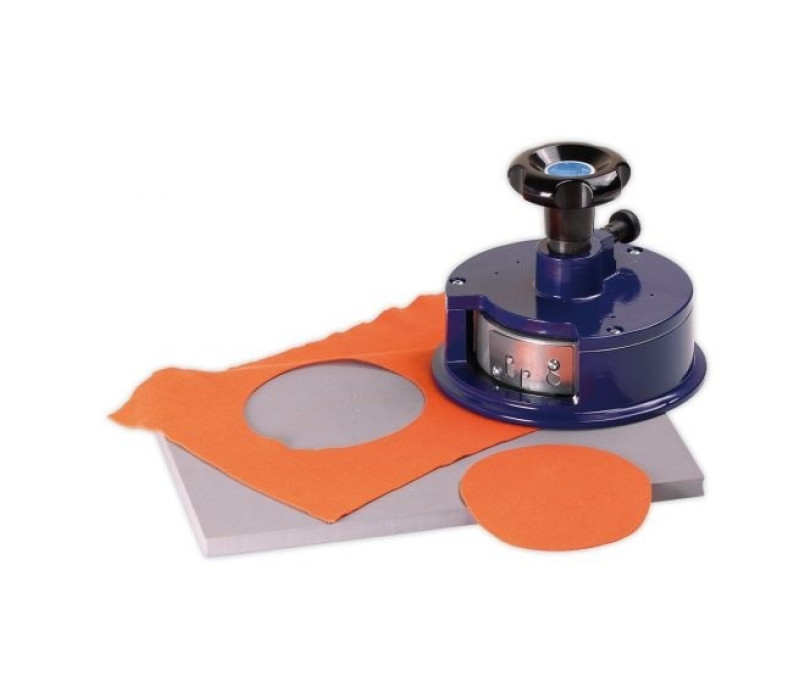

240/100 - Circular Sample Cutter

These round cutters can be used to cut samples or specimens from materials for analysis, testing, or inspection. These Circular Sample Cutter are commonly used in various industries, including textiles, paper, plastics, leather, and more.

A sample cutter can come in various sizes, depending on the type of material and the specific application. Our round cutters can produce circular samples ranging from Ø 113 mm to Ø 36 mm and accommodate different material thicknesses from 0.01 mm up to a maximum of 10 mm. To cut accurate circular samples with smooth edges.

The use of a sample cutter ensures consistent and precise samples, which are crucial for reproducible test results and analyses in laboratories and production environments.

Model 240/100 - Sample cutout 100 cm2, Ø 113 mm, for max. 5 mm material thicknes

Designed to precisely cut samples of various materials, such as woven, non-woven, knitted fabric, fleece, carpet, films, foil or paper.

Typical used to determination weight per unit area of fabric, paper etc.

The material to be cut is placed under the cutter between the rubber plate and the cutter, which allows the cutter to cut into the base with complete safety.
While holding the cutter with one hand, apply pressure to the handle and rotate clockwise direction by at least 90 degrees.
Even difficult materials such as fine knits, thin films, tissue paper, corrugated cardboard and synthetic leather can be cut conveniently.

Weight per m2, Textile fabrics	ISO 3801
Weight per m2, Knitted fabrics	ISO 12127
Weight per m2, Paper	ISO 536 // ISO 186
Weight per m2, Plastic/film	ISO 1183-1:2012 only par. 5.1.4.1
Weight per m2, Geotextile	ISO 9864
Pile weight/m2	EN 12127

€ 308,00

Order now

Max. 5 mm material thickness
Sample cutout 100 cm2
Ø 113 mm
Designed to precisely cut samples of various materials, such as woven, non-woven, knitted fabric, carpet, films or paper

Sample cutter 240/100 with (4) blades installed
1 rubber plate
4 spare blades
Operating instructions

Operating Procedure

The material to be cut is placed under the cutter between the cutting board and the cutter. While holding the cutter with one hand, apply pressure to the handle and rotate by at least 90 degrees.

Cutting Thickness	max. 5 mm
Sample Cut-Out	100 cm²
Sample Diameter	113 mm
Number of blades	4
Weight net (gross):	2200 g (2800 g)
Dimensions (HxØ):	115 x 165 mm (HxØ)

Products

Item	Product	Price	Quantity	Action
130222	Sample Cutter Model 240/100	€ 308,00

Accessories

Item	Product	Price
130587	60001M - Spare blades for sample cutter model 240/100 - 230/140 - 231/100 - 230/50 (100 pcs)	€ 50,00

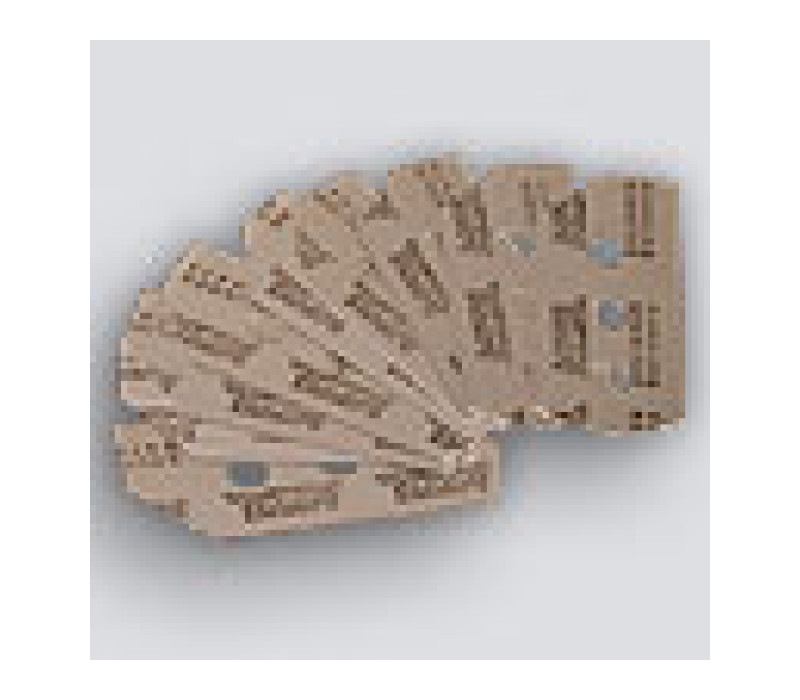

132249	60001M2 - Spare blades for sample cutter model 240/100 - 230/140 - 231/100 - 230/50 (20 pcs)	€ 10,00
132136	60002M - Spare Blades for sample cutter 230/100 (20 pcs)	€ 87,00
138199	60008M - Spare blades especially for carbon fibre mats for 240/100 (100 pcs)	€ 50,00

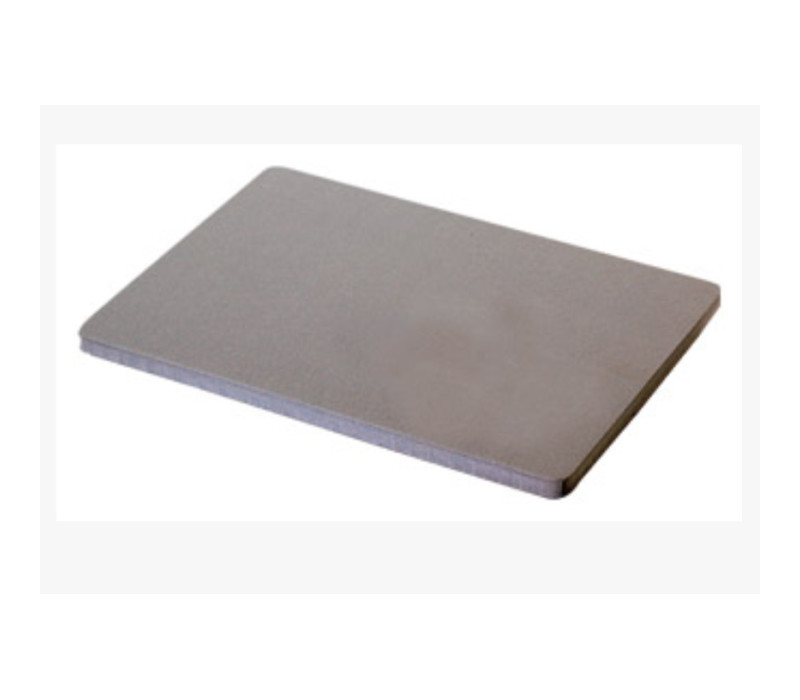

130586	60003M - Rubber plate for sample cutter / Size: 300x 200x10 mm (1pc)	€ 11,00

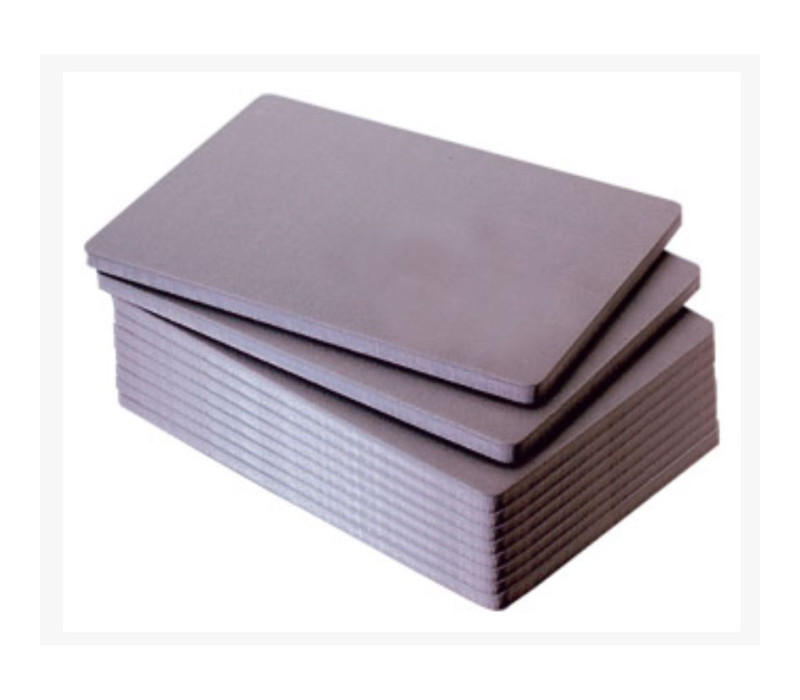

130417	60004M - 10 Pcs Rubber plates for sample cutter / Size: 300x 200x10 mm (10 pcs)	€ 110,00

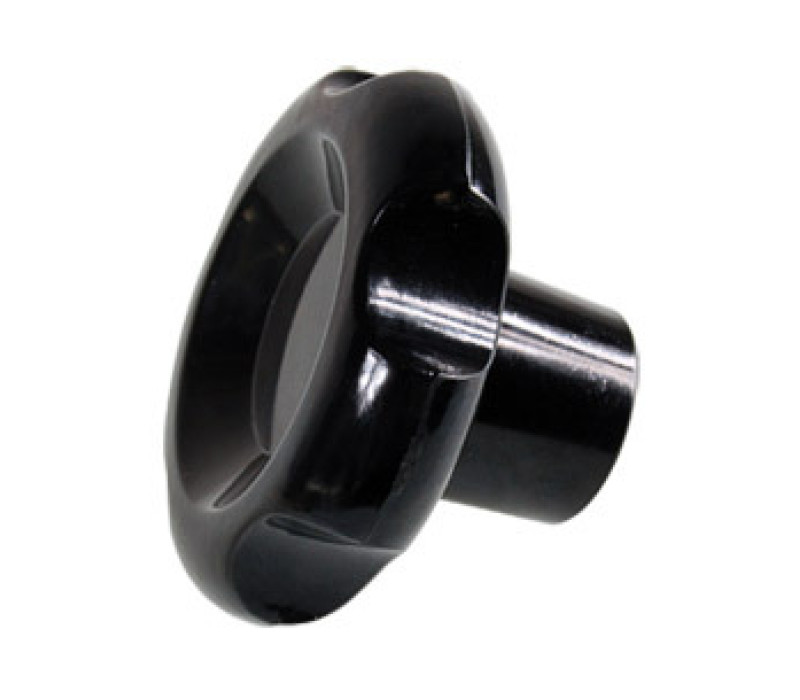

139360	60005M - Spare Handle / Knob for sample cutter series 240	€ 31,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
