HGF

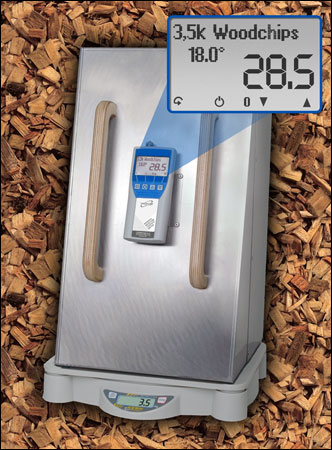

HGF woodchip moisture meter for biomass

The HGF woodchip moisture meter enables the the exact determination of water content of biomass in one quick & easy measurement procedure and combines the determination of water content. It is specially designed for measuring wood chips.

This woodchip moisture meter fulfills the requirements of heating plants, large plants and even small producers as the entire measurement procedure is extremely easy and only takes a few seconds. To start the measurement process, the HGF gauge simply needs to be turned on then the collected Biomass sample has to be poured into the storage bucket and the water content (%-moisture) can be read instantly from the large backlit LCD display.

The HGF-USB includes built-in memory for 10,000 values with serial output downloading data to external printer and is supplied with PC Software and USB Data Transfer Cable.

Moreover, this handy woodchip moisture meter for biomass also offers you the option of logging up to 3 additional customer-specific calibrations. Please contact us for an additional calibration, if your material to be measured is not ncluded in the standards provided.

Price from € 1.939,00

Order now

Measuring range: 5% to 50% water content
Direct measurement without pretreatment of the material to be measured
Robust construction for use in production plants and heating plants
Temperature unit either ° C or ° F
Measurement of the sample temperature with automatic temperature compensation
Automatic self-adjustment
Supplied with matching plastic bucket
2 years warranty

The HGF woodchip moisture meter comes as a complete set consisting of:

HGF measuring device
Plastic bucket
Batteries
Manual
Data transmission cable USB module and software (HGF-USB model only)

Calibration curves

Curve	Material	Category
Wood chips	At least 1/3 hard. For wood chips with fines.	P31 - P45
Coarse wood chips	At least 1/3 hardwood. For wood chips without fines.	P45 - P63 and P16 - P31 for wood chips from short rotation
Softwood chips	More than 2/3 softwood. For wood chips with fines.	P16 - P45
Softwood coarse wood chips	More than 2/3 softwood. Coarse wood chips without fines.	P45 - P63
Fine chips	At least 1/3 hardwood. For wood chips with a lot of fines.	P16 - P31
Free 1	Additional storage space for customer characteristic
Free 2	Additional storage space for customer characteristic
Free 3	Additional storage space for customer characteristic
Reference line	To check the function

Measuring range	5 to 50% water content, depending on the material
Resolution	0.5% water content
Calibration accuracy	+/- 1.5%
Measurement Technique	Electrical capacity
Sample volume	12.5 liters
Temperature compensation:	Automatical
Data logger	10.000 measuring values with measuring point report
Protection classification:	IP40
Menu languages	English, German, Italian, French, Spanish, Russian, Portuguese, Czech and Polish
Display	Graphic LCD display with backlight (128 x 64 pixel)
Operating temperatur:	-20°C - +40°C
Storage temperature:	0°C - +60°C
Dimensions:	296 x 278 x 508 mm
Weight:	7,9 kg
Measuring principle	Dielectric measurement

Products

Item	Product	Price	Quantity	Action
136556	HGF - Biomass Moisture Meter	€ 1.939,00
136557	HGF-USB - Biomass moisture meter with USB output	€ 2.390,00

Accessories

Item	Product	Price	Quantity	Action
132022	Calibration Certificate - Factory calibration certificate protocol for material moisture meters	€ 136,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
