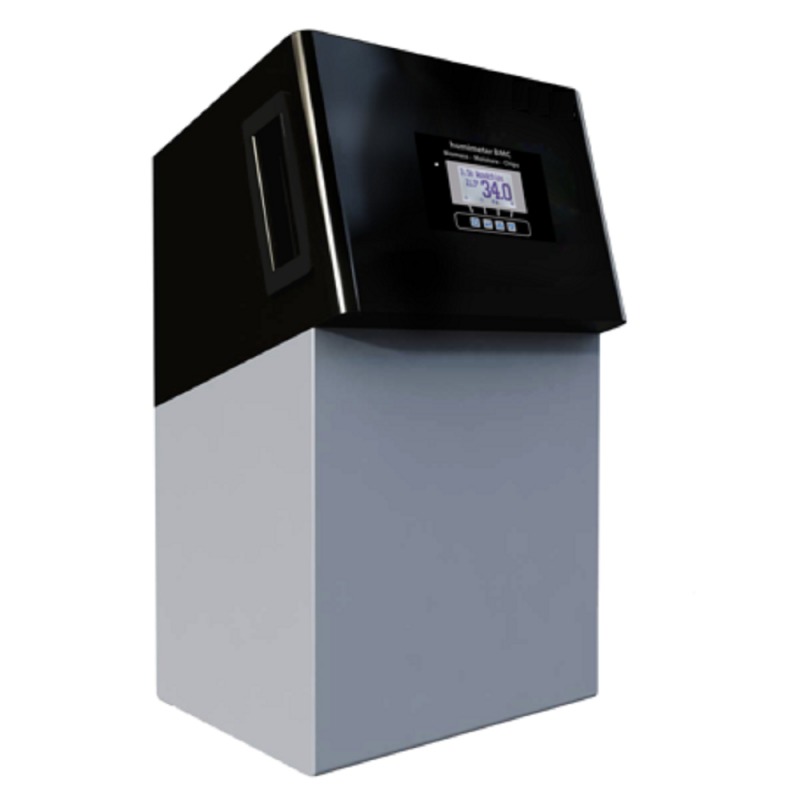

HGF woodchip moisture meter for biomass


The HGF woodchip moisture meter enables the the exact determination of water content of biomass in one quick & easy measurement procedure and combines the determination of  water content with an optional display of bulk density. It is specially designed for measuring wood chips, barks, wooden pellets, elephant grass, wood shavings and sawdust.

This woodchip moisture meter fulfills the requirements of heating plants, large plants and even small producers as the entire measurement procedure is extremely easy and only takes a few seconds. To start the measurement process, the HGF gauge simply needs to be turned on then the collected Biomass sample has to be poured into the storage bucket and the water content (%-moisture) can be read instantly from the large backlit LCD display.

The HGF includes built-in memory for 10,000 values with serial output downloading data to external printer and is supplied with PC Software and USB Data Transfer Cable.

Moreover, this handy woodchip moisture meter for biomass also offers you the option of logging up to 3 additional customer-specific calibrations. Please contact us for an additional calibration, if your material to be measured is not ncluded in the standards provided.


Features
  • Measuring range: 5% to 50% water content
  • Direct measurement without pretreatment of the material to be measured
  • Robust construction for use in production plants and heating plants
  • Temperature unit either ° C or ° F
  • Measurement of the sample temperature with automatic temperature compensation
  • Automatic self-adjustment
  • Supplied with matching plastic bucket
  • 2 years warranty

Complete Kit

The HGF woodchip moisture meter comes as a complete set consisting of:

     HGF measuring device
     Plastic bucket
     Batteries
     Manual
     Data transmission cable, USB module and software (HGF-USB model only)
     Factory certificate



Tension Ranges
CurveMaterial Category
Wood chips At least 1/3 hard. For wood chips with fines. P31 - P45
Coarse wood chips At least 1/3 hardwood. For wood chips without fines. P45 - P63 and P16 - P31 for wood chips from short rotation
Softwood chips More than 2/3 softwood. For wood chips with fines. P16 - P45
Softwood coarse wood chips More than 2/3 softwood. Coarse wood chips without fines. P45 - P63
Fine chips At least 1/3 hardwood. For wood chips with a lot of fines. P16 - P31
Free 1 Additional storage space for customer characteristic
Free 2 Additional storage space for customer characteristic
Free 3 Additional storage space for customer characteristic
Reference line To check the function


Specifications
Measuring range
5 to 50% water content, depending on the material
Resolution
0.5% water content
Calibration accuracy
+/- 1.5%
Measurement Technique
Electrical capacity
Sample volume
12.5 liters
Temperature compensation:
Automatical
Data logger
10.000 measuring values with measuring point report
Protection classification:
IP40
Menu languages
English, German, Italian, French, Spanish, Russian, Portuguese, Czech and Polish
Display
Graphic LCD display with backlight (128 x 64 pixel)
Operating temperatur:
-20°C - +40°C
Storage temperature:
0°C - +60°C
Dimensions:
296 x 278 x 508 mm
Weight:
7,9 kg

Buy Now
Accessories

Product name
Price
Quantity
HGF - Biomass moisture meter
€ 1.730,00
HGF-USB - Biomass moisture meter with USB output
€ 2.250,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available , preorder 1-2 weeks , special order, request
