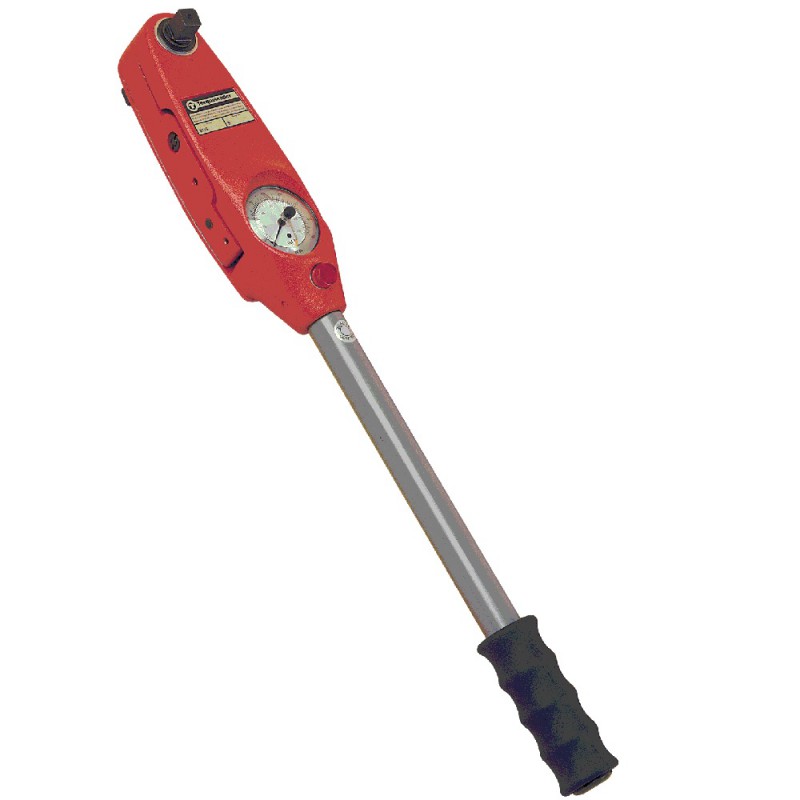

BDS Mechanical Dial Torque Wrench


The BDS model from the dial torque wrench serie is a resourceful quality control instrument used for verifying and monitoring medium torque ranges. The torque ranges of this model reach from 1.3 to 216 N.m (12 lbf.in to 160 lfb.ft).

It is an lightweight and robust instrument, which offers unmatched performance for the following reasons:
- It is very easy to use and to calibrate
- An incorporated overload protection device prevents over-torque
- A durable storage case protects from damage to the wrench or parts of it
- The double ended ratcheting spindles allow measurements in clockwise and anti clockwise directions

The BDS can be ordered with an audio visual warning device, which alerts the user when the set torque has been reached.
The BDS dial torque wrench is designed and manufactured to exceed the requirements of ISO 6789:2003.



Features
  • Torque ranges reach from 1.3 – 216 N.m (12 lbf.in to 160 lfb.ft).
  • Recessed dial minimizes dial breakage.
  • Mechanical stop provides overload protection to 125% of full scale.
  • Lightweight aluminum handle with non-slip grip for improved balance. Scuff-resistant non-slip finish.
  • Single-end spindles available upon request.
  • Standard double-ended spindle ratchet mechanism allows for left handed torque applications.
  • Quality constructed for accuracy and reliability with an attractive abrasive resistant finish for longer life and ease in identification.
  • Fine main and memory pointers provide accurate readings.
  • Exclusive built-in ratchet mechanism.
  • Dual scale in American and S.I. units. Single scale models are available upon request.

Tension Ranges
ModelRanges Resolution Drive Light Signal Length / Weight
BDS80A 12 - 60 lbf.ft
16 – 80 N.m
1 lbf.ft
2 N.m
3/8"No43.48 cm / 1.35 kg
BDS80E 12 - 60 lbf.ft
16 – 80 N.m
1 lbf.ft
2 N.m
1/2"No43.48 cm / 1.36 kg
BDS160 24 – 120 lbf.ft
32 – 160 N.m
2 lbf.ft
2.5 N.m
1/2"No51.49 cm / 1.41 kg
BDS200 30 – 160 fbf.ft
40 – 200 N.m
5 lbf.ft
5 N.m
1/2"No51.49 cm / 1.41 kg
Special Option:

All BDS models can be supplied with an option S which is an audible and optical alarm that can be set to the required torque value.
The Light Signal Wrenches use standard size batteries
The BDS models are supplied with a protective plastic case.



Related Products

Cic-Torque Torque Instrument Calibration


  • Short turnaround
  • Easy planning of calibration

More details

Cic-Torque Torque Instrument Calibration

TWT-400 Torque Wrench Test Stand


  • The flexible design of the TWT-400 is easy to use and is suitable for various torque wrench lengths and brands
  • 3 modes of operation: Track, Peak and 1st Peak
  • Eight (8) selectable engineering units: Oz.in., Lb.in., Lb.ft., Nm, cNm, KgfCm, gfCm, Kgfm
  • Bidirectional accuracy of ±0,25% of indicated reading

More details

TWT-400 Torque Wrench Test Stand

Buy Now
Products

Product name
Price
Quantity
BDS80A dial wrench (3/8"Sq Dr)
€ 409,00
BDS80E dial wrench (1/2"Sq Dr)
€ 409,00
BDS160 dial wrench (1/2"Sq Dr)
€ 409,00
BDS200 dial wrench (1/2"Sq Dr)
€ 409,00

Accessories

Product name
Price
Quantity
BDS Option S - Audio & Visual Signal Option
€ 81,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available , preorder 1-2 weeks , special order, request
