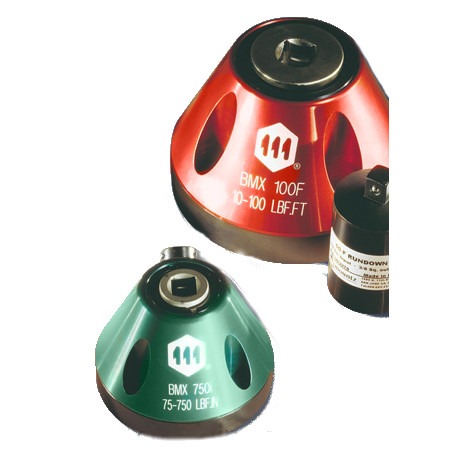

BMX Torque Reaction Sensor for calibrating tools


For calibrating hand screwdrivers, wrenches, and power tools, the BMX is to be used together with a digital torque display.

This versatile torque sensor is perfectly adapted for testing multiple torque ranges for a variety of torque tools deployed in production, maintenance and calibration laboratories. This device allows for wrench calibration, screwdriver calibration as well as electric & pneumatic screwdriver calibration.


Features
  • Accuracy ± .25% of full scale (± 0.5% for 10,000F & 20,000F models)
  • Bi-directional measurement
  • Female square drive
  • Mounting brackets available, optional

Torque ranges
Default values Oz-in Lb-ft N-m

ModelRangeDrive Size
BMX20z 2 - 20 Oz-in 1/4"
BMX40z 4 - 40 Oz-in 1/4"
BMX80z 8 - 80 Oz-in 1/4"
BMX10i 1 - 10 Lb-in 1/4"
BMX25i 2.5 - 25 Lb-in 1/4"
BMX50i 5 - 50 Lb-in 1/4"
BMX100i 10 - 100 Lb-in 1/4"
BMX250i 25 - 250 Lb-in 1/4"
BMX500i 50 -500 Lb-in 3/8"
BMX750i 75 - 750 Lb-in 3/8"
BMX50F 5 - 50 Lb-ft 3/8"
BMX100F 10 -100 Lb-ft 1/2"
BMX250F 25 - 250 Lb-ft 1/2"
BMX500F 50 - 500 Lb-ft 3/4"
BMX1000F 100 - 1000 Lb-ft 1"
BMX2500F 250 - 2500 Lb-ft 1 1/2"
BMX5000F 500 - 5000 Lb-ft 1 1/2"
BMX10000F 1000 - 10000 Lb-ft 2 1/2"
BMX20000F 2000 - 20000 Lb-ft 2 1/2"

Specifications
Rated Output
2mv/v Nominal
Safe Overload
125% of Rated Output
Bridge Resistance
350 Ohms Nominal
Nonlinearity
± .1% of Rated Output
