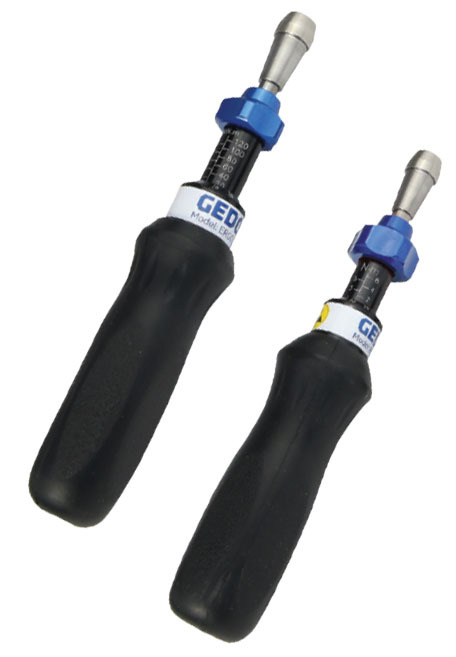

EMT Torque Limiting Screwdriver for production


The EMT Torque Screwdriver has been designed to exert a certain amount of torque. A bi-directional cam automatically releases once the set torque value has been reached, thus avoiding the risk of over-tightening.


Features
  • Adjustment ring disengages to prevent incidental torque adjustment.
  • The preferred and certified ranges of these tools is in accordance with the requirements if ISO 6789:2003 (+/- 6% of setting).
  • Precision radial ball clutch and cam allows for automatic resetting.
  • The “positive” locking system prevents incidental torque adjustment.
  • Ergonomic rubber hand grip
  • Micrometer adjustment allows for accurate tool setting.
  • Color coded adjustment ring allow for differentiation of models.
  • Removable T-bar on larger models provides extra leverage. Note - does not affect torque setting accuracy.
  • ESD compliant (IEC 61340-5-1: 1998)
  • NIST Traceable Calibration Certificate is optional

Tension Ranges
ModelRanges Graduation Drive
EMT/QSA 60z-M 10 - 60 ozf.in 1 ozf.in1/4” M/Sq. Dr.
EMT/QSA 60z-F 10 - 60 ozf.in 1 ozf.in1/4” F/Hex. Dr.
EMT/QSA 160z-M 20 - 160 ozf.in 1 ozf.in1/4” M/Sq. Dr.
EMT/QSA 160z-F 20 - 160 ozf.in 1 ozf.in1/4” F/Hex Dr.
EMT/QSA 4-M 0.5 - 4 lbf.in 0.1 lbf.in1/4” M/Sq. Dr.
EMT/QSA 4-F 0.5 - 4 lbf.in 0.1 lbf.in1/4” F/Hex Dr.
EMT/QSA 12-M 2 - 12 lbf.in 0.1 lbf.in1/4” M/Sq. Dr.
EMT/QSA 12-F 2 - 12 lbf.in 0.1 lbf.in1/4” F/Hex Dr.
EMT/QSA 50-M* 10 - 50 lbf.in 1 lbf.in1/4” M/Sq. Dr.
EMT/QSA 50-F* 10 - 50 lbf.in 1 lbf.in1/4” F/Hex Dr.
EMT/QSA 80-M* 30 - 80 lbf.in 1 lbf.in1/4” M/Sq. Dr.
EMT/QSA 80-F* 30 - 80 lbf.in 1 lbf.in1/4” F/Hex Dr.
EMT/QSN 40-M 5 - 40 cN.m 1 cN.m1/4” M/Sq. Dr.
EMT/QSN 40-F 5 - 40 cN.m 1 cN.m1/4” F/Hex Dr.
EMT/QSN 120-M 20 - 120 cN.m 1 cN.m1/4” M/Sq. Dr.
EMT/QSN 120-F 20 - 120 cN.m 1 cN.m1/4” F/Hex Dr.
EMT/QSN 600-M* 1 - 6 N.m 0.1 N.m1/4” M/Sq. Dr.
EMT/QSN 600-F* 1 - 6 N.m 0.1 N.m1/4” F/Hex Dr.
EMT/QSN 900-M* 4 - 9 N.m 0.1 N.m1/4” M/Sq. Dr.
EMT/QSN 900-F* 4 - 9 N.m
* Supplied with Sliding T-Bar
