TTD Tyre Tread Dial Depth Gauge

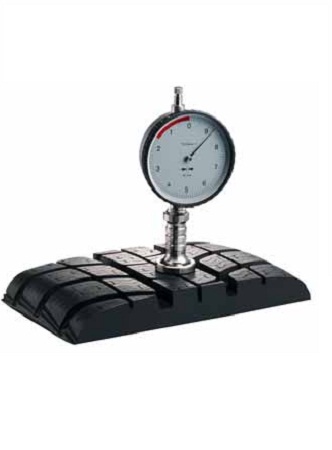

Made in the USATTD - Tyre Tread Dial Depth Gauge
For tyre depth measurement, with special red segment for to small tyre depths: 0 - 1,6 mm.
The meter has an easy-to-read analog scale and a robust casing, allowing operator to concentrate on measurement task.

  • Special red segment for to small tyre depths: 0 - 1,6 mm
  • Robust casing
  • Can be used in any measurement orientation as gravity does not affect readings
  • 1-Year Warranty
  • 25 mm Ø footer provides stable basis for testing
  • Easy-to-read analog scale

Resolution:0,1 mm
Measuring Range:10 mm
Dial Diameter:58 mm
Weight, net:240 g
Dimensions:125 x 107 x 35 mm
Warranty:1 year
Indentor:Ø 2 mm
Footer:Ø 25 mm

Buy Now

TTD - Tyre Tread Dial Depth Gauge
€ 90,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request

Request offer
