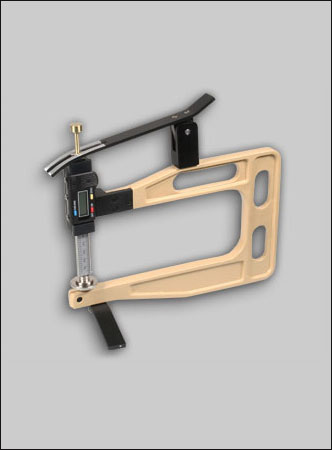

    BDTG-200-50 Digital Thickness Gauge

    The BDTG-200-50 digital thickness gauge is designed for precise thickness measurement of flexible and semi-rigid materials such as leather, textiles, cardboard, rubber, plastics, foil and thin sheet materials. It delivers consistent and repeatable results across the full 0–50 mm measuring range with a resolution of 0.01 mm.

    This model features a 200 mm jaw depth, making it suitable for the majority of laboratory, workshop and quality-control applications where standard sample sizes are measured.

    Key Features:

    • RS-232 Output: Allows direct connection to PCs, printers or SPC and quality-control systems.
    • Lever-Actuated Jaw Opening: Facilitates controlled sample positioning and repeatable measurements.
    • Constant Spring Force: Ensures uniform measuring pressure, even on soft or compressible materials.
    • Zero Reset Function: Enables fast and reliable zeroing prior to measurement.
    • Clear LCD Display: Measurement units selectable between millimetres and inches.
    Key Benefits:

    • Reliable Thickness Control: High-resolution electronics combined with controlled closing force improve repeatability.
    • Wide Application Range: Suitable for routine inspection of most industrial sheet and flexible materials.
    • Efficient Operation: Lever mechanism reduces operator fatigue during repetitive measurements.
    • Compact Jaw Depth: 200 mm reach covers the majority of standard test samples without excess bulk.


    Contact us for technical advice or to confirm suitability for your specific application.
    Price from € 437,00
    Order now
    • 0.01 mm Resolution: High-precision measurement across the entire 0–50 mm range.
    • Calibration Certificate Included: Supplied verified and ready for immediate use.
    Available Models

    Available Models

    ModelRangeResolutionJaw Depth
    BDTG-200-500 - 50 mm0.01 mm200 mm
    BDTG-300-500 - 50 mm0.01 mm300 mm
    BDTG-350-750 - 75 mm0.01 mm350 mm
    BDTG-400-1000 - 100 mm0.01 mm400 mm
    Feeler Types

    To place the order, please specify the desired feeler, for example: BDTG-200-50-B for a gauge with feeler B. This means that NOT all feelers are included in the package!

    Feeler RMU A

    Feeler: A

    For hard leather, glass, metal sheets.
    Feeler RMU B

    Feeler: B

    For wood, rubber, soft leather, foil, etc.
    Feeler RMU C

    Feeler: C

    For soft rubber, felt, fleece.
    Feeler RMU D

    Feeler: D

    For rubber rings, round materials.
    Feeler RMU E

    Feeler: E

    For paper, cardboard, chipboard and fiberboard, and plywood.
    Feeler RMU F

    Feeler: F

    For metal sheets, glass, round materials.
    Feeler RMU G

    Feeler: G

    For very rigid materials.
    Feeler RMU H

    Feeler: H

    For foams and insulating materials.
    Feeler RMU I

    Feeler: I

    For very soft foams and insulating materials.
    Feeler RMU M

    Feeler: M

    For rubber sheets, felt, soft materials.
    Resolution:0.01 mm
    Measuring range:50 mm
    Jaw depth:200 mm
    Measuring pressure:2 N
    Measuring principle:Self closing
    Feeler shape:A/B/C/D/E/F/G/H/I/M
    Display:LCD 7 mm high
    Measuring system:Sylvac
    Weight, net (gross):700 g (750 g)

    Order Now

    Products
    Item Product Price  Quantity Action
    134639BDTG-200-50-B - Thickness Gauge, Feeler B € 437,00
    137197BDTG-200-50-C - Thickness Gauge, Feeler C € 437,00
    138059BDTG-200-50-D - Thickness Gauge, Feeler D € 437,00
    134685BDTG-200-50-E - Thickness Gauge, Feeler E € 437,00
    138007BDTG-200-50-F - Thickness Gauge, Feeler F € 437,00
    135966BDTG-200-50-G - Thickness Gauge, Feeler G € 437,00
    139923BDTG-200-50-H - Thickness Gauge, Feeler H € 447,00
    137191BDTG-200-50-A - Thickness Gauge, Feeler A € 447,00
    133793BDTG-200-50-M - Thickness Gauge, Feeler M € 450,00

    All mentioned prices are excluding VAT & excluding shipment costs.
    Availability:
    Available: 1 - 3 days ,
    Delivery time: 1 - 3 weeks ,
    special order request
