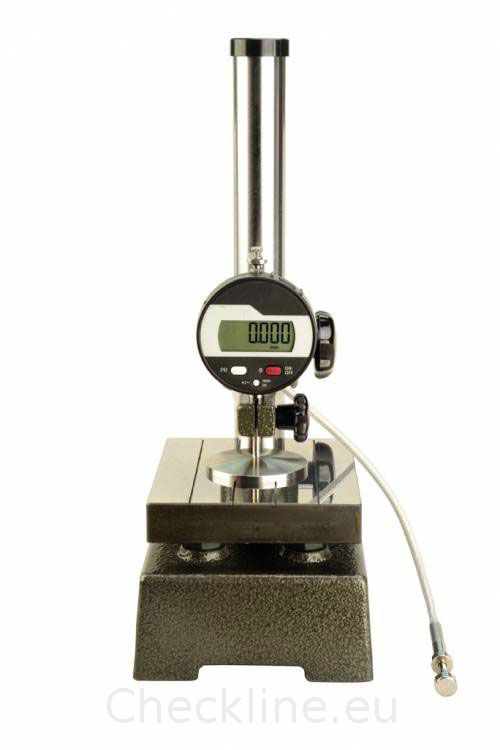

LTG-ISO2589 Leather Thickness Gauge according to ISO 2589


Made in GermanyThe LTG is a cost efficient and easy to use instrument for measuring the thickness of leather.
This leather thickness gauge works fully conform the ISO 2589 standard and comes with a manufacturer's inhouse calibration certificate confirming the feeler diameter, shape and constant measuring pressure.


Features
  • Economical and Easy to use
  • Simple solid design
  • Conforming ISO 259
  • Manual lifter and cable release
  • Constant force load
  • Manufacturer calibration certificate and DAkkS calibration for the dial gauge optional available

Complete Kit
The LTG Thickness Gauge is supplied as a complete kit with instruction manual and calibration certificate.

Specifications
Standards:
ISO 2589
Pressure:
49.1 kPa
Resolution:
0.001 mm
Stroke:
12,5 mm
Feeler size:
Ø10 mm
Feeler area :
0.785 cm²
Power:
Button cell CR2032
Dimensions:
85 x 135 x 200mm
Net Weight:
2.5 kg

Buy Now
Product

Product name
Price
Quantity
LTG-ISO2589 - Leather Thickness Gauge according to ISO 2589
€ 1.495,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available , preorder 1-2 weeks , special order, request
