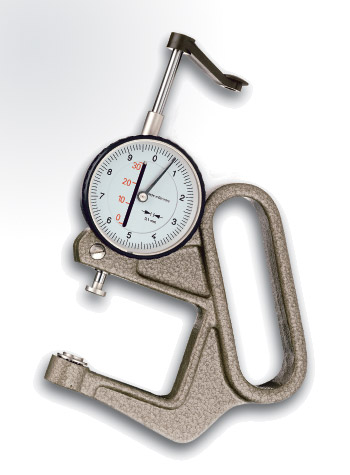

K-50-2 Thickness Gauge


Made in GermanyThickness gauges are used for measuring the thickness of leather, textile, cardboard, felt, rubber, sheet metal, foils, plywood, plastic parts of all kind, etc.
Depending on the application, the following points are important for selecting the best model:
- Max. resolution required
- Measuring range
- Depth of jaw
- Shape of feelers
- Measuring principle
The aluminium housing is lightweight and rugged. It can be easily zeroed by turning the outer knurled ring of the scale.

The K-50-2 model is available with 5 different feelers, wich can be found below. Measurement by manual pressure by plunger

Features
  • Measurement by manual pressure by plunger
  • Resolution 0.1 mm
  • Opening by spring force - self opening

Feeler Shape

To order, please indicate the desired feeler, e.g. K-50-2-B for gauge with feeler >b<. This means that NOT all feelers are included in the package!




Feeler: A

For rubber, felt*, soft materials*, non wovens*, etc.

*Meets no DIN EN ISO standard Customized feeler type >a< with diameter 30 to 56 mm are available on request at extra charge
Feeler: B
For rubber, felt*, soft materials*, non wovens*, etc.

*Meets no DIN EN ISO standard


Feeler: C

For soft leather, cardboard, paper, foils, etc.



Feeler: D

For hard leather, plywood, fiberboard, etc.



Feeler: E
For sheet metal, etc.



Accessories

Table Stand for Thickness Gauge


  • Table stand for thickness gauges
  • Converts the handheld thickness gauges into table models
  • Supported models:
    K50, K100, J50, J100, JA50, F1101/30, JD50, JD100, FD50, FD100

More details

 Table Stand for Thickness Gauge 126057

Specifications
Resolution:0.1 mm
Measuring range:20 mm
Depth of jaw:50 mm
Scale diameter:58 mm
Feeler shape:a,b,c,d or e
Spring force:self opening
Weight, net:330 g

Buy Now
Products

Product name
Price
Quantity
K-50-2-A Thickness gauge with feeler A
€ 129,00
K-50-2-B Thickness gauge with feeler B
€ 129,00
K-50-2-C Thickness gauge with feeler C
€ 129,00
K-50-2-D Thickness gauge with feeler D
€ 129,00
K-50-2-E Thickness gauge with feeler E
€ 129,00

Accessories

Product name
Price
Quantity
Table Stand for Thickness Gauge
€ 65,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available , preorder 1-2 weeks , special order, request
