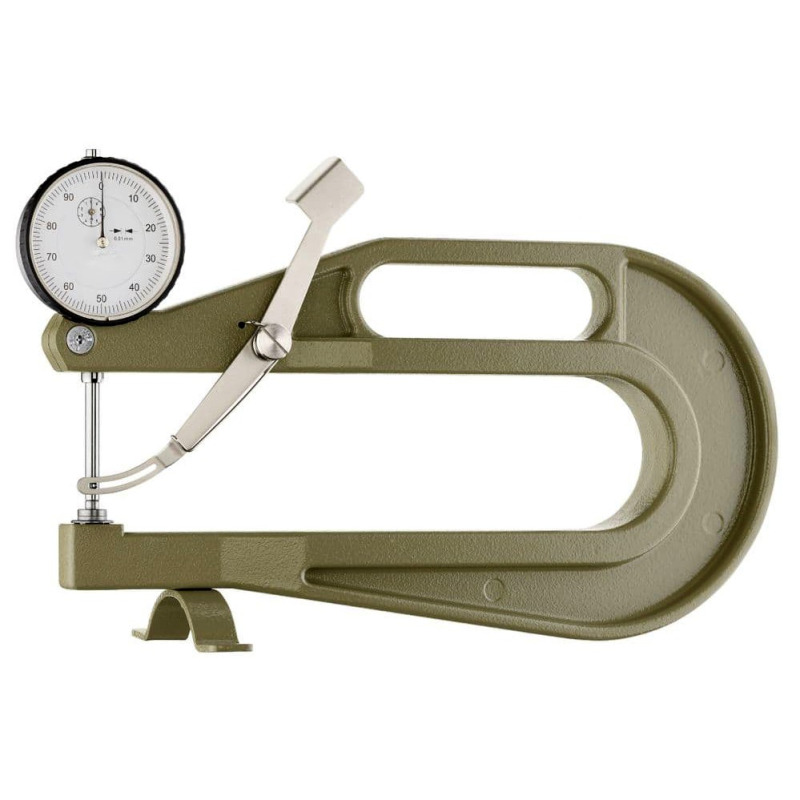

J-200 Precision Thickness Gauge


Made in GermanyThe J-200 thickness gauge is designed to accurately measure the thickness of materials such as leather, textiles, cardboard, felt, rubber, sheet metal, foils, plywood, and various types of plastic components. Its lightweight yet robust aluminium housing ensures durability and ease of handling. Thanks to the external knurled ring, it can be quickly zeroed, enabling precise adjustment before each measurement.

Key Features:

  • Operation by lifting device – self-closing: Easy opening via a lever and automatic closing to ensure consistent measurements.
  • High measurement precision: 0.01 mm resolution for reliable and consistent results.
  • 200 mm jaw depth: Ideal for measuring larger materials or deeper surfaces.
  • Spring force measurement: Ensures consistent pressure during each measurement.



Main Benefits:

  • Versatile application: Compatible with a wide variety of industrial and commercial materials.
  • Ease of use: Intuitive zero-setting system and ergonomic operation for quick and easy use.
  • Robust construction: Made of high-strength aluminium to withstand intensive use conditions.



Contact us to learn more about how the J-200 can meet your thickness measurement needs.


Features

  • Available models: A choice of five different feeler types depending on the material to be measured.
  • Optional calibration certificate: Available upon request to ensure full traceability of measurements.

Feeler Shape

To place your order, please indicate the desired feeler, for example: J-200-B for a gauge with feeler B. This means that NOT all feelers are included in the package!


Simple controller interface

Feeler: A

For rubber, felt*, soft materials*, non-wovens*, etc.
*Does not meet any DIN EN ISO standards. Custom type A feelers with diameters from 30 to 56 mm available on request at additional cost.

Modular

Feeler: B

For rubber, felt*, soft materials*, non-wovens*, etc.
*Does not meet any DIN EN ISO standards.

Limit switches

Feeler: C

For soft leather, cardboard, paper, films, etc.

Seamless sensor

Feeler: D

For hard leather, plywood, fibre boards, etc.

Easy to service electronics

Feeler: E

For sheet metal, etc.


Specifications

Resolution:0.01 mm
Measuring range:10 mm
Depth of jaw:200 mm
Scale diameter:58 mm
Measuring pressure:2.0 N (On request: 1 N or 4 N)
Feeler shape:a,b,c,d or e
Measurement by spring load:Operating by lifting device - self closing
Weight, net:1100 g

Buy Now

Products

Product
Price
Quantity
126007
J-200-A Thickness Gauge
€ 227,00
130867
J-200-B Thickness Gauge
€ 227,00
136037
J-200-C Thickness Gauge
€ 227,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
