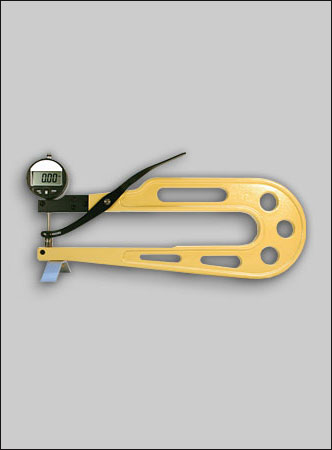

DMD-830-1 Digital Thickness Gauge | DMD-830-1


Made in GermanyThe DMD-830-1 digital thickness gauge determines the thickness of leather, textiles, cardboard, felt, rubber, sheet metal, foil, plywood, etc.

Due to its self-closing mechanism, the DMD-830-1 ensures highest accuracy and resolution of 0.01 mm throughout the measurement range from 0 to 25 mm.


Features

  • RS-232 output for data collection
  • Opening by lifting device (lever) - self closing
  • Measuring by spring force
  • LCD display with user selectable units (mm or inch)
  • Calibration certificate included
  • Zero setting by pushing a button

Tension Ranges

Model Ranges Resolution Depth of Jaw
DMD-830-1 0 - 25 mm 0.01 mm300 mm

Feeler Shape

When ordering the DMD-830-1, please indicate your desired feeler, for example "DMD-830-1-B" for the gauge with feeler "B". Only your desired feeler shape is included.


Specifications

Resolution:
0.01 mm
Measuring range:
25 mm
Depth of jaw:
300 mm
Measuring pressure:
2 N
Measuring principle:
Self closing
Feeler shape:
A/B/C/D/E
Display:
LCD 4 digit, 8 mm high
Measuring system:
Sylvac
Weight, net (gross):
1000 g (1050 g)
