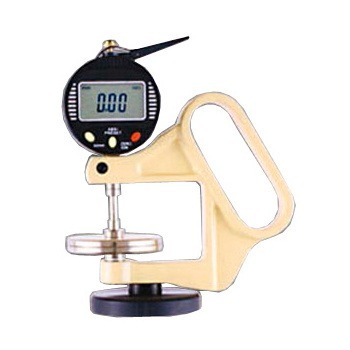

DMD-3 Digital Thickness Gauge | DMD-3


Made in GermanyThe DMD-3 digital thickness gauge determines the thickness of leather, textiles, cardboard, felt, rubber, sheet metal, foil, plywood, etc.

Due to its self-closing mechanism, the DMD-3 ensures highest accuracy and resolution of 0.01 mm throughout the measurement range from 0 to 10 mm.


Features
  • RS-232 output for digital data collection
  • Opening by lifting device (lever)
  • Zero setting by pushing a button
  • Spring force measures the material thickness
  • Self-closing mechanism
  • Calibration certificate included

Available Models
Model Range Resolution Depth of Jaw
DMD-3 0 - 10 mm 0.01 mm 50 mm
DMD-3-1 0 - 25 mm 0.01 mm 50 mm
DMD-820 0 - 10 mm 0.01 mm 200 mm
DMD-820-1 0 - 25 mm 0.01 mm 200 mm
DMD-830 0 - 10 mm 0.01 mm 300 mm
DMD-830-1 0 - 25 mm 0.01 mm 300 mm
DMD-850 0 - 10 mm 0.01 mm 500 mm
DMD-850-1 0 - 25 mm 0.01 mm 500 mm

Feeler Shape
When ordering the DMD-3, please indicate your desired feeler, for example "DMD-3-B" for the gauge with feeler "B". Only your desired feeler shape is included.


Specifications
Resolution:
0.01 mm
Measuring range:
10 mm
Depth of jaw:
50 mm
Measuring pressure:
2 N
Measuring principle:
Self closing
Feeler shape:
A/B/C/D/E
Display:
LCD 4 digit, 8 mm high
Measuring system:
Sylvac
Weight, net (gross):
300 g (350 g)
