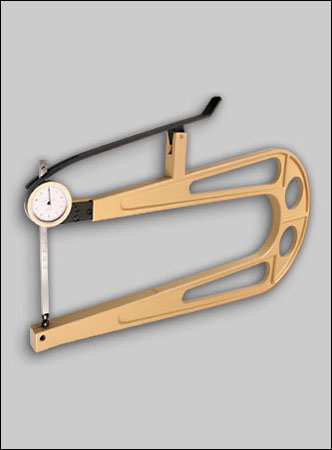

DM-840 Analog Dial Thickness Gauge | DM-840


Made in GermanyThe analog dial thickness gauge DM-840 determines the thickness of various materials, like leather, textiles, cardboard, felt, rubber, sheet metal, foil, plywood, plastic, etc. This thickness gauge is self closing and guarantees high accuracy and resolution.


Features

  • Thickness measurement by spring force
  • Self closing mechanism

Tension Ranges

Model Ranges Resolution Depth of jaw
DM-840 0 - 100 mm 0.1 mm400 mm

Feeler Shape

When ordering the DM-840, please indicate your desired feeler, for example "DM-840-B" for the gauge with feeler "B". Only your desired feeler shape is included.


Specifications

Resolution:
0.1 mm
Measuring range:
100 mm
Depth of jaw:
400 mm
Measuring pressure:
2 N
Measuring principle:
Self-closing
Feeler shape:
A/B/C/D/E/F/G/H/I/M
Weight, net (gross)
1400 g (1450 g)
