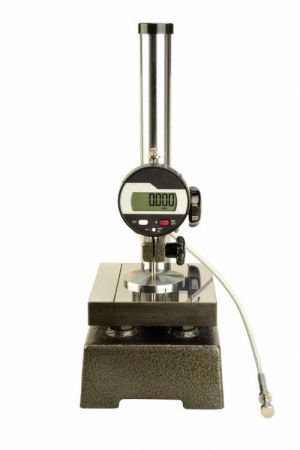

TTG-ISO-5084 Textile Thickness Gauge according to ISO 5084


Made in GermanyThis textile thickness meter is suitable for textile thickness measurement according to to ISO 5084.
The constant measuring pressure enables you to take highly accurate repeatable measurements.
The TTG-ISO-5084 has rugged simple design and is very easy to use.


Features
  • Cost efficient
  • 0.001 mm Resolution
  • Easy to Use with manual lifter
  • According to ISO 5084
  • Simple rugged design
  • Can optionally also be used for ISO 23529 Rubber thickness

Specifications
Measuring range gauge:
12.5 mm
Max object size:
Approx. 90mm
Resolution:
0.001 mm
Measuring Table:
98 mm x 115 mm
Feeler Size:
Ø50.5 mm
Measuring Pressure:
1kPa ±0,01kPa
Equals 204,215 gramm ±2,04215 gramm.
Heigth:
284mm
Weigth:
7.2 Kg

Buy Now
Product

Product name
Price
Quantity
TTG-ISO-5084 - TTG- Textile Thickness Gauge ISO 5084
€ 1.495,00

Accessories

Product name
Price
Quantity
RTG/TTG-USB - USB cable for TTG gauge
€ 139,00
RTG/TTG-RS232 - RS-232 PC Cable for TTG gauge
€ 139,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available , preorder 1-2 weeks , special order, request
