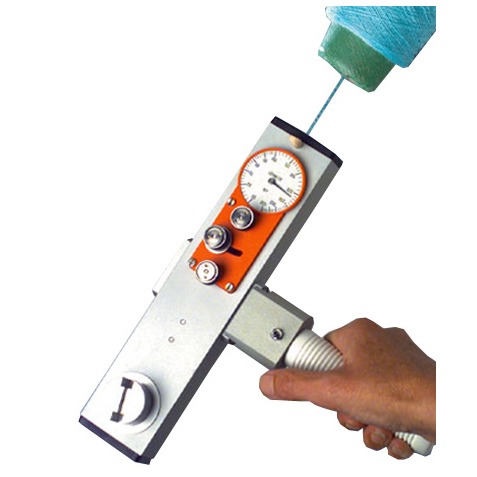

MKM Mechanical Tension Meter


Made in GermanyCheck-line's MKM Tension Meter with take-up wheel, for for setting yarn tension devices.

Features
  • Motorized take up wheel for constant take-up speed (take-up speed ~16 m/min)
  • Handle can be reversed for using the instrument comfortable in all positions
  • Motor, rechargeable battery operated
  • Everything in operator's view: the guide rollers, the measured material, the display

Tension Ranges
ModelRanges
MKM-50 10-50 g
MKM-100 10-100 g
MKM-400 10-400 g

Specifications
Accuracy
±1% full scale (FS) or ±1graduation on scale
Scale diameter
41mm
Battery
9 V E-Block, rechargeable (charger included)
Operating Temperature
10-45ºC
Housing material
Tension meter: Plastic (Makrolon)
Frame: Aluminium
Dimensions
225 x 50 x 30 mm (LxWxH)
Weight
400 g (1000 g)

Complete Kit
Unit supplied as complete kit with hard plastic carrying case, operating instructions and batteries
