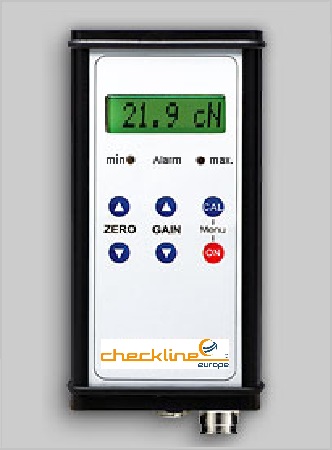

SCD-1 Display Unit


Made in GermanyDisplay unit with LCD display for 1 sensor. All tension sensors series TS and FS with analog output signal 0 - 1 V can be connected.

Display for wall-mounting or as desktop device
Indicator with digital output signal for data processing with PC

Special Features
  • Connecting sensors of series TS and FS with output signal 0 - 1 V
  • Display unit with small, compact housing
  • Interfaces:
    - digital: RS 232 for connection to a PC
    - analog: 0 - 10 V DC for connection to a line recorder or for signal processing




Downloads


Features

  • Connecting sensors of series TS and FS with output signal 0 - 1 V
  • Display unit with small, compact housing
  • Wall-mounting possible
  • Adjustable damping for output signal and display for easier reading if tension fluctuates
  • Power supply by separate AC adapter
  • Menu for configurating the device (alarm limits, damping, units, tension range, adjustment graph)
  • User set limits with LED and Open Collector for external signal unit MIN - MAX interface (Open Collector) for connecting an external signal unit
  • Power supply (+12 V DC) for the connected sensor
  • Sensor calibration adjustment (gain and zero) for each sensor
  • Display unit with Dotmatrix LCD display, 12 mm high with backlight
  • CE certified with sensors connected

Specifications

Digital display:
Dotmatrix LCD, 12 mm high with backlight
Measuring units:
cN, daN, g or kg adjustable
Tension range:
Adjustable
Damping (fg):
16 steps adjustable
Output signal:
Analog: 0 - 10 V DC R (Last) ≥ 5 kOhm
Digital: RS 232 (19200, 8, N, 1), 80 values/s
Setpoints:
Programmable MIN/MAX limits with LED-diode
Output signal setpoints:
Open Collector max. 30 V DC, 10 mA
Voltage output for sensor:
Yes
Power supply:
12 ... 24 V DC/AC 100 mA
AC adapter 100 - 240 V AC, 50 - 60 Hz with 3 adapters (EU/USA/UK)
Temperature range:
10 - 45° C
Air humidity:
85 % RH, max.
Housing:
Aluminium
Dimensions:
182 x 85 x 34 mm (LxWxH)
Weight:
Approx. 300 g (approx. 1000 g)

Complete Kit

Delivery Includes:
  • Display unit with transport packaging,
  • AC-adapter,
  • Operating instruction in German and English,
  • Certificate of Compliance with the order 2.1 according to EN 10204
