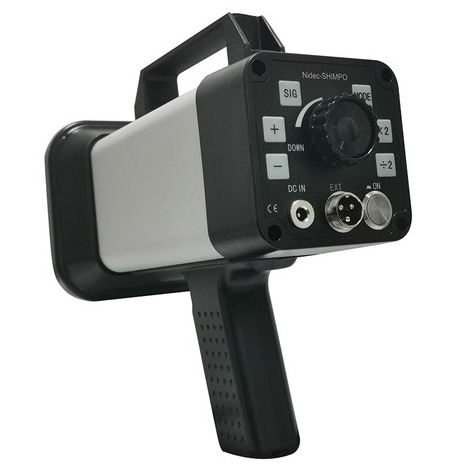

DT-735 Xenon Stroboscope with rechargeable Battery
The DT-735 Portable, Lightweight Stroboscope with Rechargeable Battery
Checkline's DT-735 is an affordable industrial-quality stroboscope that is portable and highly stable. It can be used for observation and non-contact inspection of moving parts.
Applied on a moving target the DT-735 stroboscope provides the user the illusion of stopped or slowed down equipment movement.
Flash Range: from 60 to 12,000 RPM/FPM
With its rugged metal enclosure the DT-735 can withstand harsh industrial usage. Included are handles for top and bottom to aid in portability and flexible usage.
The DT-735 is powered by an internal rechargeable battery, and can also be operated directly from AC-Power for continuous use.The flash rate can be altered by the user during operation to visually inspect rotating or reciprocating machinery without stopping production.
This makes the DT-735 the perfect tool for quality inspection and preventive maintenance on this type of equipment.
Features
- NIST-Traceable Calibration Certificate & Test Report optionally available
- Can be operated directly from AC-Power for continuous use
- Includes top and bottom handle to allow user operation preference
- Easy-to-use controls with bright LED display
- CE Certified
The DT-735 comes with:
- Upper and Lower Handle
- AC converter charger with cable
- 3 pin female M16 threaded connector
- English manual
A traceable calibration certificate is optionally available.
The DT-735-KIT includes an additional carrying case and a spare flash tube.
Dimensions
Accessories
Specifications
| Flash range | 60 -12.000 FPM |
| Flash Resolution | 0.1 from 60-9999; 1 from 6,001-12,000 |
| Accuracy | ± 0.01% |
| Display | LED 5 digit, 10 mm high |
| Flash Tube | Xenon ≤ 45W |
| Tube Life | 50.000.000 flashes |
| Flash Duration | 10-30 μs automatically adjusts with flash rate |
| External Trigger Input | 5V ~ 12V pulse signal (high level trigger) up to 50 mA |
| Lux Rating | 20 cm Distance = 1550 lx @ 1500 fpm, 2350 lx @ 6000 fpm with 400 mm irradiation diameter 50 cm Distance = 650 lx @ 1500 fpm , 580 lx @ 6000 fpm with 600 mm irradiation diameter |
| Battery Type | Ni-MH |
| Battery Life | 1.5 to 2 hours depending on settings |
| Charging Time | 5 hours to full charge |
| Power Requirement | 100-240 VAC 50/60 Hz |
| Operating Temperature | 0 - 40°C |
| Air humidity | 85 % RH, max. |
| Dimensions | 250 x 120 x 120 mm |
| Product Weight | 1,25 kg |
| Package Weight | 1,86 kg |
| Warranty | 1 year |
| Certification | CE |
| Included Accessories | Upper and Lower Handle, AC charger with cable |
