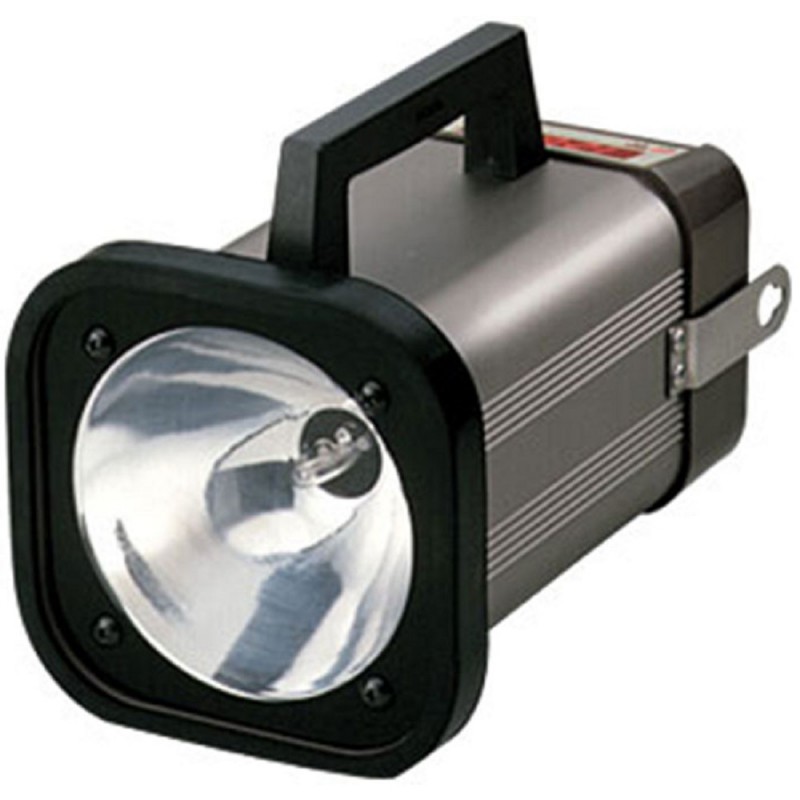

DT-315P Splashproof Digital Stroboscope with Internal Battery


LIMTED RANGE: 60.0-3.300 RPM/FPM

The DT-315P portable digital splashproof stroboscope is designed for use in the harshest manufacturing environments and meets the specifications of protection code IP65.

Designed for observing fast repeated motions and for determining RPM or inspection and observation of moving parts by "freezing" or "slowing down" the action.

The DT-315P strobe can be triggered by means of an external sensor (power supply for the sensor is provided by the stroboscope). The flashes can be delayed either in time or in rotation angle.


Features
  • LIMITED RANGE: 60.0-3,300 RPM/FPM

  • Hand-held or tripod operation
  • Water & Dustproof housing (IP65)
  • Easy-to-read LED display
  • Accepts external trigger input and provides synchronizing pulse output
  • Phase shift for best view and flash photography
  • Powered by internal rechargeable battery
  • Easy-to-operate controls

Accessories

Specifications
Flash Range
60.0-3,300 FPM
Accuracy
± 1 digit
Delay Setter
Rotary Encoder
Display
4 digits, 10mm high Red LED
Divide Ratio
1/1, 1/2, 1/3, 1/4, 2/4 with shift
Input Signal
LO level: 0-0.4 VDC
HI level: 2.5 - 12 VDC -- or open collector (npn)
pulse width 50us min
Input Impedance
47 ohms
Display Mode
Phase shift (degree), Tachometer
Flashtube
Xenon, max 10 W
Operating Temp
0 to 40°
Power Requirements
230 V AC (115 V can also be ordered)
Dimensions
130 x 158 x 259 mm (WxHxL)
Weight
2.1 Kg (4.6 lbs)
Warranty
1 year

Buy Now
Product

Product name
Price
Quantity
DT-315P-2 - Limited to 3300 RPM - Stroboscope 230 VAC
€ 1.364,00

Accessories

Product name
Price
Quantity
DT-315P-CHGR - Charger for DT-315P-2 (230V AC)
€ 236,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available , preorder 1-2 weeks , special order, request
