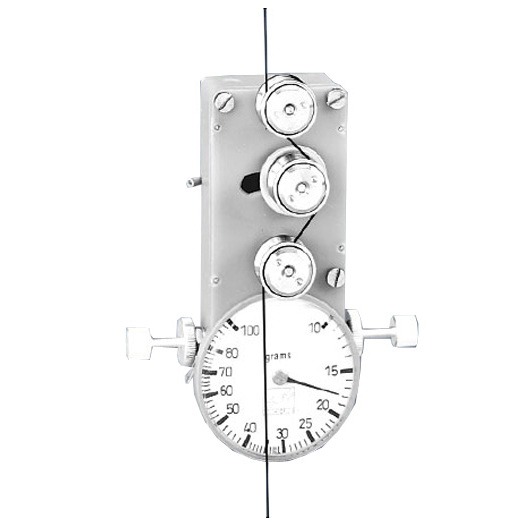

MK2 Stationary Tension Meter


Made in GermanyThe MK2 Tension Meter accurately measures running line tensions on a wide variety of yarns, fibers, wires, etc. It's designed for fixed mounting for continouing tension measurement.

Threaded mounting holes are provided on the back side and edge of the housing.

Features
  • Adjustable maximum tension detector contact can provide a low voltage signal when tensions exceed the user-set maximum limit.
  • Built-in magnetic damping averages out tension fluctuations.
  • Chromed steel, V-grooved guide rollers for speeds up to 1000 m/min or, optionally, 5000 m/min.

Dimensions
Dimensions Stationary Tension Meters MK2


Tension Ranges
ModelRanges Measuring Head Width* Calibration Material**

MK2-12 3 - 12 cN 56 mmPA: 0.12 mm Ø
MK2-20 5 - 20 cN 56 mmPA: 0.12 mm Ø
MK2-30 5 - 30 cN 56 mmPA: 0.12 mm Ø
MK2-50 10 - 50 cN 56 mmPA: 0.12 mm Ø
MK2-100 10 - 100 cN 56 mmPA: 0.12 mm Ø
MK2-250 20 - 250 cN 56 mmPA: 0.12 mm Ø
MK2-300 20 - 300 cN 56 mmPA: 0.20 mm Ø
MK2-400 50 - 400 cN 56 mmPA: 0.20 mm Ø
Other tension ranges, measuring head widths available on request.
Other units of measure available – g.
* Outer distance between outside guide rollers.
** Suitable for 95 % of applications – PA = Polyamide Monofilament
