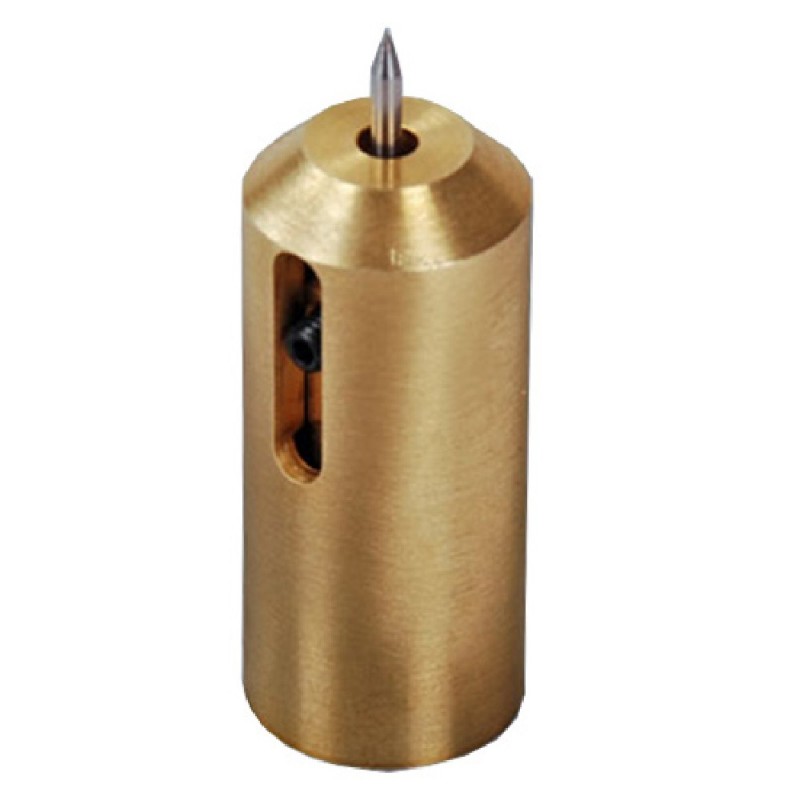

FG-M6PUNCTUREST Puncture Attachment


The FG-M6PUNCTUREST fixture is especially designed for field puncture testing of many types of construction materials and to test the ripeness of fruit & vegetables.

The FG-M6PUNCTUREST fixture is threaded to the sensor head (M6) of the FGV or FGE force gauge.
The outer shell retracts as a load is applied with the force gauge to the test material. As the retraction of the outer shell occurs, the pin becomes exposed.

The puncture test continues untill the outer shell comes to a stop from contact with the base of the force gauge. The force reading displayed (Peak) on your force gauge will indicate the puncture resistance of your test material.

It can be used for testing of:

  • Ripeness of fruit & vegetables
  • Gypsum board
  • Wallboard
  • Blister packs
  • Plastic tubing
  • Food and Medical packaging products
  • Cardboard
  • Foam
  • Cork

Related Products

FGV-XY Digital Force Gauge with USB Output


  • Accuracy of ±0.2%
    providing superb repeatability
  • USB, RS-232 & Analog Outputs-- all included!
    3 different outputs for data transfer provides maximum flexibility

More details

FGV-XY Digital Force Gauge with USB Output

Operating Principle


Dimensions
Dimensions Shimpo Attachments  FG-M6PUNCTUREST


Specifications
Thread
M6 (Female Thread)
Length
34,91 mm
Diameter
Ø 15,04 mm
Depth of indentation
10 mm
Diameter indentor
Ø 1,60 mm

Buy Now
Product

Product name
Price
Quantity
FG-M6PUNCTUREST - Puncture Attachement
€ 89,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available , preorder 1-2 weeks , special order, request
