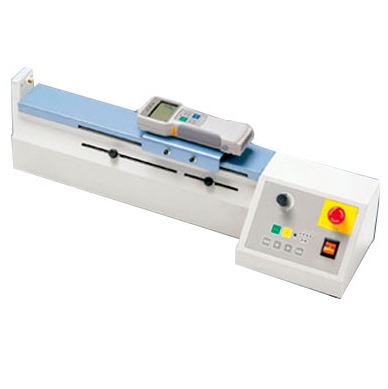

ML-275 Motorized Horizontal Test Stand


2 Models Available
ML-275
- Basic Model
MH-275 - With Auto Cycle & Force Control

The new ML-275 motorized test stand is designed for tension, compression, and friction testing. Combination of screw system and state-of-the-art brushless motor provides extremely smooth and powerful operation over the entire speed range. Speed control, quick return and emergency stop are standard features.

The ML-275 accepts the DPS, Z2 & ZP force gauges, additional models require the AP-002 adapter plate.

MH-275 Additional Features

High/Low Setpoint Force Control

When the force value reaches the Low setpoint, force control is activated to hold the tension or compression force between the High and Low setpoints programmed on the Imada Z Series force gauge. Use the optional digital timer to program the duration of the hold, up to 100 minutes in 1second increments. Ideal for non-destructive testing.

High Setpoint Force Control
When the force value reaches the Low setpoint, speed is reduced to the test speed set by the Speed Adjust Knob, and when the tension or compression force value reaches the High setpoint programmed on the Imada Z Series force gauge, the test stops. Ideal for creep testing.

Speed control, quick return and emergency stop are standard features. The MH-275 accepts any of the standard range Imada force gauges. Optional timer and digital distance meter available.

*FORCE GAUGE NOT INCLUDED
Designed to work with the DPS, Z2 & ZP force gauges.

Features

  • One stand for both compression (push) and tension (pull) tests
  • No programming required
  • Digital Distance Meter Optional

Speed Ranges

Standard Speed 0.3 – 7 in/min
(10 - 292 mm/min)
Low Speed 0.2 - 4.2 in/min
(18 - 584 mm/min)
High Speed 0.6 - 15.7 in/min
(38 - 1194 mm/min)

Dimensions

Dimensions Motorized Force Test Stands ML-275


Related Products

Z2 Digital Force Gauge


  • Ergonomically-designed, rugged die-cast aluminum housing
  • "Zero Set" to zero the gauge in all operating positions (Tare)
  • Easy to use
  • Overload protection 200 % full scale
  • For hand-held use or mounting on test stands
  • ISO/IEC 17025 Long-form Certificate & Test Data is optionally available
  • Output signals (RS 232 C, analog and Mitutoyo Digimatic)
  • Quick display update rate of 20 times/s
  • User selectable units: N, kgf (gf) and lb (oz)
  • Operates on rechargeable NiCd batteries or AC adapter
  • Selectable Modes
    Real Time (to display load transients)
  • Supplied with NIST Calibration certificate
  • Display can be reversed for inverted use: e.g. on teststands
  • 2 Year Warranty

More details

DS2 Digital Force Gauge


  • Real time and peak mode (selectable)
  • Overload capacity 200% F.S.
  • RS-232C, Digimatic and analog outputs
  • Supplied with NIST Calibration certificate
  • 2 Year Warranty
  • Display can be reversed for inverted use: e.g. on teststands
  • Programmable High/Low setpoints with LCD indicators
  • lb, kg, and Newton units are push-button selectable
  • User selectable sampling rate, 30 or 1000 per/second (Hertz)
  • Ergonomic, heavy-duty metal construction
  • Reversible Display
  • Overload alarm, low battery display indicator
  • ISO/IEC 17025 Long-form Certificate & Test Data is optionally available
  • Runs on internal NI-MH batteries or AC adapter

More details


Specifications

Capacity
275 lbs / 125 Kg / 1250 N
Stroke
11.8" / 300 mm
Travel Rate
Refer to Speed Ranges above
Dimensions
Refer to dimensions above
Weight
31 lbs / 14 kg
Compatible Gauges
DS2, Z2 and ZP
Warranty
2 years

Buy Now

Products


Product name
Price
Quantity
ML-275 - Horizontal Test Stand
€ 4.468,00

MH-275 - Horizontal Test Stand
€ 5.339,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available , preorder 1-2 weeks , special order, request
