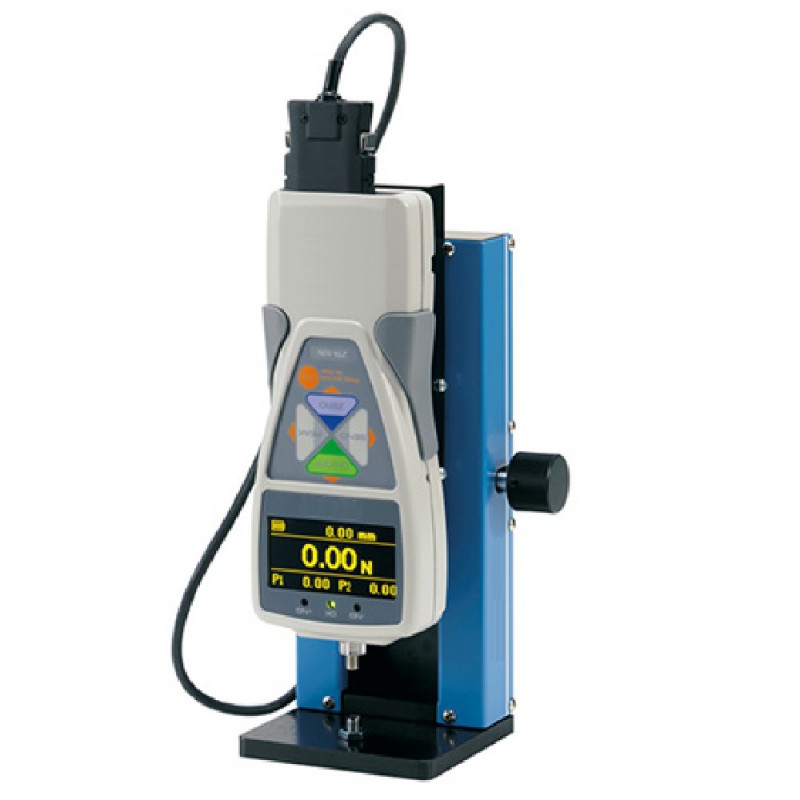

FSA-MSL Force-Displacement Measurement Unit


The FSA-MSL portable force/displacment tester is capable of measuring force and displacement for various samples such as a switch, a cushion, a piece of metal, tape and more. This Manual Mini Material Tester is ideal for tests requiring very small movement. The space saving design realizes the measurement at any places such as on your desk, production line, etc.

The tester also features a reversible base plate, allowing the tester to be used on uneven or obstructed surfaces. The highly visible EL display and plain language menus in eight languages make programming fast and easy. Both force and displacement values are displayed plus user-selectable data; high/low setpoints, peak, memory data, etc.

4 Available models: 2N, 5N, 20N, or 50N.

Simple Setup You mount the force gauge on the test stand. You can perform force-displacement measurement easily and precisely as it has high operability and high accuracyby using with necessary fixtures and connecting external equipment according to your needs.

Auto Start Displacement

The auto start displacement feature enables users to quickly apply a certain force and read displacement or stop at a certain displacement and read the force value. The manual control knob moves the gauge 18mm per turn for precise control during tests.

Force Recorder Professional Included

Moreover, the relationship is visualizable with the included Force Recorder software on PC. You can analyze in detail because the graph is drawn with captured data at 2000Hz sampling rate. It captures both force and displacement data and create force vs. displacement profile graphs. Data can be captured to a pc at up to 2,000 data points per second. Data acquisition can also be accomplished in the field. The tester can output directly to a USB flash drive in CSV format at  100 data/second. Peak data can be saved to gauge memory and exported to USB-flash drives.


Features


Complete Kit

All Models are sold as a complete system. System includes,

  • Test stand
  • Force gauge
  • Set of six measuring attachments
  • AC adapter/charger
  • 3-Point Certificate traceable to NIST
  • Plastic carrying case

(ISO Certificates are available at an additional charge)



Dimensions

Dimensions Mechanical Force Test Stands FSA-MSL


Specifications

Accuracy
Force: ±0.2% F.S. ±1 digit Displacement: ±0.1mm ±1 digit (under no load)
Selectable Units
Newtons, kgf (gf) or lbf (ozf)
Overload Capacity
200% of F.S. (Overload indicator flashes beyond 110% of F.S.)
Power
Rechargeable Ni-MH battery pack or AC adapter
Battery Indicator
Indicates three charge states high, med and low
Memory
Non-volative, recall up to 1,000 data
Setpoints
Programmable high/low setpoints w/ color-coded LEDs & output signal
Outputs
Outputs USB (virtual COM port), RS-232C, Digimatic and ± 2 VDC analog output
Display
4-digit Organic EL
Display update
10 / sec
Sampling rate
2000 data / sec at maximum
Weight
1,2 kg
Dimensons
204 x 109,4 x 72 mm
Warranty
1 year
Resolution
Force: 4 digit (e.g. Resolution of 5N force gauge is 0.001N) Displacement: 0.001mm (on Force Recorder Pro) 0.01mm (on force gauge display)
Ranges (select one)
2N, 5N, 20N, or 50N
Stroke
Approx: 80mm max.
Travel
Manual knob, 18mm per 1 complete turn

Video


FSA-MSL Ranges

Ranges lbf kgf N
FSA-MSL-0.4 7ozf 200.0 gf 2N
FSA-MSL-1 18 ozf 500.0 gf 5N
FSA-MSL-4 4.4 lbf 2.000 kgf 20N
FSA-MSL-11 11 lbf 5.000 kgf 50N

Buy Now

Products


Product name
Price
Quantity
FSA-MSL-0,4 Portable Force/Displacement Tester
€ 4.910,00

FSA-MSL-1 Portable Force/Displacement Tester
€ 4.910,00

FSA-MSL-4 Portable Force/Displacement Tester
€ 4.910,00

FSA-MSL-11 Portable Force/Displacement Tester
€ 4.910,00
