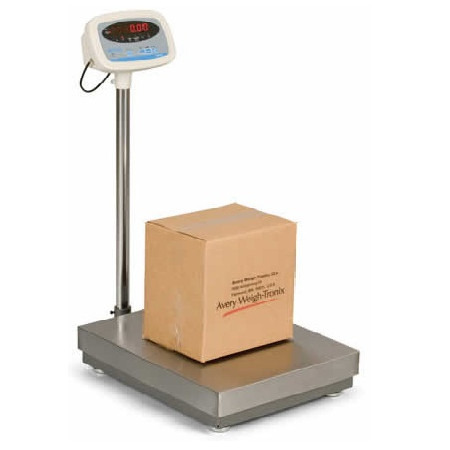

S100 Industrial Scales


The S100 is a low cost general purpose, self-contained industrial scale with RS-232 interface for simple non-trade weighing applications.
The S100 has a robust-design with re-enforced painted mild steel base, stainless steel weight platter and pole, robust ABS plastic indicator with strain relief connections, and heavy duty adjustable foot assemblies.


Features
  • Column or Desk Mount Indicator– Attach the indicator to the stainless steel column to provide a total height of 927 mm or remote the indicator up to 1220 mm without the use of column.
  • ON/OFF Switch– Remove power from indicator to increase battery performance and life of product
  • Weight Hold Functions– Can be configurable for manual button release, automatic release on change in weight, or within +/- 3-50 scale divisions
  • RS-232 Interface– SBI 100 indicator can be configured for weight only or GTN via continuous output, print key, or stable weight. Choose bi-directional interface for communication to a PC
  • Auto Shut-off Timer– Adjustable from 1-15 minutes or Off
  • Internal Rechargeable Battery– Low battery and battery charging annunciators indicate status of lead-acid battery. Battery is charged while AC power is active
  • Units Switching– Can be configured for LB/KG switching, LB only, or KG only
  • Adjustable Resolution Setting– Factory default setting of 6,000 or 7,500 divisions can be modified to increase performance within certain applications
  • Adjustable Scale Setting– Power on zero, AZT, 4 filter settings, weight stability, overload, baud rate and status bits
  • Robust Design– Re-enforced painted mild steel base, stainless steel weight platter and pole, robust ABS plastic indicator with strain relief connections, and heavy duty adjustable foot assemblies

Dimensions
Dimensions Industrial Scales S100


Tension Ranges
Model Capacity x Resultion Pan Size
S100-150 75 kg x 0.01 kg
150 lb x 0.02 lb
457 mm x 559 mm
18" X 22"

S100-300 150 kg x 0.02 kg
300 lb x 0.05 lb
457 mm x 559 mm
18" X 22"

S100-600 300 kg x 0.05 kg
600 lb x 0.1 lb
457 mm x 559 mm
18" X 22"


Specifications
Pan Size
457 mm x 559 mm (18" X 22")
Accuracy
0.01% of full scale
Construction
Mild steel base, stainless steel top cover and display pole, ABS plastic indicator
Display
Six digit 20 mm / 0.8" high red LED display with 8 separate LED annunciators
Annunciators
Net, zero, kg, lb, hold, low battery, battery charging, mains connected
RS-232 Interface:
SBI 100 indicator can be configured for weight only or GTN via continuous output, print key, or stable weight. Choose bi-directional interface for communication to a PC
ON/OFF Switch
Remove power from indicator to increase battery performance and life of product
Auto Shut-off Timer
Adjustable from 1-15 minutes or Off
Weight Hold Functions
Can be configurable for manual button release, automatic release on change in weight, or within +/- 3-50 scale divisions
Internal Rechargeable Battery
: Low battery and battery charging annunciators indicate status of lead-acid battery. Battery is charged while AC power is active.
Units Switching
Can be configured for LB/KG switching, LB only, or KG only
Adjustable Resolution Setting
Factory default setting
Adjustable Scale Setting
Power on zero, AZT, 4 filter of 6,000 or 7,500 divisions can be modified to increase performance within certain applications
Tare
100% subtractive
RS-232
Standard 9 pin straight pass through interface connector, interface cable not included
Function Keys
Power Switch, On/Off/Zero, Tare, Units, Hold/Print
Power
Version Power Supply 230V @ 50 Hz 12 VDC, 500mA, CE approved 3 pin UK and 2 pin EU 230V wall mount power adapters
Battery Life
Up-to 35 hours of continuous use
Operating Temperature
5° C to 35° C / 41° F to 95° F
Weight
20 kg / 44 lb
Shipping Weight
24 kg / 53 lb
Packaging Dimension
965 mm (L) x 610 mm (W) x 203 mm (H)
35" L x 24" W x 8" H
Certification
Full FCC compliance, UL/CUL power adapter,

Downloads

Buy Now
Products

Product name
Price
Quantity
S100-150 Industrial Scales (75 kg x 0.01 kg)
€ 255,00
S100-300 Industrial Scales (150 kg x 0.02 kg)
€ 255,00
S100-600 Industrial Scales (300 kg x 0.05 kg)
€ 255,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available , preorder 1-2 weeks , special order, request
