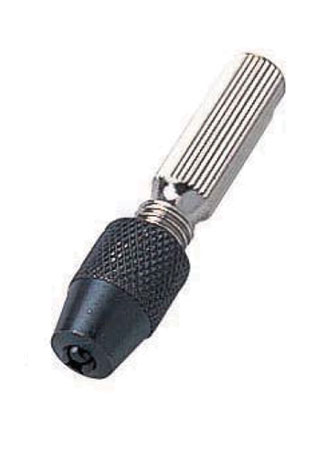

CP-150N Small Pin Grips


Capacity: 150N
Sample Range: 0 - 3.2mm / 0 - 0.126in
Thread Size: M6, P1

Grip to use with small diameter wires, pins, filaments.

Measures samples from 0 - 3.2mm / 0-.126in using 2 double side collets.
The two double sided collets take sample diameters of:
0 - 1.7 / 2.3 - 2.7 mm Ø
1.7 - 2.3 / 2.7 - 3.2 mm Ø

This grip is used for tension and compression measurements.


Dimensions
Dimensions-CP-150N


Specifications
Capacity150N
Sample Range0 - 3.2mm / 0 - 0.126in
Thread SizeM6, P1

Buy Now
Product

Product
Price
Quantity
CP-150N - Pin Grip, 0-3.2mm
€ 95,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1-3 days , Delivery time: 1-3 weeks , special order, request
