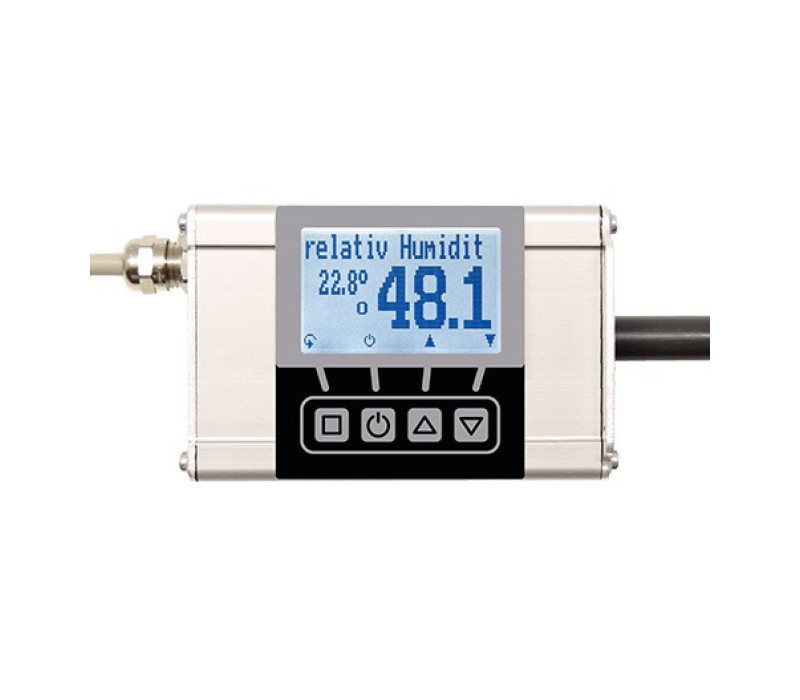

139303 - Optional Display with keyboard for RMS-TD

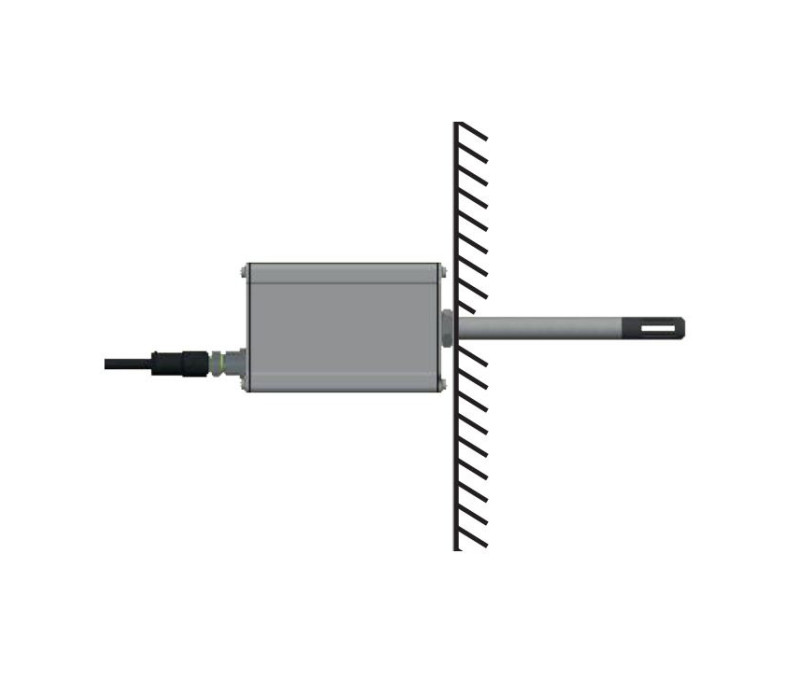

Mounting of RMS-TD-60

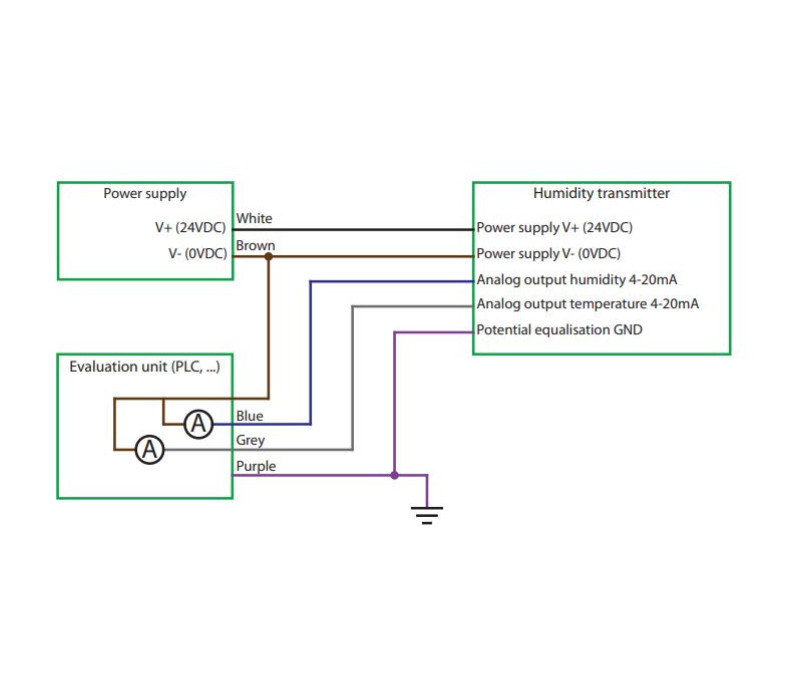

Wiring Diagram

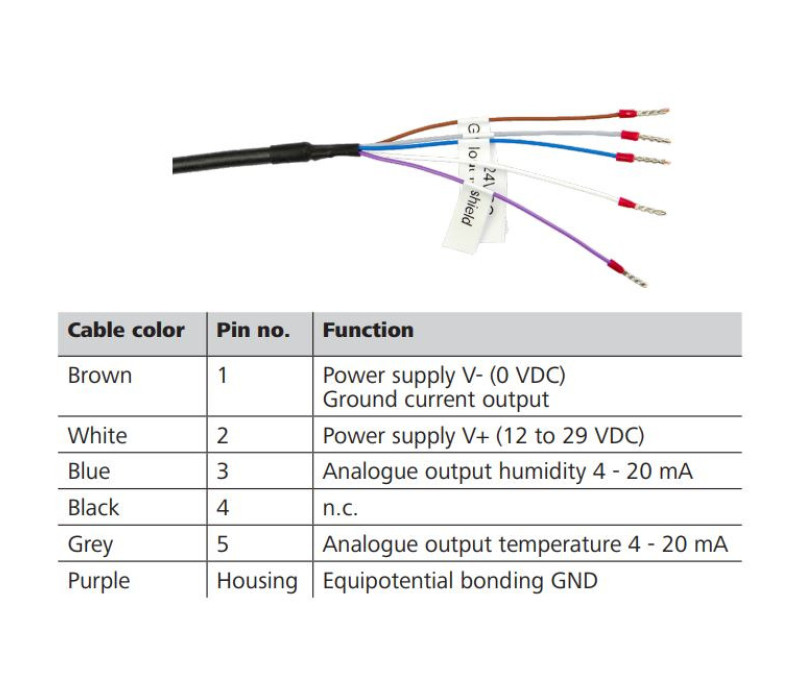

Pin Assigment

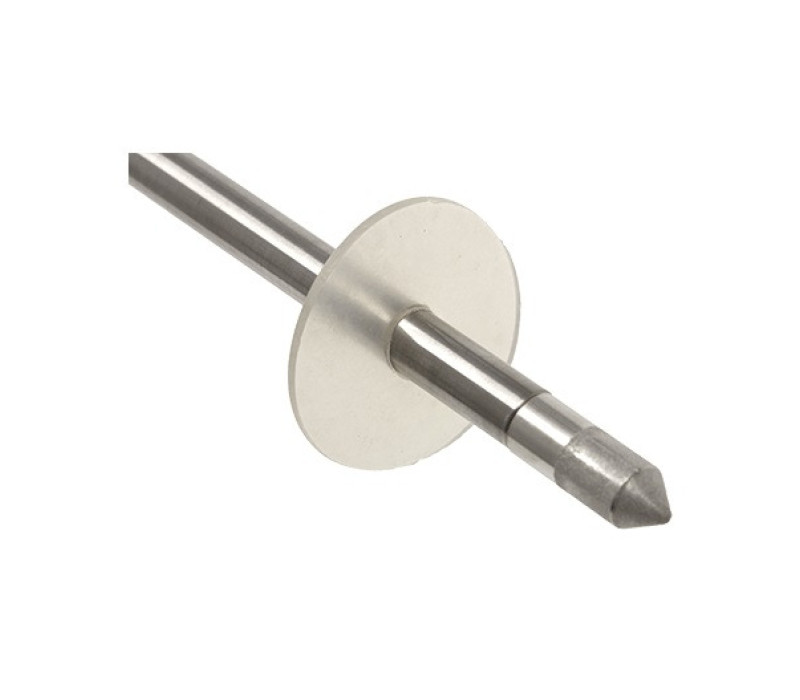

139298 - Drip-protector

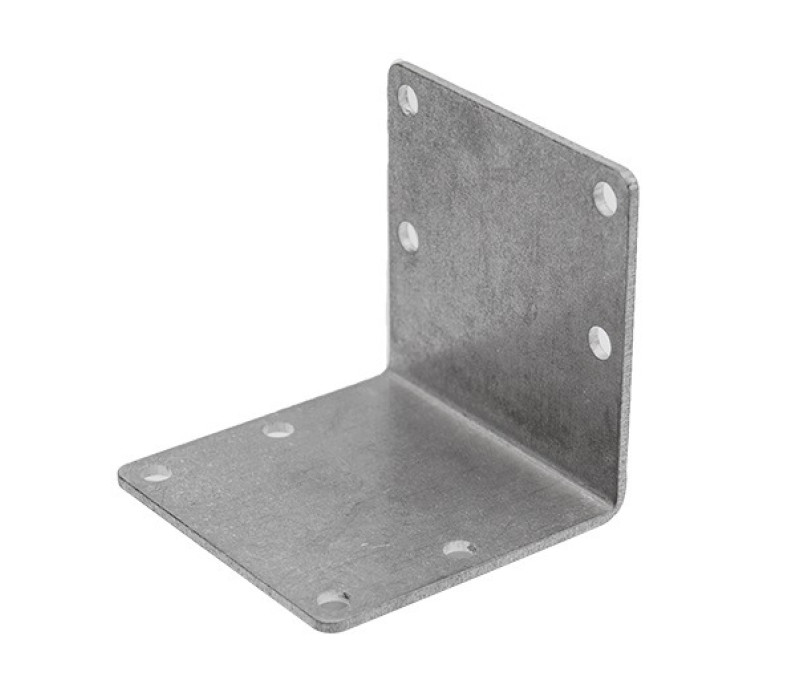

139299 - Angle bracket

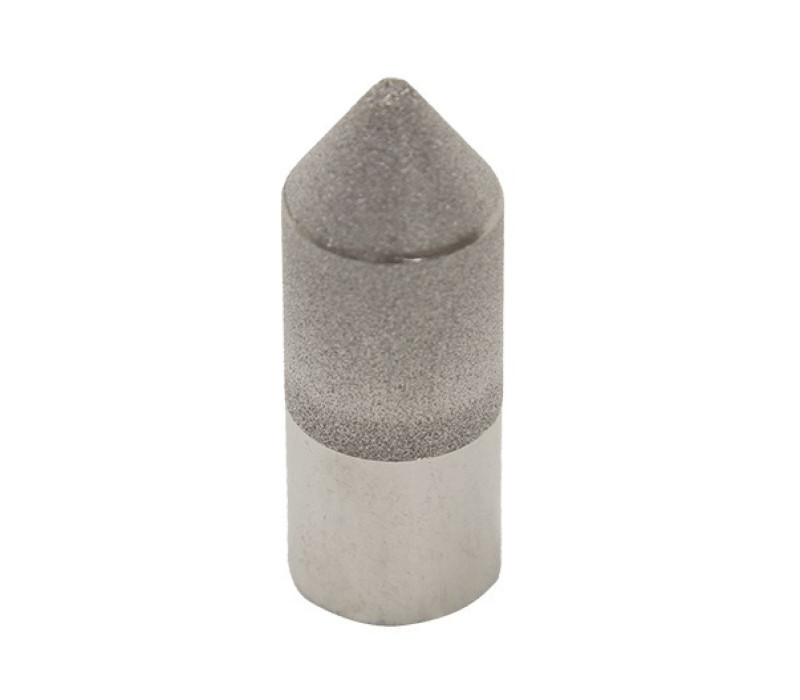

132002-Stainless Steel Sinter Sensor Cap

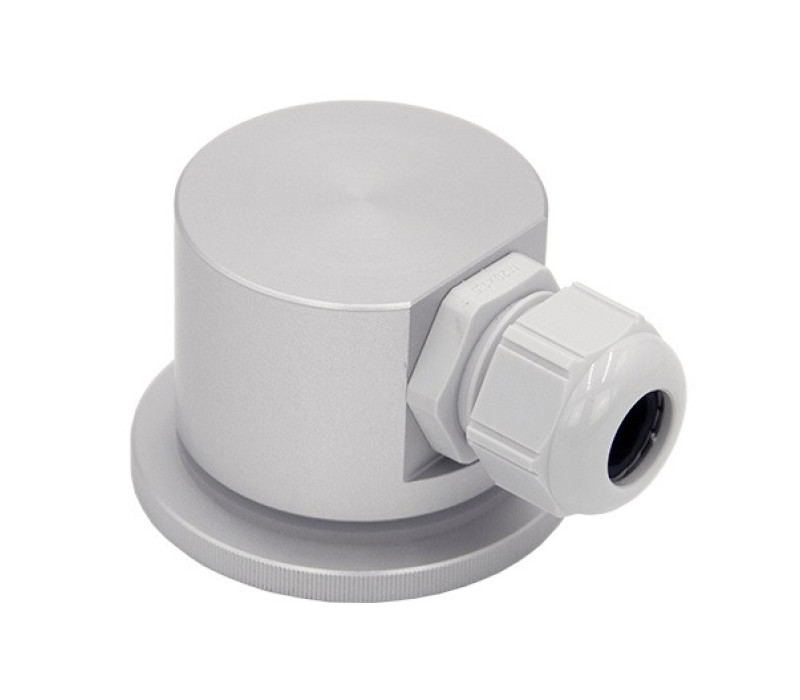

132003 - CAL-UNIT-TUBE - Calibration equipment for tube sensor

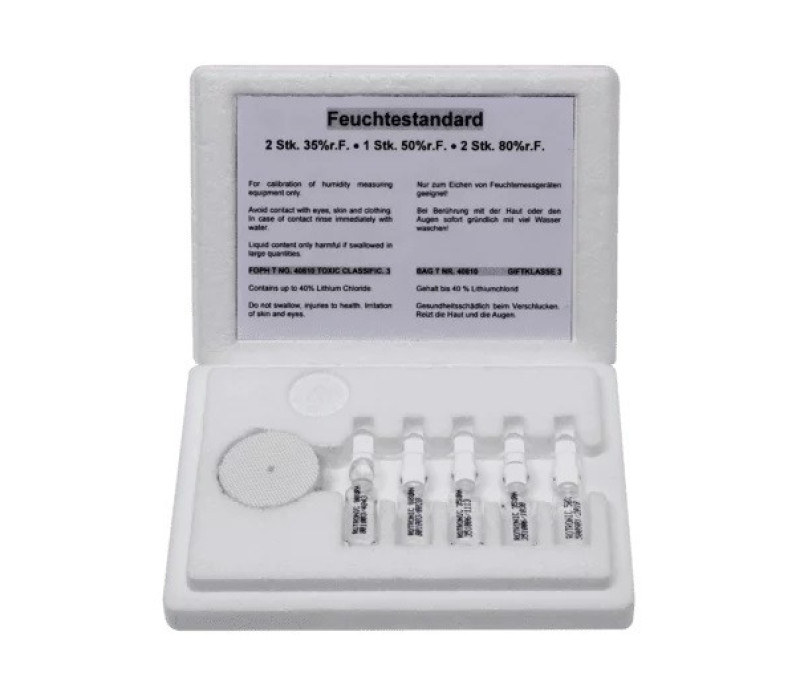

138112 - RH-CAL-AMPVAR - Certified calibration ampoules 2x35%, 1x50%, 2x80%

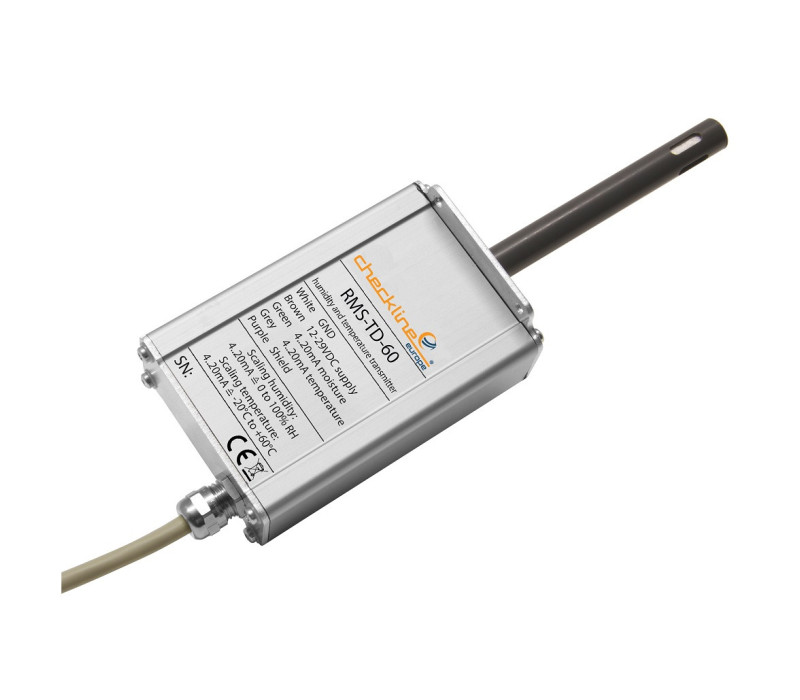

RMS-TD-60 Digital Humidity & Temperature Transmitter

The Checkline RMS-TD-60 Industrial measuring transducer designed for monitoring relative moisture and temperature.
The RMS-TD-60 with a Robust stainless steel sensor tube (Ø12 x 100 mm) Digital Humidity-Temperature Transmitter for maximum temperatures of 60°C, makes it possible to detect even small fluctuations in humidity and their tendencies quickly and reliably so that preventive actions can be taken.

For applications for laboratory, climate control and drying technology, wood processing industry, food and animal feed industry, building industry, printing and paper industry, agriculture, biotechnology and pharmaceutical industry

In the manufacturing process, subsequent processing, storage, and transportation, precise determination of moisture and temperature becomes increasingly crucial. Only accurate moisture monitoring can ensure high product quality.

The RMS-TD 60 comes with connection cable of 1.9 m length, optional available are several accessories & possible add-ons:

Calibration equipment for tube sensor
Certified calibration ampoules - set of 5: 2 units with 35 % RH, 1 unit with 50 % RH, 2 units with 80 % RH
Drip-protection for RMS-TD transmitter
Angle bracket for RMS-TD
RS232 interface for RMS-TD
USB interface for RMS-TD
Ethernet interface for RMS-TD
Display with keyboard for RMS-TD
HumiSenseWare RMS-TD Standard-Licence Live Trend
HumiSenseWare RMS-TD Option Data Management and Recording
HumiSenseWare optional package for integration of 3 additional sensors
Relay output for moisture for RMS-TD

€ 190,00

Shop now

Temperature range: max. 60 °C
Analog output (optional: interfaces such as RS232, Ethernet or USB)
Stainless steel sensor tube - Ø12 x 100 mm

RMS-TD-60
Connecting cable of 1.9 m length
Operating manual

Output	Analog output
Relative Humidity	0 to 100%
Accuracy Moisture	+/- 2% (10 to 90%)
Output Moisture	4 to 20mA (0 to 100%)
Temperature Range	-20 to +60 °C
Accuracy Temperature	+/- 0,3 °C (+10 to +60 °C)
Power supply	12 to 29VDC
Temperature electronics	-20 to +85 °C
Dimensions Electronics Housing	70 x 32 x 120 mm
Dimensions Sensor	Plastic sensor tube / Ø12 x 100 mm
Optional interfaces	RS232, USB, Ethernet
Warranty	1 Year

RMS-TD-60

RMS-TD-DISPLAY Option

Products

Item	Product	Price	Quantity	Action
138028	ATG-200-25-M - Analogue Thickness Gauge, Feeler M	€ 190,00

Accessories

Item	Product	Price
132003	CAL-UNIT-TUBE - Calibration adapter for tube sensor	€ 198,00
138112	RH-CAL-AMPVAR - Certified calibration ampoules 2x35%, 1x50%, 2x80%	€ 114,00
138113	RH-CAL-AMP50 - Certified calibration ampoules 5 x50%	€ 114,00
139298	Drip-protection for RMS-TD transmitter	€ 16,00
139299	Angle bracket for RMS-TD	€ 37,00
139300	RS232 interface for RMS-TD	€ 223,00
139301	USB interface for RMS-TD	€ 186,00
139302	Ethernet interface for RMS-TD	€ 434,00
139303	RMS-TD-DISPLAY - Optional display with keyboard for RMS-TD Transmitters	€ 223,00
139304	Relay output for moisture for RMS-TD	€ 242,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request

View Cart Check out

RMS-TD-60 Digital Humidity & Temperature Transmitter

Features

Dimensions

Specifications

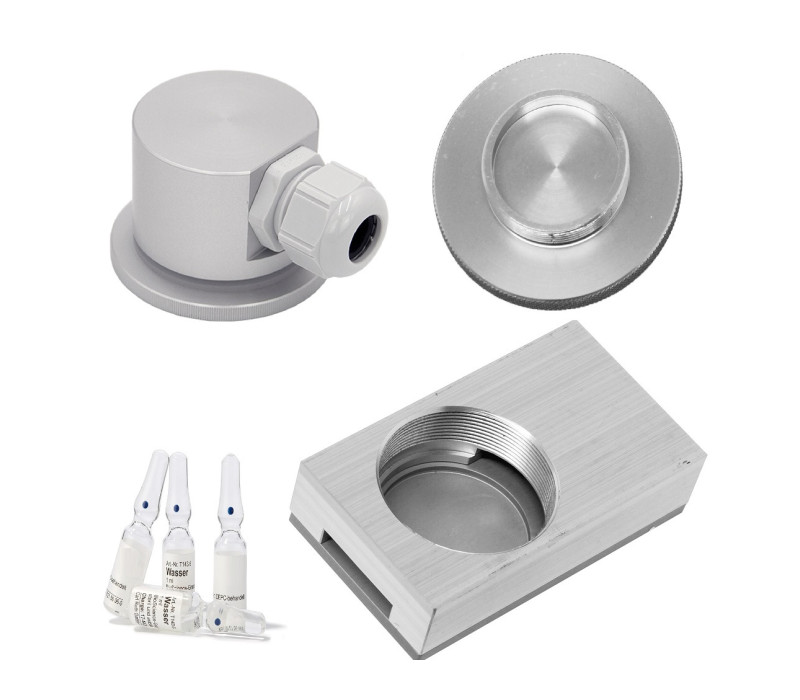

CAL-UNIT Calibration Adapter for RH Moisture Meters & RMS-TD Transmitters
