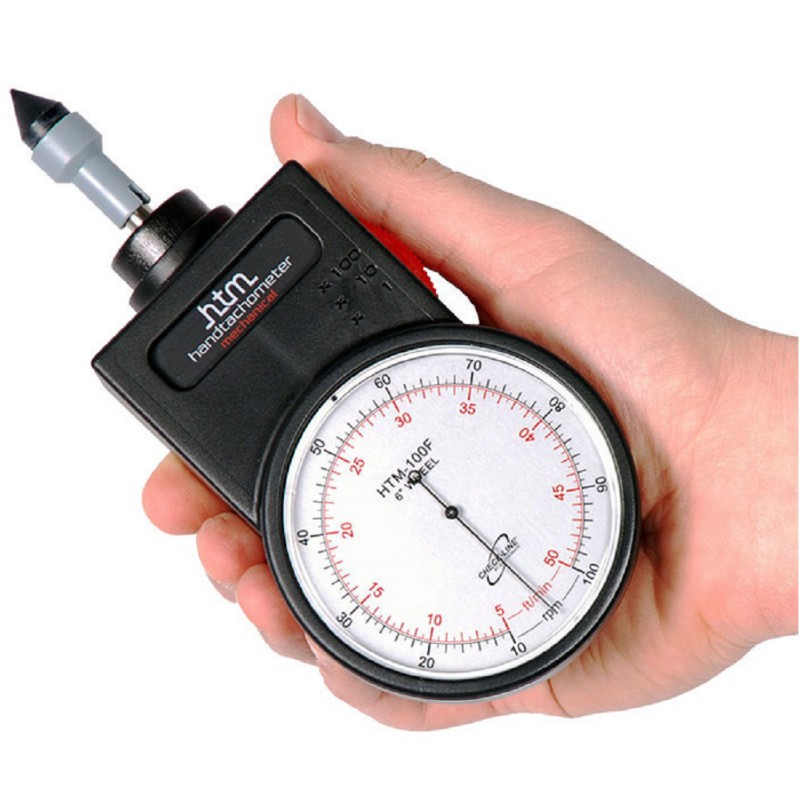

HTM Hand-Held Mechanical Tachometer


4 Models, 2-English & 2-Metric
HTM-100F 10-10,000 rpm/5-5,000 ft/min
HTM-100M 10-10,000 rpm/1-1,000 m/min
HTM-500F 30-50,000 rpm/15-25,000 ft/min
HTM-500M 30-50,000 rpm/3-5,000 m/min

The new HTM mechanical hand-tachometer is designed to accurately measure RPM and surface speed on a wide range of applications. Favored in several industries, including elevator maintenance, mining industry and others, Mechanical Tachometers using a pointer and dial to display RPM or surface speed --- without the need for batteries!

Additionally, the range of variation and frequency of variation of the measurement is evident with the speed and span of the movement of the pointer. Includes Peak-Hold button. 3-Position Range Selector Switch provides highest possible resolution for each application. All HTM models are rated at an accuracy of ± 0.5% Full Scale or better.

The HTM is supplied fitted with a durable rubber sleeve providing extra ergonomic benefits for comfortable and secure hand-held use and provided an additional measure of physical & environmental protection. The RED 3-Position Range Selector Switch provides highest possible resolution for each application providing a multiplier of 1X, 10X or 100X for reading of dial.


Features
  • CE-Certified
  • Self-contained--- NO BATTERIES required!
  • Rubber shell on housing provides extra protection and improved grip
  • Supplied as a complete kit with cone & funnel tip adapters, shaft extension & surface speed wheel in foam-fitted carrying case
  • Over-sized Dial (75mm) uses 2 separate color scales making reading RPM (black) and Surface Speed (red) .... quick and easy
  • Accuracy of ± 0.5% Full Scale
  • 3-Position Range Selector Switch provides highest possible resolution for each application
  • Warranty of 18 months
  • Memory button holds pointer in "last" position until reset

Complete Kit
All models are supplied as a complete kit in foam-fitted carrying case including cone tip and funnel tip adapters, shaft extension and instruction manual.

HTM-100F/500F models include 6" circumference surface wheel while HTM-100M/500M models are supplied with a 0.1 meter circumference surface wheel.

Dimensions
Dimensions-HTM


Included Accessories
  HTM-100F HTM-500F HTM-100M HTM-500M
6" Wheel
0.1m Wheel
Cone Tip
Funnel Tip
Shaft Extension

Specifications
Accuracy ±0.5% Full Scale
RPM Ranges
HTM-100F/M
10-10,000 rpm
x1: 10-100
x10: 100-1,000
x100: 1000-10,000
HTM-500F/M
30-50,000 rpm
x1: 30-500
x10: 300-5,000
x100: 3000-50,000
Surface Speed Range
100-Series Models
HTM-100F
5-5,000 ft/min
x1: 5-50
x10: 50-500
x100: 500-5,000
HTM-100M
1-1,000 m/min
x1: 1-10
x10: 10-100
x100: 100-1,000
Surface Speed Range
500-Series Models
HTM-500F
15-25,000 ft/min
x1: 15-250
x10: 150-2,500
x100: 1,500-25,000
HTM-500M
3-5,000 m/min
x1: 3-50
x10: 30-500
x100: 300-5,000
Surface Speed Range
Metric Models
Must divide value on dial by 10
HTM-100M and HTM-500M models only
Certifications CE
Dial 75 mm diameter, 2-color grid
RPM-Black and SURFACE SPEED-Red
Dimensions - tach 155 x 85 x 55 mm
Dimensions - kit 252 x 207 x 60 mm
Housing Material Plastic
Weight 300 g
Warranty 18 months
Operating Temp. 0°C - 40°C
Storage Temp. -10°C - 40°C

Buy Now
Products

Product
Price
Quantity
134015
HTM-100M Hand-Held Mechanical Tach, complete Kit (10-10,000 rpm/1-1,000 m/min)
€ 375,00
134016
HTM-500M Hand-Held Mechanical Tach, complete Kit (30-50,000 rpm/3-5,000 m/min)
€ 375,00
134013
HTM-100F Hand-Held Mechanical Tach, complete Kit (10-10,000 rpm/5-5,000 ft/min)
€ 375,00
134014
HTM-500F Hand-Held Mechanical Tach, complete Kit (30-50,000 rpm/15-25,000 ft/min)
€ 375,00

Accessories

Product
Price
Quantity
130043
DTCA Cone Tip for Hand-held tachometers
€ 17,00
130044
DTFA Funnel Adapter - Funnel Tip for Hand-held tachometers
€ 17,00
126678
DT6 Rubber Measuring Wheel for Tachometers
€ 30,00
126912
CDT-Wheel - 0.1 m Circumference Wheel
€ 35,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
