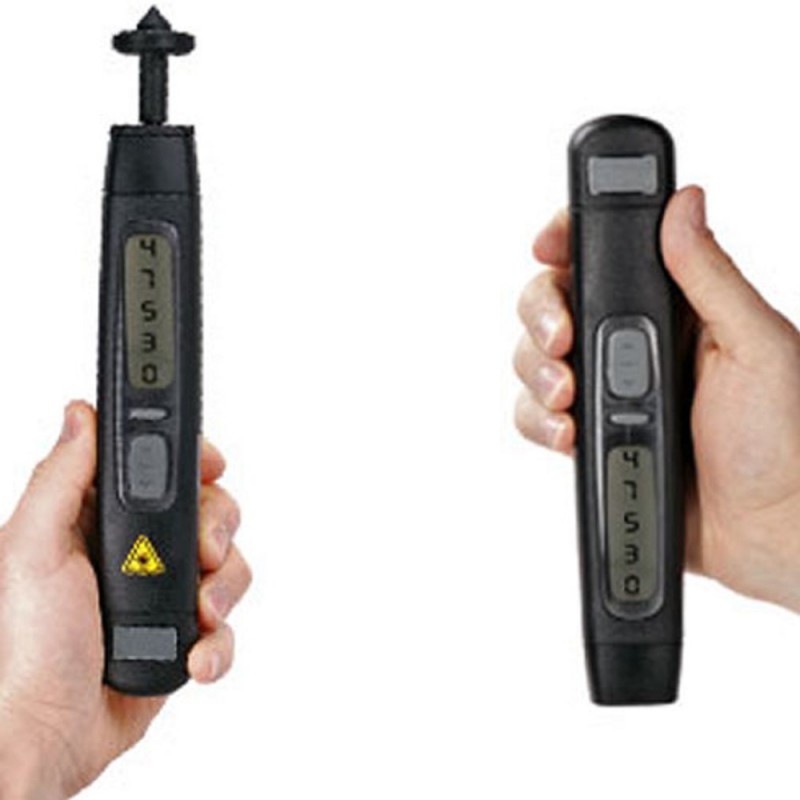

A2103 Advent Professional Optical/Contact Tachometers


The A2103 tachometers are fully featured including 5 digit LCD inverting display with legends for all functions and measurement parameters, selectable ranges for revs, metres, feet, yards per minute or per second. With additional features including maximum, average and minimum reading capture, last reading hold, count revs or length & time modes.

A2103-LSR-001 - Multi function Optical/Contact Counter, Timer & Speed Sensor with signal output facilities.
This model is a very versatile dual purpose instrument, operating both as a multirange Optical or Contact Tachometer, Counter, Timer or a self powered remote Optical Sensor for machine monitoring requirements.

A TTL type pulse output facility and camera tripod mounting bush are standard features, designed for both hand held and fixed situations for monitoring continuous and occasional speed of machines.

Signal Output features - Model A2103-LSR-001
Pulse Output facility - 5v Pulse output. Output via socket on rear of housing, supplied with 2 metre BNC output cable.

This model has these additional features:
- Pulse output facility
- Tripod bush
- Signal output cable - 2 metres free ends
- Remote on/off via cable


Specifications

Speed Range
3 to 99,999 rpm and rps
Resolution
max. 0.001 (auto)
Accuracy
0.05% +/- 1 digit
Update
0.8 sec
Capture
mode 0.1 sec
Count
0-99999 units
Time Interval
0-99999 secs (autoranging)
Memory
Holds last reading 1 minute
On Target Indicator
Yes
Low Battery Indicator
Yes
Power
4x AAA batteries
Contact Adapter
Included
Carrying Case
Included
Capture Mode
Maximum Speed
Captures maximum speed
Minimum Speed
Captures mininimum speed
Fast Timebase
0.1 seconds in Capture mode
Average
Averages over last 8 readings
Optical Model
Optical Range
50 - 1000 mm
Optical angle
+/- 45 degrees
Light
5v minilamp
Laser Model
Optical Range
50 - 2000 mm
Optical angle
+/- 80 degrees
Laser
Class II

Buy Now

Products


Product name
Price
Quantity
A2103 - Advent Tachometer
€ 267,00

A2103-LSR - Advent Laser Tachometer
€ 353,00

A2103-LSR-001 - Advent Laser Tachometer with Pulse Output
€ 539,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available , preorder 1-2 weeks , special order, request
