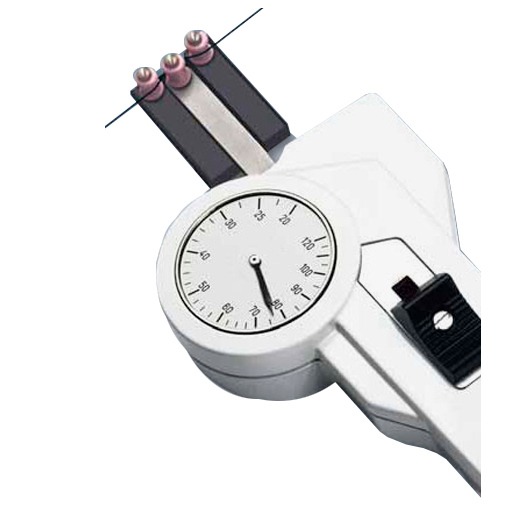

DX2FP Limited Access Tension Meter with Ceramic Pins

Made in Germany The DX2FP features ceramic pins for measuring filaments moving at high speeds. Its long, flat fingers allow use in applications where there is limited access space or where the running filaments are close together.

Measuring Head Dimensions
Head Width (X): 27 mm
Head Length (Y): 46 mm

Features

Dual flanged Non-rotating ceramic pins permit line speeds up to 6000 m/min.
27 mm measuring head with outer rollers permits a narrow access "window"
The analog display shows changing and fluctuating tensions fast and enables an optimal process adjustment
Non-rotating ceramic pins permit line speeds up to max. 6000 m/min.
Certificate of Compliance with the order 2.1 according DIN EN 10204 is included
Optionally available: Inspection Certificate 3.1 according DIN EN 10204 with calibration report

Tension Ranges

Model	Ranges	Dial Face	Measuring Head Length (Y)
DX2FP-5	10 - 50 grams	27 mm	46 mm
DX2FP-12	20 - 120 grams	27 mm	46 mm
DX2FP-20	20 - 200 grams	27 mm	46 mm
DX2FP Dial Faces

Guide Pins

Order Code	Line Speed ...m/min	Pin Material
Standard	6000	Oxide ceramic Ø 5.2 mm

Spare Pins

Order Code	Line Speed ...m/min	Pin Material
R50012	6000	Oxide ceramic

Complete Kit

The DX2FP Tension Meter is supplied as a complete kit including meter and instruction manual in a foam-fitted hard-plastic carrying case. NIST-Traceable Calibration Certificate & Test Report is optionally available.

Specifications

Accuracy	± 1% of full scale or ± 1 graduation mark on scale
Diameter of Scale	41 mm
Maximum Speed	6000 m/min
Roller Material	Oxide ceramic Ø 5.2 mm
Housing Material	Die-cast aluminum
Dimensions	225 x 90 x 44 mm (8.6" x 3.5" x 1.7")
