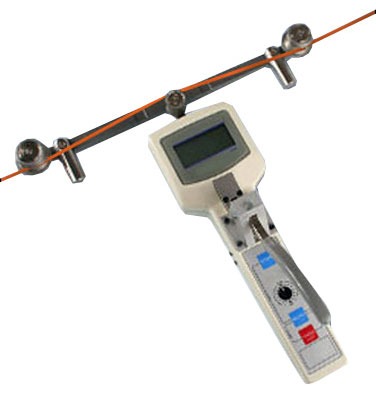

DTWB-DTWX Digital Tension Meter


Made in GermanyDTWB Standard Model
DTWX Data-Logging Model

2 Ranges Up To 50 Kg
For material diameters up to 6mm (.250")


Features
  • Large bending radius assures gentle handling of the material being measured
  • A precision strain-gauge sensing system accurately measures the force on the middle sensing roller.
  • High-Speed Measurement Captures Max, Min & Peak Tension Values
  • Certificate of Compliance with the order 2.1 according DIN EN 10204 is included
  • Optionally available: Inspection Certificate 3.1 according DIN EN 10204 with calibration report

DTWX Additional Features
  • Built-in datalogging with RS232 and 0-1 VDC Analog output
  • Memory capacity of 100 values plus min, max, peak, avg and standard deviation
  • Optional TensionView software available for batch download or continuous real-time trending

Tension Ranges
ModelRanges Resolution Meas. Head Width
DTWB-20KB
DTWX-20KB
2.00 - 20.00 Kg 0.01 Kg285 mm
DTWB-50KB
DTWX-50KB
5.00 - 50.00 Kg 0.01 Kg285 mm

Rollers
Roller Details Image Dimensions
Center Roller
Max Speed:
1000 m/min
Material: Hard-Coated Aluminum
Outer Rollers
Max Speed:
1000 m/min
Material: Hard-Coated Aluminum

Related Products

CS-DTMX Serial Cable for DTMX


  • Connects DTMX Tension Meter to a PC or printer

More details

CS-DTMX Serial Cable for DTMX

P-DTMX Portable Printer for DTMX


  • Small, portable and easy to use
  • Prints statistical data from the DTMX Digital Tension Meter

More details

P-DTMX Portable Printer for DTMX

Complete Kit
The DTWB / DTWX is supplied as a complete kit including tension meter, four (4) AA batteries and isntruction manual in rugged plastic carrying case.

Specifications
Accuracy*
± 0.5% Full Scale, ± 1 digit
(10 - 90% of Full Scale)
± 3.0% Full Scale, ± 1 digit
(Remaining portion of range)
Measuring Frequency
16 m/sec (62.5 samples/sec)
Deflection of Sensing Roller
0.2 mm (maximum)
Overload Capacity
200% of Full Scale
Display
4-Digit LCD, 12 mm high
Display Update Rate
0.5, 1.0, 2.0 or 4.0 seconds, dip-switch selectable
Standard Memory
Last, maximum, minimum and peak
Field Calibration Adjustment
± 7 steps, 1.5% per step
Battery Type
Four (4) 1.5 V AA (included)
Battery Life
20 hours, continuous use
Auto Power Off
After 2 minutes of non-use
Roller Material
Hard-Coated Aluminum
Maximum Speed
1000 meters per minute
Housing Material
Die-cast Aluminum
Weight
1.43 lbs. (650 g)
Operating Temperature
32 to 132 °F (0 to 45 °C)
Warranty
One year
