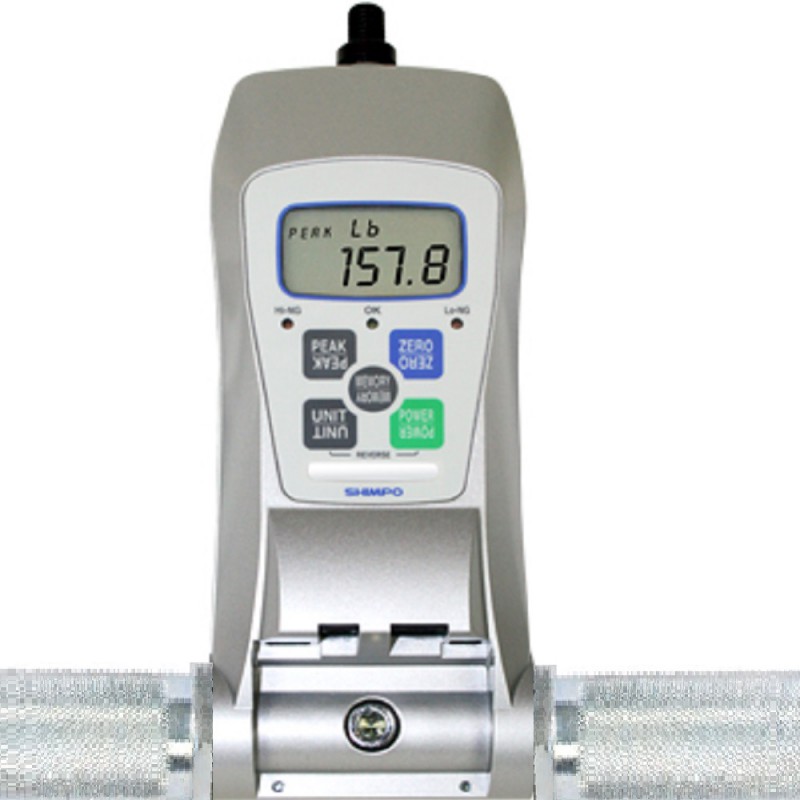

FGV-HXY High Capacity Digital Force Gauge


FGV-HXY Force Gauge with RS232C, USB & Analog Output

2 Ranges up to 450 kg
Measures Push / Pull Force

The microprocessor-controlled, digital offer the same user-friendly features of our popular FGE/FGV series, but in an extremely heavy-duty case, allowing the gauges to handle larger capacities from 0 to 450 kg.

These instruments are utilized in a variety of applications such as, incoming quality inspection, finished goods testing, R&D or almost any portable or force stand testing requirement.

The 180° reversible display combined with the adjustable force direction and dual labeled keypad enable these units to excel in both compression and tension applications in any direction. FGV models possess onboard statistical calculations provide fast access to maximum, minimum, average and standard deviation data. Models includes software and RS-232 cable allowing further data analysis on a PC. The FGV-HXY’s 1,000 point memory allows for data exporting in real time or after testing is complete. In addition, the RS-232C, USB and analog outputs provide maximum communication flexibility.

Two knurled steel handles are provided for hand operation and a hanger is included which enables each gauge to be used as a scale.


Features
  • 1000 Hz Sample Rate provides faster sampling producing better resolution and more accurate results
  • Accuracy ±0.2%
  • User-selected units of Pounds, Kilograms or Newtons
  • Heavy-duty load sensor
  • Removable hanger
  • 150% overload protection
  • Measures both compression and tension forces
  • Display can be reversed for inverted use
  • Display "real-time" or "peak" force
  • 1 Year Warranty

Tension Ranges
Model Ranges Resolution
FGV-500HXY 500 lb
250 Kg
2500 N
0.1 lb
0.1 Kg
1 N

FGV-1000HXY 1000 lb
450 Kg
5000 N
0.1 lb
0.1 Kg
1 N



Dimensions
Dimensions FGV-HXY


Specifications
Accuracy ±0.2% full scale
Resolution 0.1 lb, 0.1 Kg, 1 N
Display 4-Digit LCD, 12mm high. Reversible by the push of a button. Minus sign for tension
Display Update 0.05, 0.1, 0.2, 0.3, 0.5, 1 sec
Sampling Rate 1000 Hz
Overload Protection 150 % of full scale
Power Rechargeable Ni-Cad battery or AC through adapter/charger
Auto Power Shut-Off Yes (not active if adapter/charge is in use)
Battery Life 17 hours (when fully charged)
Recharge Time Approximately 18 hours when fully discharged
Dimensions 214 mm x 82 mm x 54.5 mm
Weight 1,2 kg
Outputs USB, RS232C & Analog Output
Overload Output One NPN OC transistor for tension, one NPN OC transistor for compression
Warranty 1 Year

Complete Kit

The FGV-HXY kit includes:

  • Force gauge,
  • AC adapter/charger,
  • 2 handles,
  • Metric thread to inch adapter
  • Attachments (flat head, hook, chisel, notched head, cone head, extension rod)
  • USB-cable
  • Foam fitted plastic carrying case


Downloads

Related Products

Cic-Force Calibration Force Gauge


  • Short turnaround
  • Exclusively in accordance with Deutscher Kalibrierdienst (DKD) working standards, class F1; calibration-no: 19026 - 07
  • Possibility to adjust and repair

More details

Cic-Force Calibration Force Gauge

Buy Now
Products

Product
Price
Quantity
FGV-500HXY - FGE-500HXY Complete Kit
€ 1.091,00
FGV-1000HXY Complete Kit
€ 1.788,00

Accessories

Product
Price
Quantity
FG-09V120UC - Spare Power Adapter for FG Force Gauges
€ 37,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available , preorder 1-2 weeks , special order, request
